Camber - Check and Adjust

Camber - Check and Adjust

1. The front suspension on vehicles up to VIN 031302 does not provide the facility to adjust the camber angle. This can only be achieved by replacing the original rear fulcrum-bolt of the lower-wishbone, with an eccentric fulcrum-bolt. The eccentric bolt should only be fitted when directed by Jaguar Technical Support. Eccentric fulcrum bolts are supplied by Jaguar Cars Ltd.

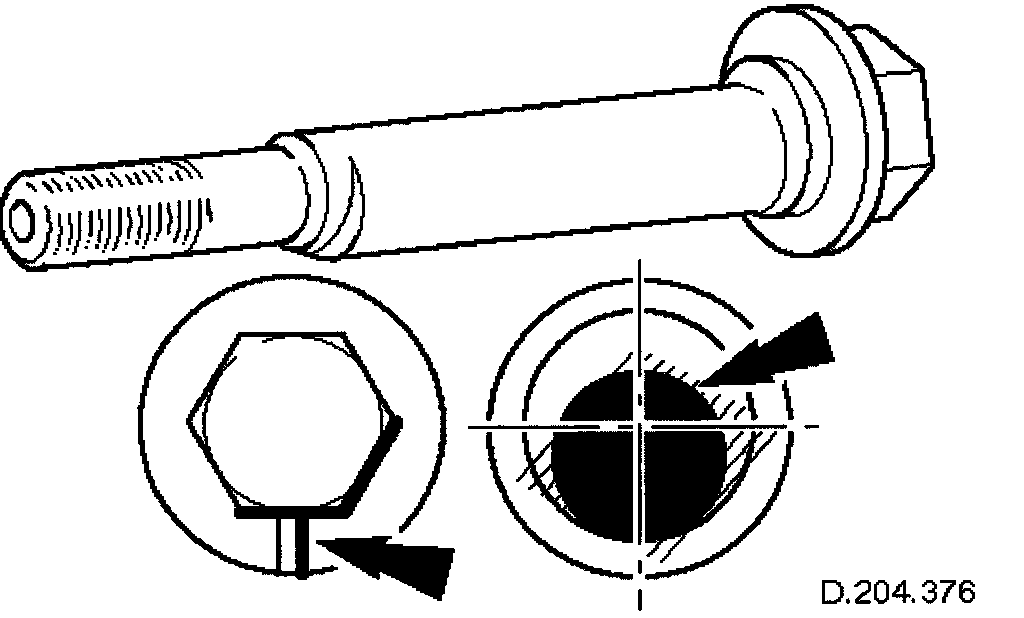

Description of Eccentric Bolt






1. Both ends of the eccentric fulcrum bolt, i.e. the threaded section and the head are concentric with the holes in the crossbeam fulcrum flanges. However, the center section of the bolt (arrowed), which retains the wishbone rear bush, is eccentric to the two ends of the bolt. When the bolt is installed; rotation of the bolt will cause the lower-wishbone rear arm to move in and out. A raised strip (arrowed) on the bolt head flange indicates the position of the bolts eccentric section, to aid positioning when adjusting the camber. The function of the eccentric bolt when it is rotated, is to increase or decrease the distance between the lower-wishbone fulcrum center at the crossbeam and the ball joint center, therefore altering the camber angle.

CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used.

NOTE: An eccentric bolt must be fitted to both front lower wishbones.

Open engine compartment and fit paintwork protection covers to fenders.

Adjust the camber angle to the correct setting.
