Shift Cable: Adjustments

SELECTOR CABLE-ADJUST

1. Disconnect the vehicle battery ground lead.
2. Position the gear selector lever to N.
3. Remove the J-gate surround.
4. Remove the console finisher veneer panel.
5. Remove the center console assembly.

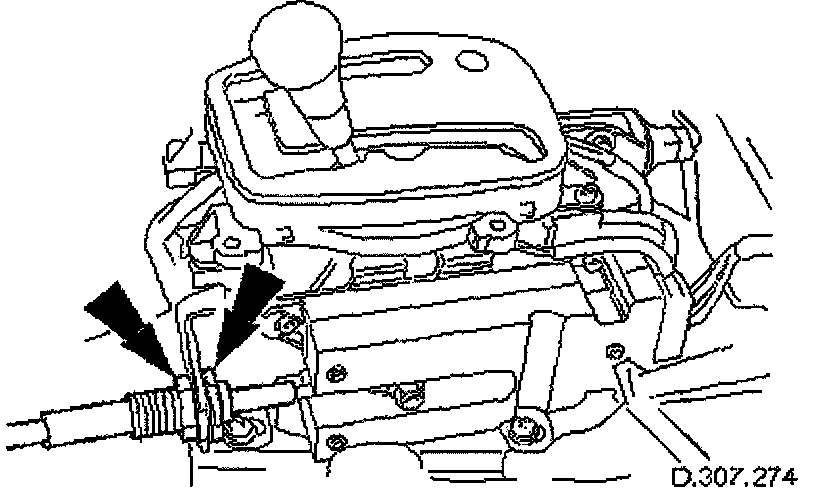

6. Slacken the selector cable locking nuts and screw them away from the abutment.
7. Raise the vehicle for access.





8. Verify that the transmission selector [ever is at position (N).
At the transmission, detach the inner cable from the selector lever.
With the lever moved fully rearward, push the lever forward two detents to achieve N.
Reconnect the inner cable.





9. NOTE: When setting the selector cable, ensure that the transmission selector does not move from the (N) position.

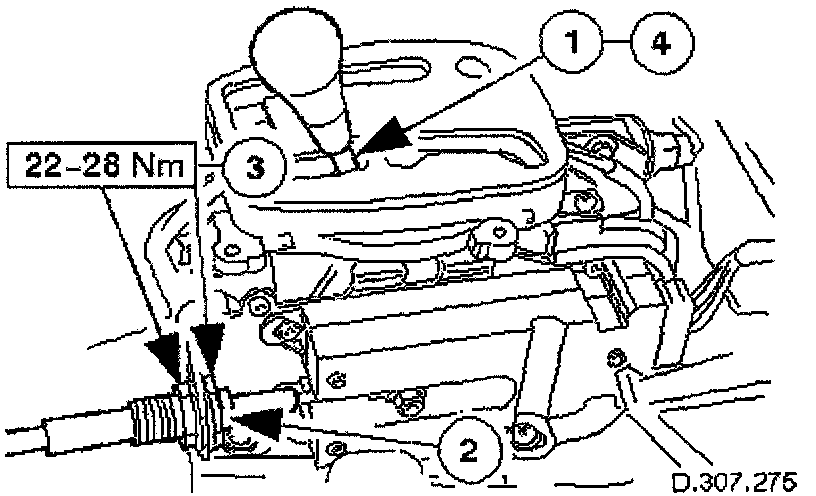

Adjust the selector cable from inside the vehicle.
Position the gear selector lever to the N detent.
Adjust the nuts to lock against the bracket without moving the set position of either the gear selector lever or the selector lever on the transmission case.
Tighten to specification.
Verify the (N) setting.
10. Further installation is the reverse of the removal procedure.
