Connector Views



Connector Pins Identification

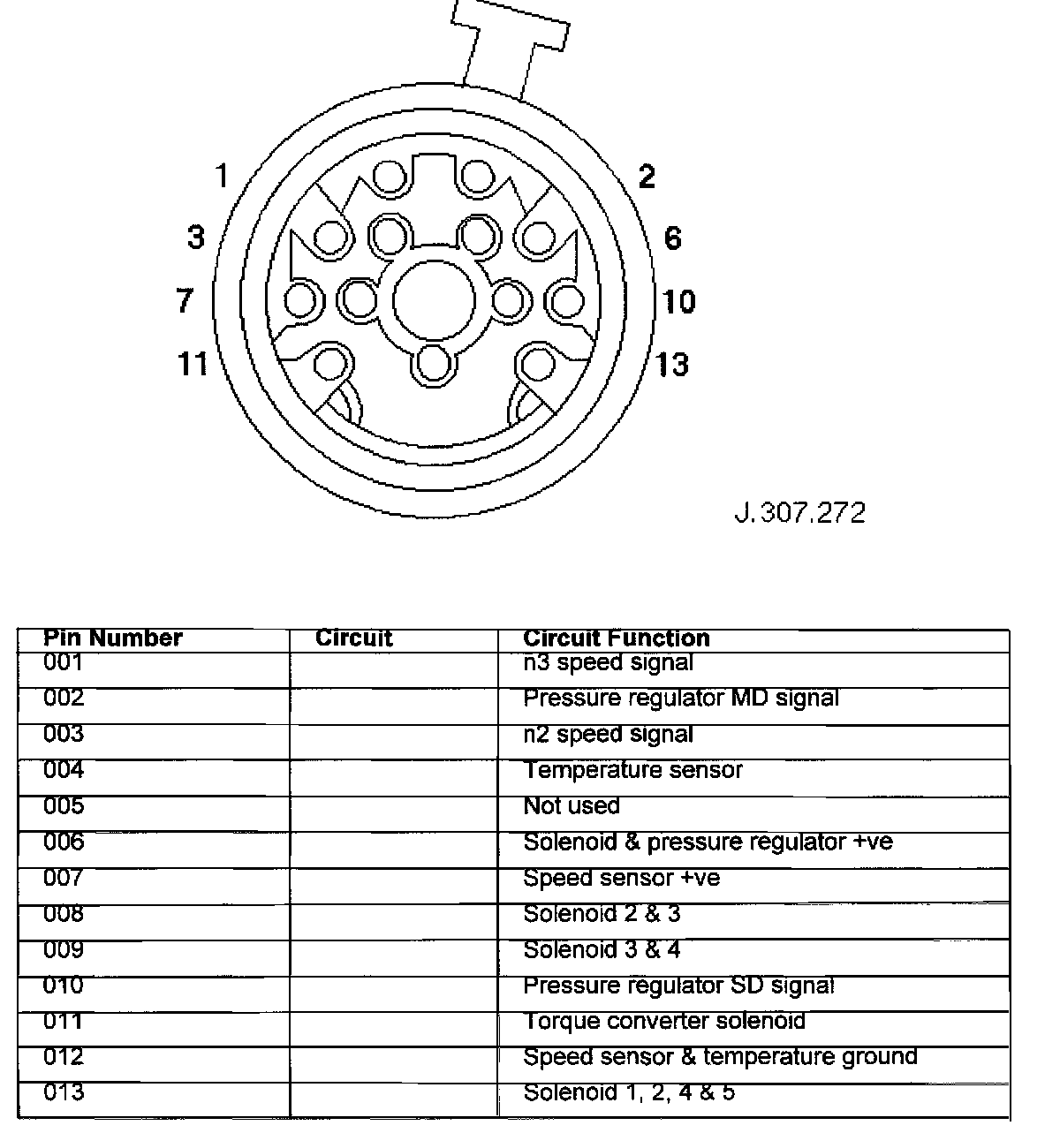

Connector Pin Identity Chart for EM061

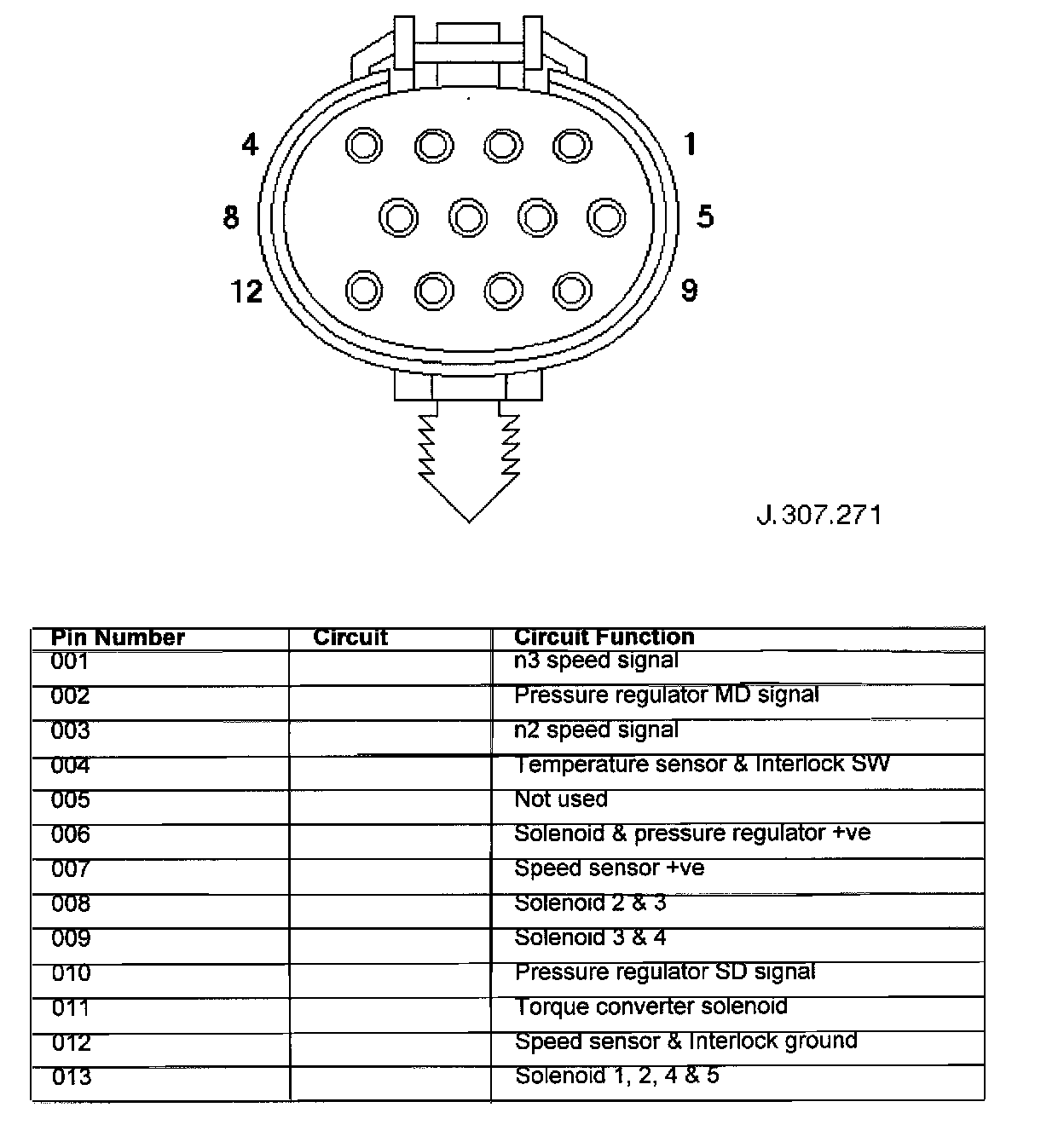

Connector Pin Identity Chart for EM062

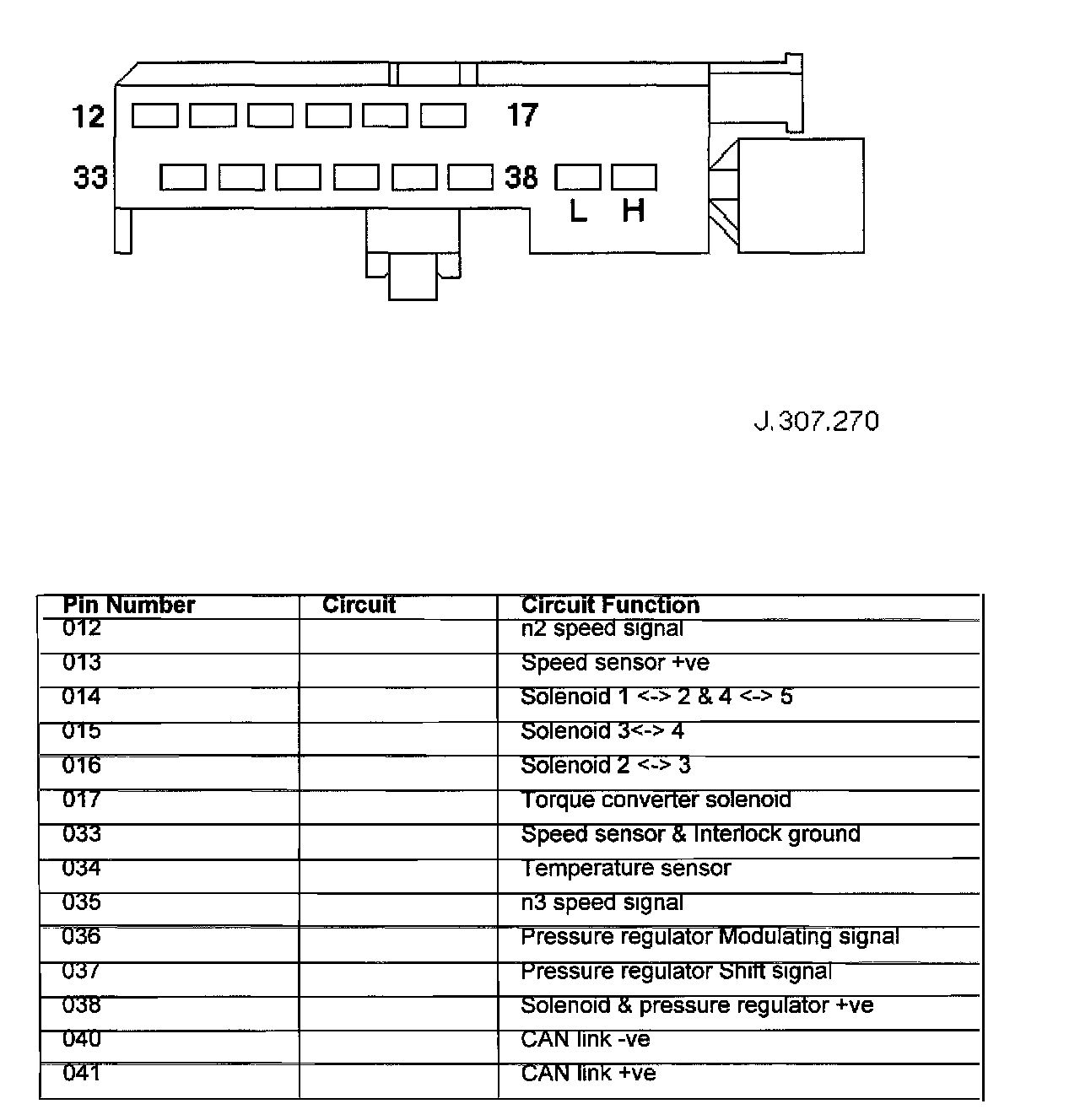

Connector Pin Identity Chart for CC008

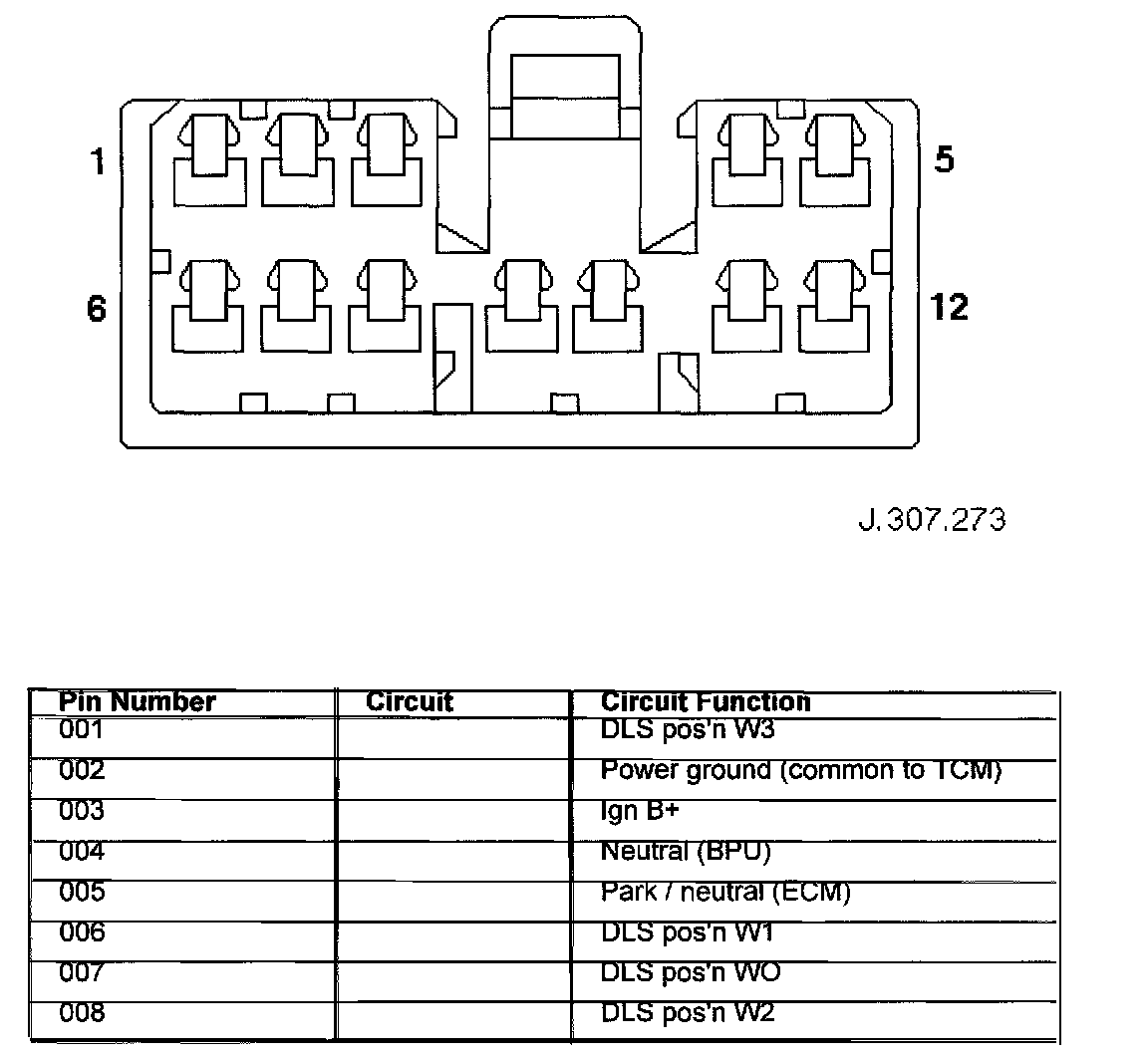

Connector Pin Identity Chart for GB001

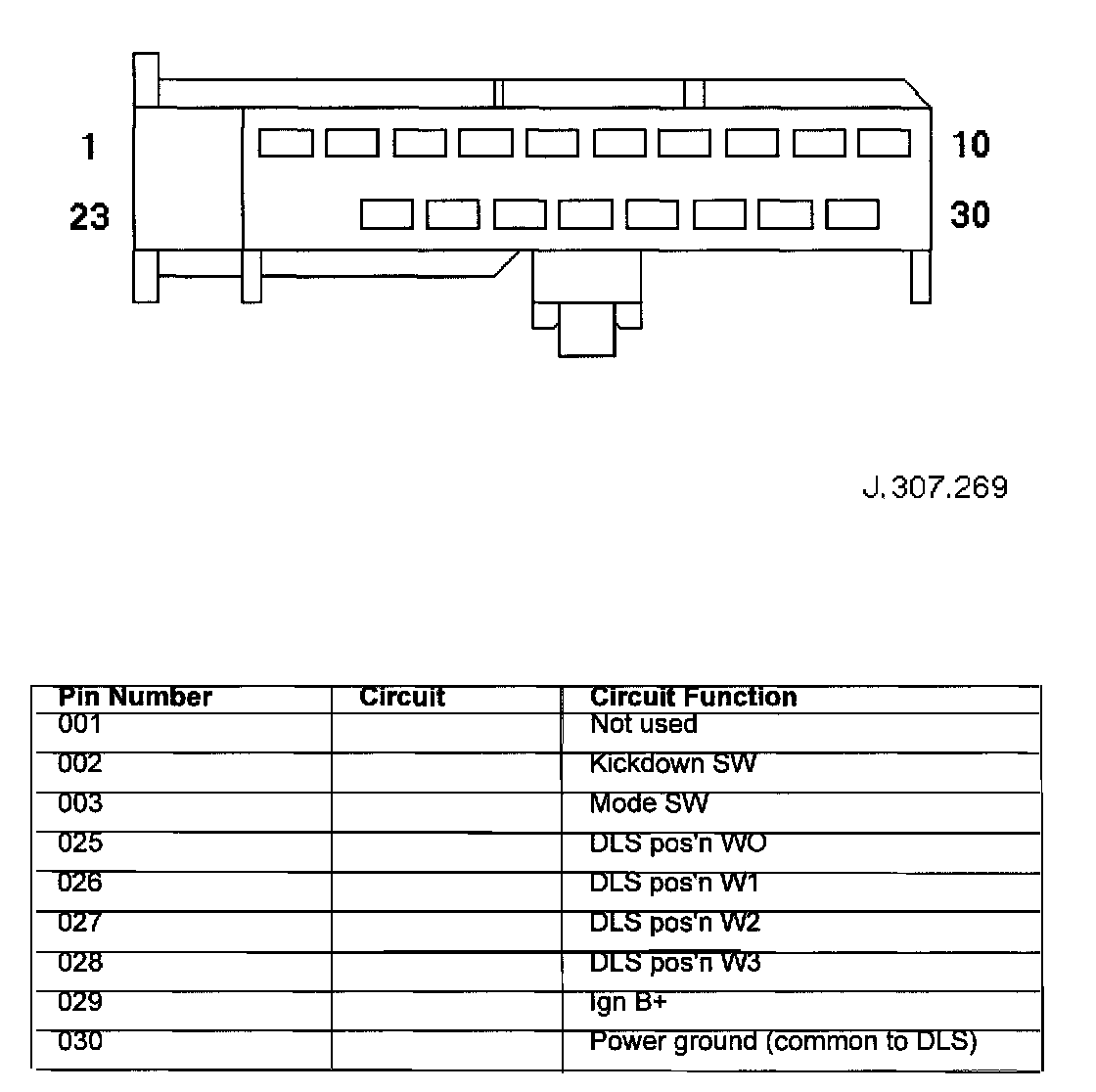

Connector Pin Identity Chart for EM044
