Shift Interlock Solenoid: Service and Repair

Gearshift Interlock Solenoid
Removal
1. Disconnect the vehicle battery ground lead.
2. Remove the J-gate surround.
3. Remove the console finisher veneer panel.

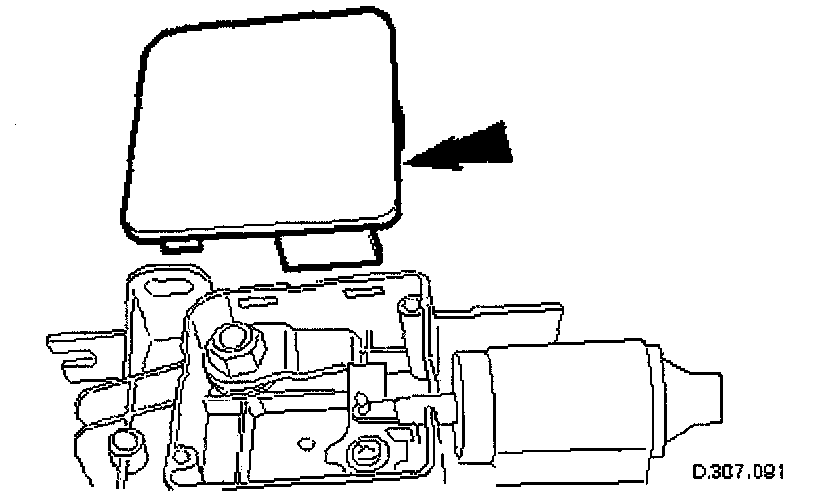

4. Remove the interlock solenoid lever cover.

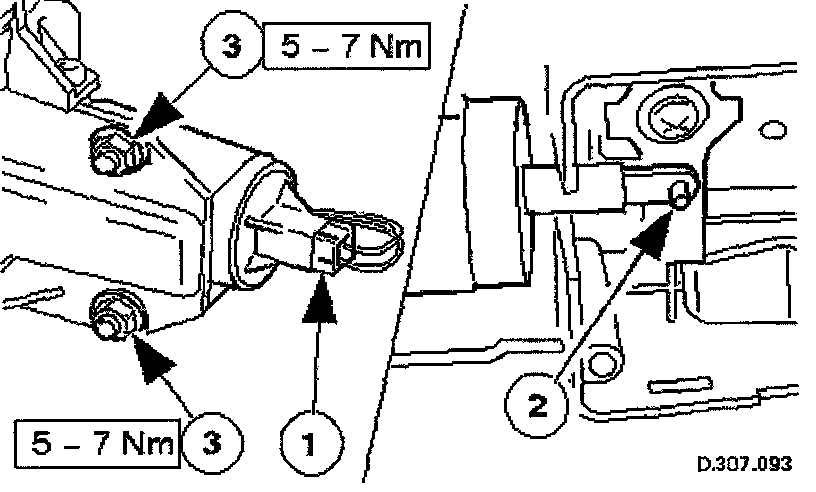

5. Remove the gearshift interlock solenoid.
Remove the (2) solenoid nuts.
Detach the solenoid from the latch pin.
Disconnect the solenoid multiplug.

Installation
1. Installation is the reverse of the removal procedure.





2. Refer to the illustration.
