Monostrut Bush - Convertible

Monostrut Bush - Convertible

Removal

1. CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used.

Remove monostrut from vehicle.

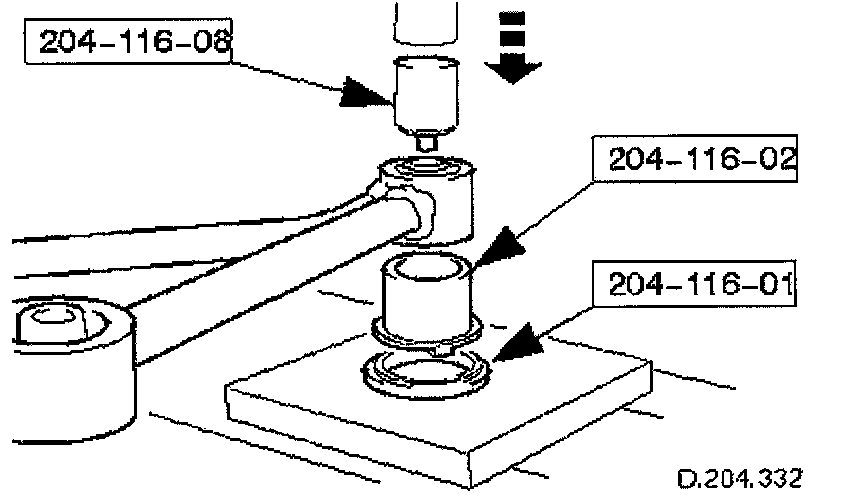

2. Using a hydraulic press remove bush from monostrut. Using special tools, support monostrut on the press bed. Position special tool on top of bush and align tool with press ram. Press bush from monostrut.
3. Clean relevant parts.

Installation

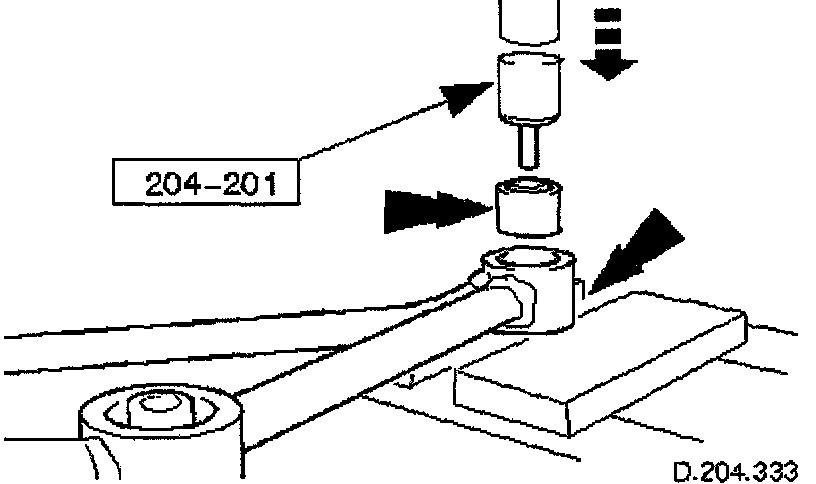

1. Using a hydraulic press, fit bush into monostrut.
Support the bush-bore of the monostrut between plates on the press-bed.
Position bush to bore.
Position special tool on top of bush and align tool with press ram.
Press bush into monostrut.
2. Fit monostrut to vehicle.
