Rear Knuckle: Service and Repair
Bearings - Hub Carrier Pivot Pin1. Release parking brake.
2. Raise the vehicle on a four-post lift.

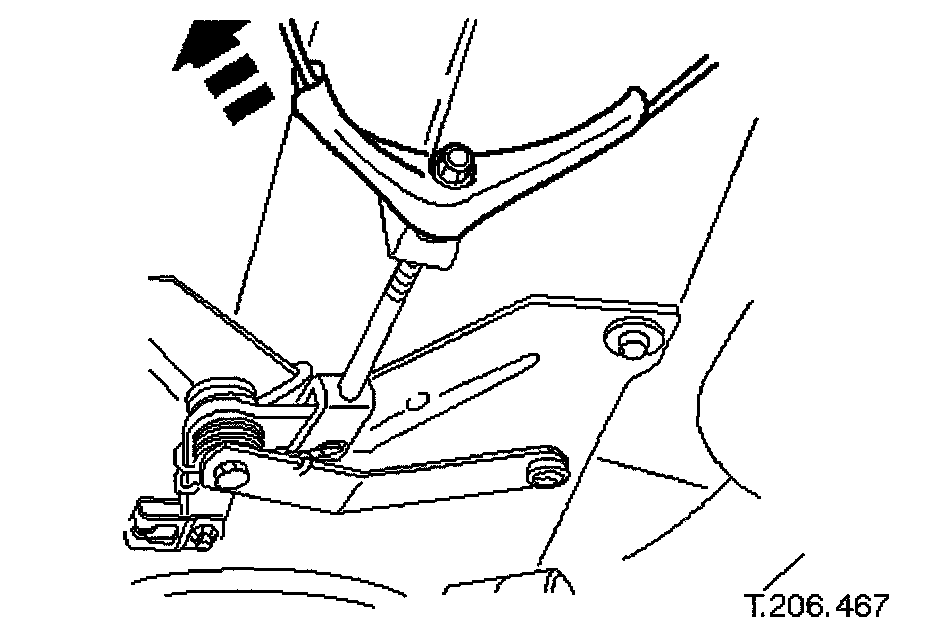

3. Fully slacken but do not remove parking brake cable adjuster nut.
4. Release appropriate side parking brake cable from connecting clip.
5. Withdraw parking brake cable through equalizer (LH side cable only).
6. Lower four-post lift.
7. Raise rear of vehicle to working height and support on stands.
8. Remove road wheel.
9. Position special tool (204-195) on hub studs and install securing nuts.
10. Slacken but do not remove hub to axle shaft securing nut.
11. Remove nuts from studs and withdraw special tool (204-195) from hub.
12. Remove rear brake disc.
13. Remove handbrake shoes.
14. Remove wheel speed sensor.
- Disconnect wheel speed sensor harness connector.
- Remove sensor bolt and withdraw sensor from hub carrier.
15. Remove wheel speed sensor harness tie strap and position harness for access.

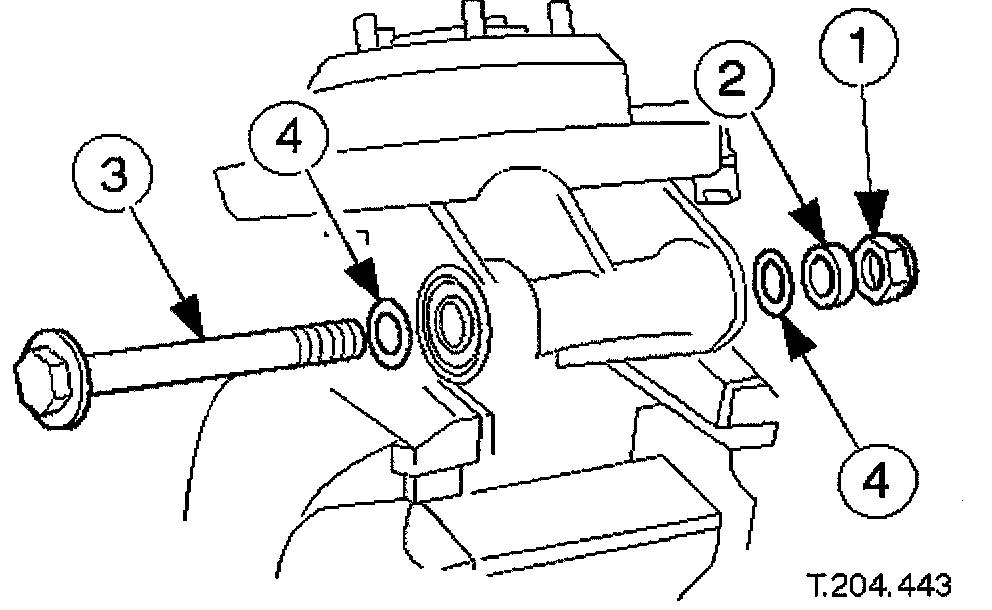

16. Remove nut and washer from pivot pin.
17. Remove hub nut and collar.
- Remove nut.
- Remove locating collar.
18. Install thread protector on axle shaft.
19. Release hub from axle shaft.

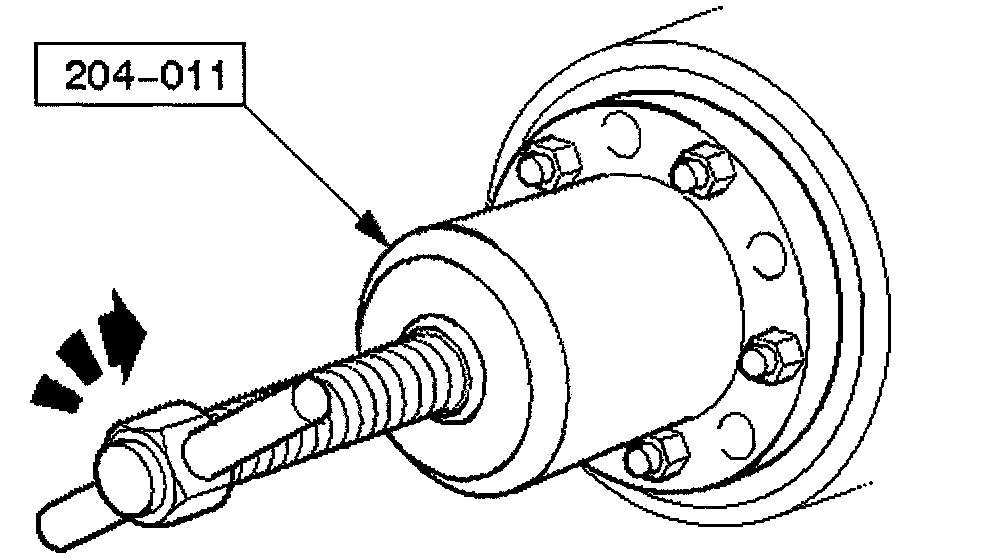

- Position hub puller 204-011 on hub studs.
- Install securing nuts.
- Progressively tighten puller center bolt to release hub from axle shaft splines.
20. Remove nuts and release puller from hub.
21. Remove thread protector from axle shaft.
22. Release handbrake cable from suspension mounting bracket.

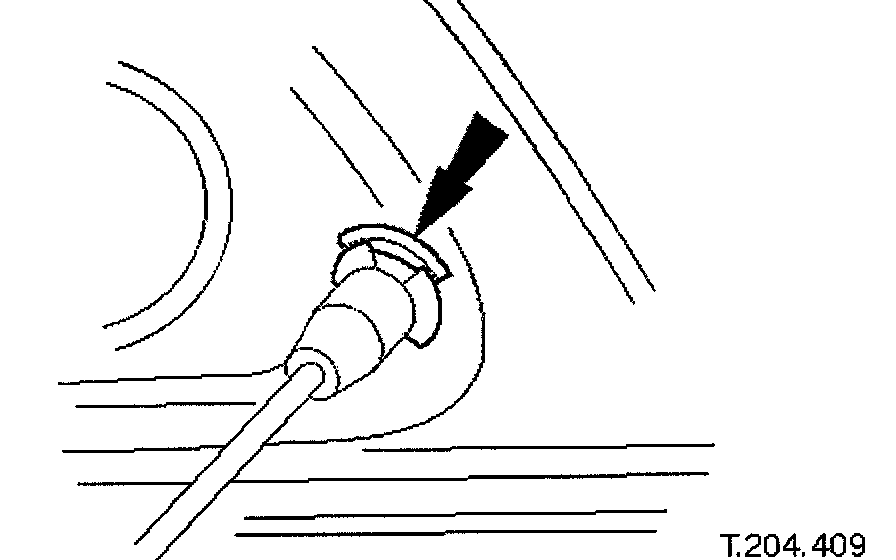

- Remove cable retaining clip.
- Draw cable through suspension mounting bracket aperture.
23. Remove parking brake cable to hub carrier grommet.
24. Remove back plate.
- Remove four screws securing back plate to hub carrier.
- Withdraw back plate complete with parking brake cable.
25. Remove hub and carrier.
- Withdraw pivot pin.
- Remove hub and carrier assembly from wishbone and axle shaft.

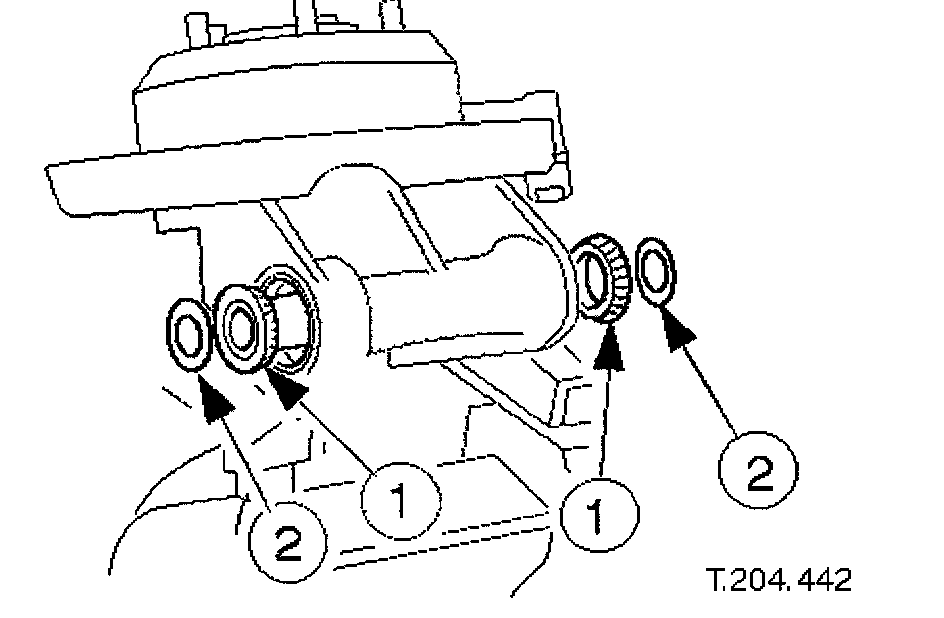

26. Remove shim from each end of pivot pin sleeve.
27. Withdraw pivot pin sleeve from hub carrier
28. Secure hub carrier in a vice.
29. Remove and discard bearings from hub carrier.
30. Remove bearing cup from hub carrier.
- Position hub carrier on a piece of wood.

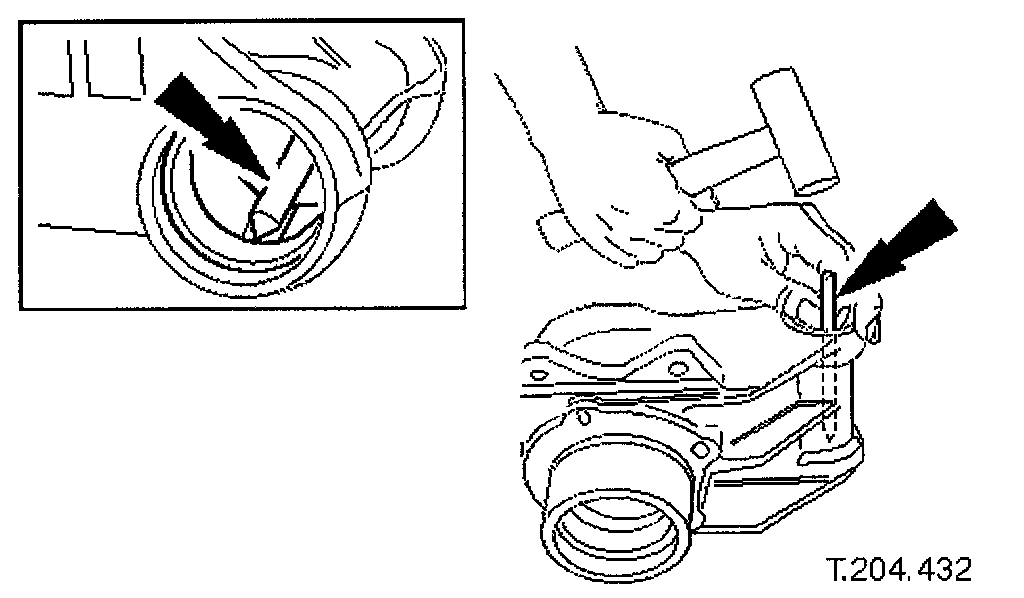

- Position a long tapered drift in housing bore recess.
- Remove bearing cup.
31. Repeat procedure to remove opposite end bearing cup and discard both cups.
32. Remove hub carrier from vice.
33. Thoroughly clean all components.
Installation

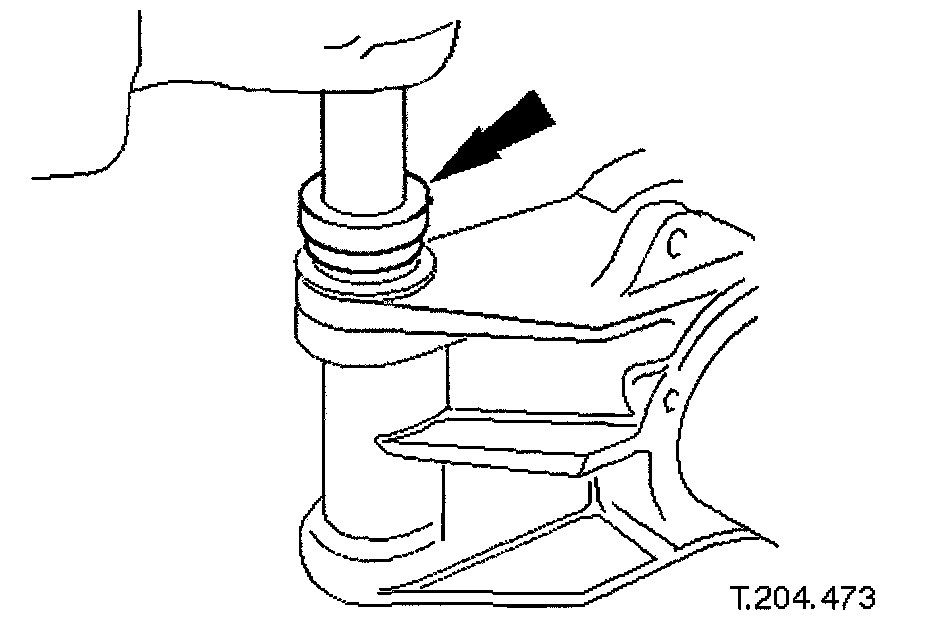

1. Using a hydraulic press, install new bearing cups in hub carrier.
- Using special tool 100-013 and adapter 204-120, align bearing cup to hub carrier.
- Align assembly to ram, and operate press to fully seat bearing cup.
- Repeat procedure to fit other bearing cup.
2. Secure hub carrier in a vice.

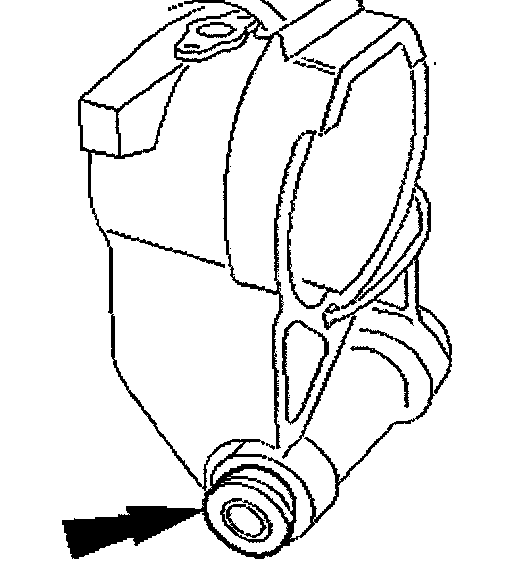

3. Install pivot pin sleeve in hub carrier.
4. Pack new pivot bearings with Shell Retinax "A" grease.
5. Install pivot bearings in hub carrier.
- Slide bearing over pivot sleeve and seat in bearing cup.
- Install a 3.905 mm (minimum size) shim to sleeve.
- Repeat procedure to install opposite end bearing and shim
6. Press pivot pin sleeve into hub carrier.

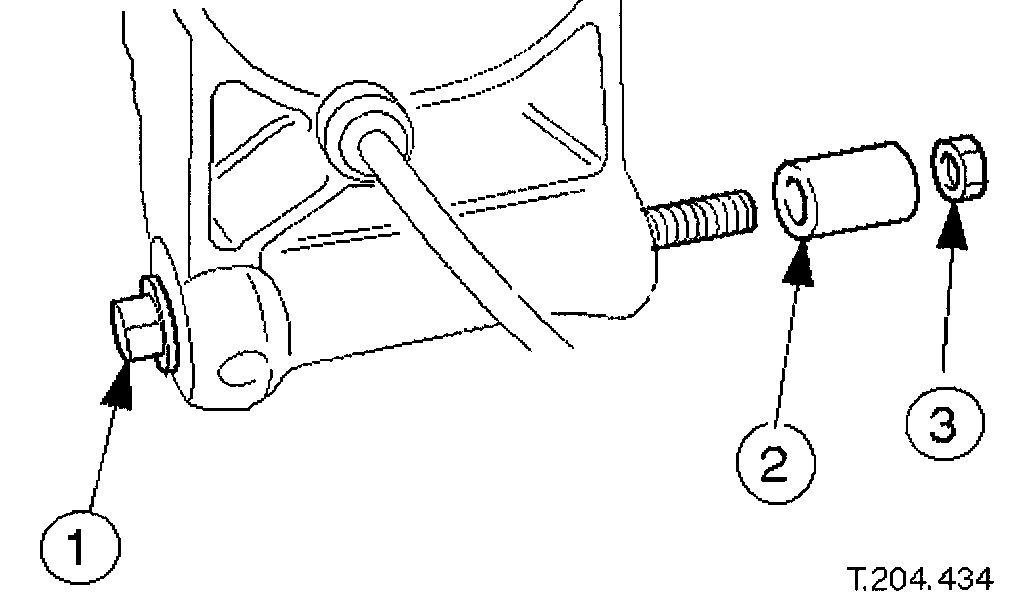

- Install pivot pin in sleeve.
- Position a piece of tube over part of pin thread.
- Install pivot pin nut and tighten until shims fully seat on pivot sleeve.
- Remove nut and tube.
7. Measure bearing preload.
- Position a flat washer to abut shim.
- Install pivot pin nut.
- Using a feeler gauge measure and record gap between shim and washer.
8. Remove shims from hub carrier.
- Remove nut.
- Remove washer.
- Remove pivot pin.
- Remove both shims from pivot sleeve.
9. Using 3.905 mm shim and preload measurements as a datum, select two new shims of equal thickness to provide a preload measurement of 0.076 mm.
10. Position shims on pivot sleeve.
11. Press selected shims into hub carrier.
- Install pivot pin in sleeve.
- Position piece of tube over part of pivot pin thread.
- Install nut to fully seat shims on sleeve.
12. Remove nut, tube and pivot pin from hub carrier.
13. Position hub carrier assembly on wishbone.
- Ensuring shims remain positioned on sleeve, position hub carrier assembly on wishbone.
14. Secure hub carrier to wishbone.
- Install pivot pin.
- Install pivot pin washer
- Install but do not tighten pivot pin nut.
15. Install hub on axle shaft.
- Route handbrake cable through hub carrier.
- Apply Loctite 270 to axle shaft splines and thread, and fully seat hub on shaft.
16. Install locating collar and hub nut on axle shaft, but DO NOT tighten hub nut.

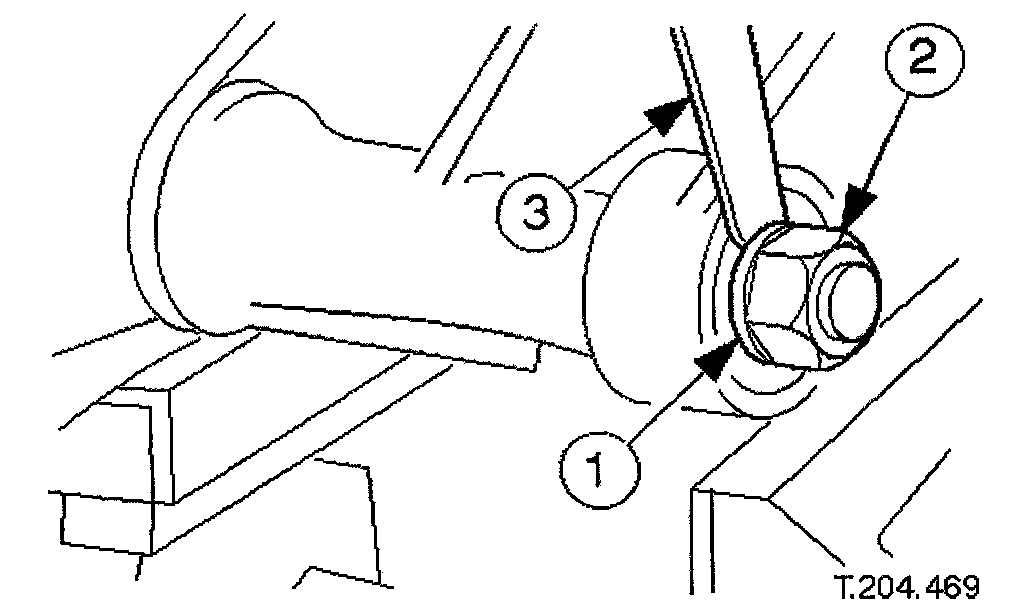

17. Tighten pivot pin nut to 90-110 Nm.
18. Install wheel speed sensor on hub carrier.
- Position sensor on hub carrier and install and tighten bolt to 7-10 Nm.
- Connect wheel speed sensor harness to sensor.
19. Using new tie strap, secure wheel speed sensor harness to hub carrier.
20. Install parking brake shoes.
21. Install brake disc.
22. Install special tool (204-195) on studs and install nuts.
23. Tighten hub nut to 304-336 Nm.
24. Remove nuts and withdraw special tool (204-195) from hub studs.
25. Install rear wheel.
26. Raise rear of vehicle, remove stands and lower vehicle.
27. Raise vehicle on four-post lift.
28. Route parking brake cable through equalizer (LH side cable only).
29. Install cable in connecting clip.
30. Adjust parking brake cable.
31. Lower four-post lift.
32. Apply parking brake.
