Column Switchgear Mounting Bracket

Removal
1. Remove the underscuttle
2. Remove the steering column lower cowl
3. Remove the steering column upper cowl
4. Remove the battery cover.







5. WARNING:
WAIT AT LEAST ONE MINUTE BEFORE STARTING WORK, BECAUSE THE AIR BAG IS EQUIPPED WITH A BACK-UP POWER SOURCE AND MAY BE INADVERTENTLY DEPLOYED.


Disconnect the battery ground cable.

6. Remove the driver's air bag module Procedures

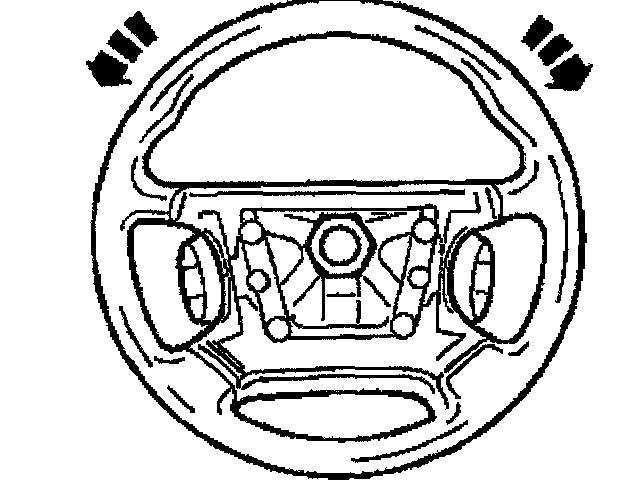

7. Ensure that the steering is centered.
8. Remove the steering wheel

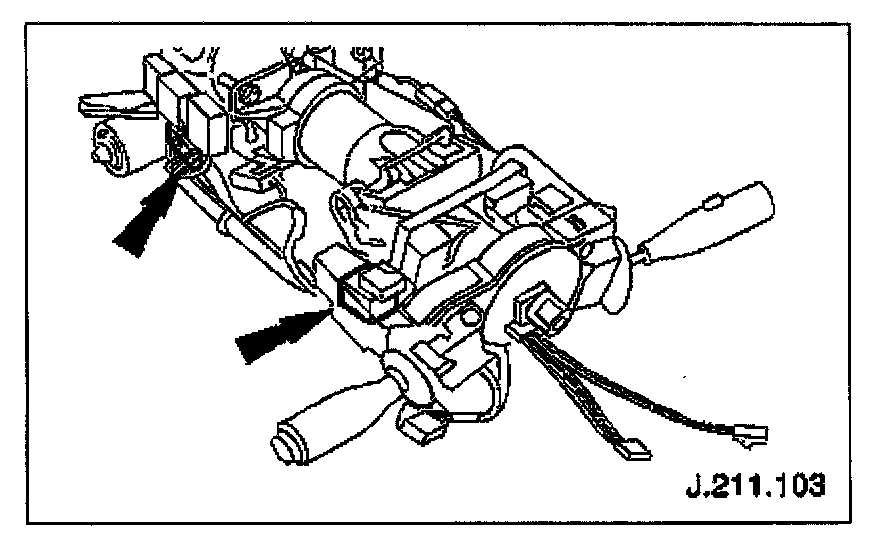

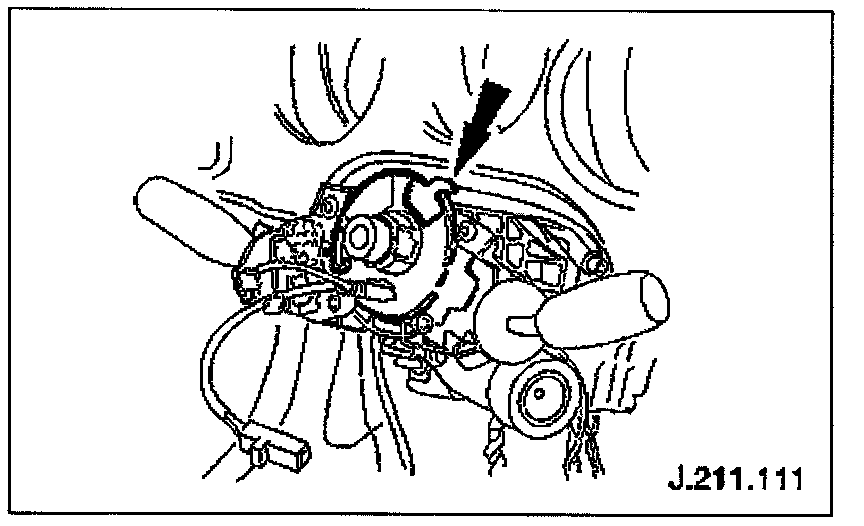

9. Disconnect the cancellation module multiplugs.

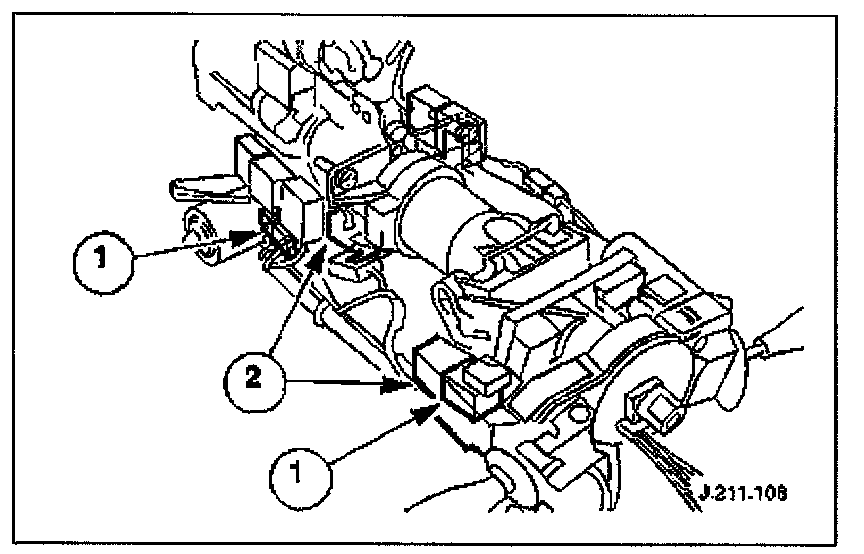

10. Remove the wiper/washer switch multiplug.
Release the multiplug from the mounting bracket.
Disconnect the multiplug.

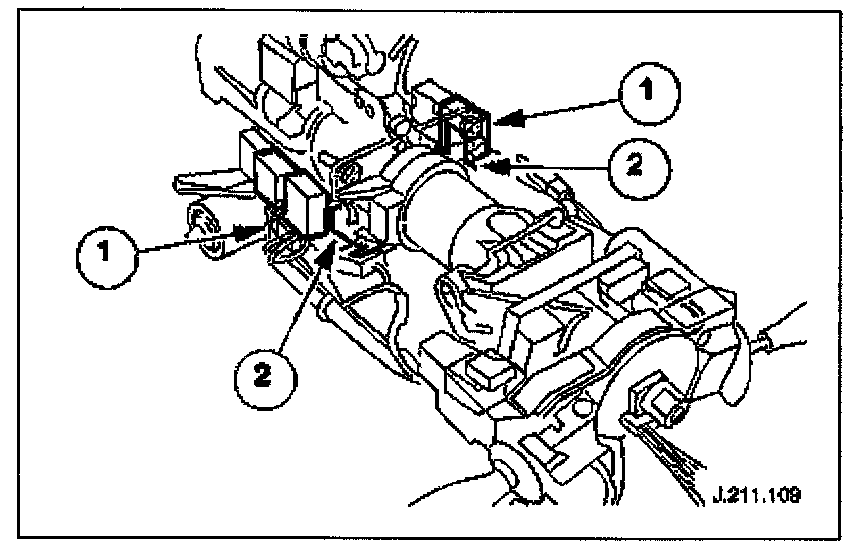

11. Remove the flasher/headlamp switch multiplug.
Release the multiplug from the mounting bracket.
Disconnect the multiplug.

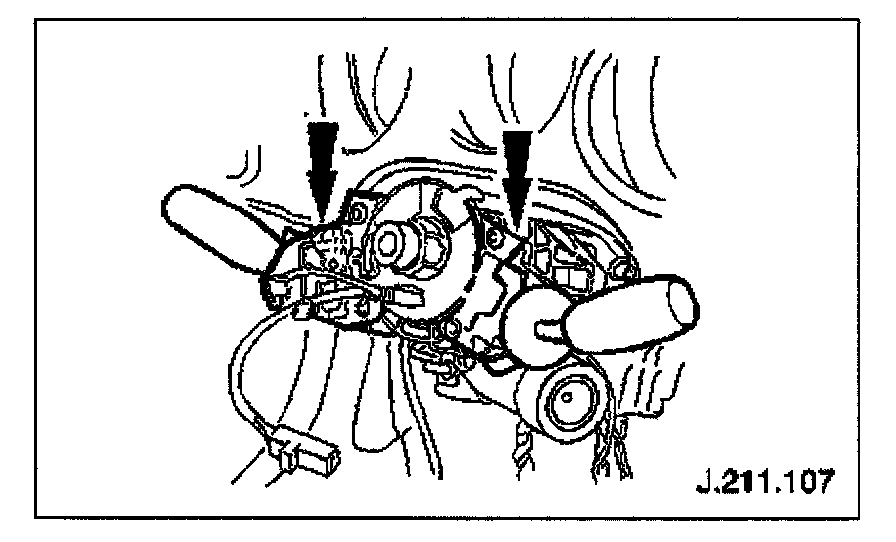

12. Remove the switch assemblies/cancellation module.
Unscrew the switchgear securing screws.
Remove the switchgear assembly from the mounting bracket.







13. Remove the switch assemblies from the cancellation module and mounting bracket.







14. Remove the cancellation module from the mounting bracket.


Installation







1. Install and align the cancellation module to the column mounting bracket.

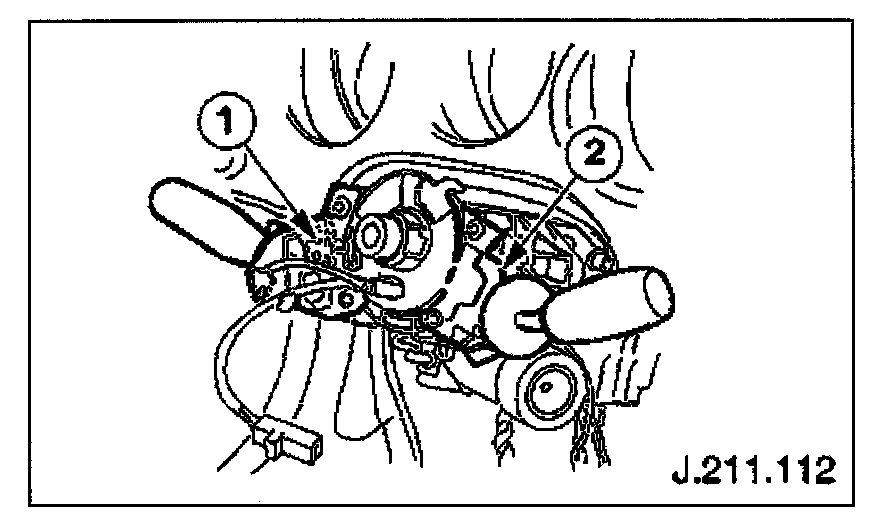

2. Install the flasher switch and washer switch assemblies to the module mounting bracket.
Install and align the flasher switch assembly.
Install and align the washer switch assembly.

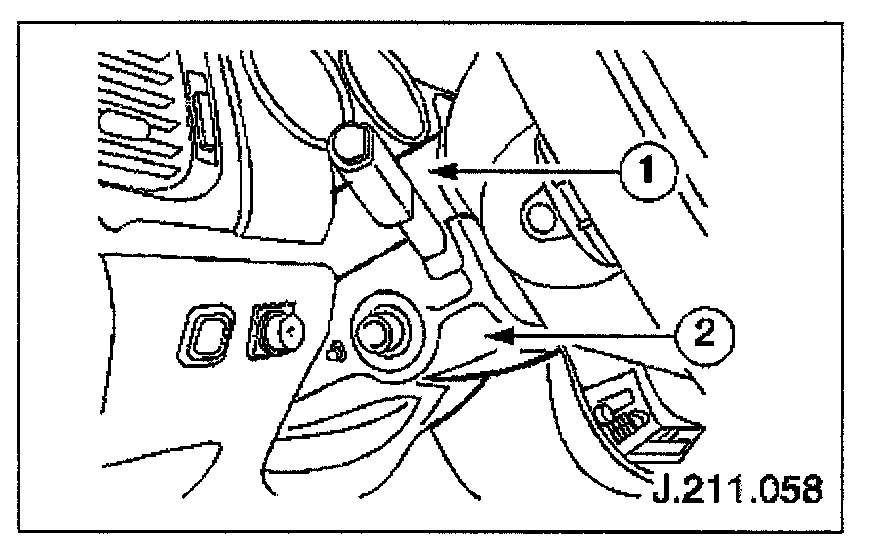

3. Install switchgear assembly to the steering column.
Install and align the switchgear assembly to the steering column.
Install and tighten the switchgear and cancellation module securing bolts.

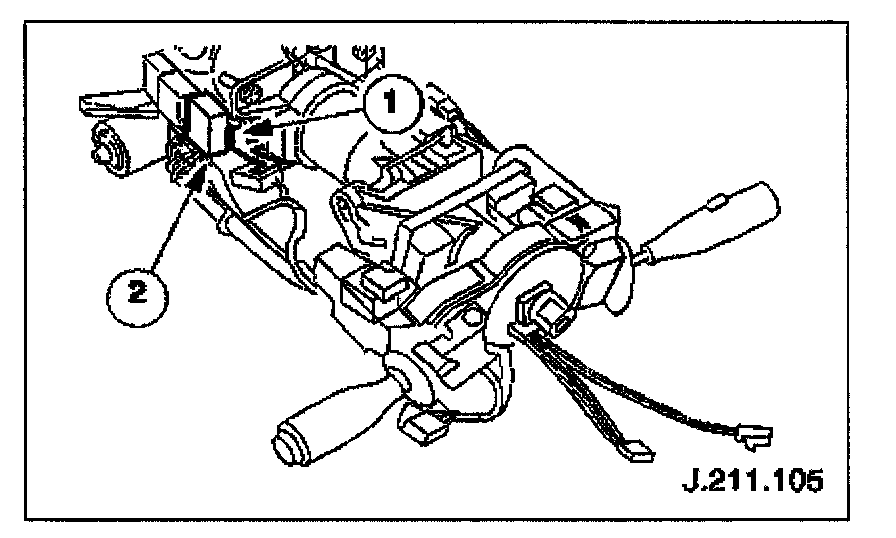

4. Reconnect and locate the cancellation module harness multiplugs.
Reconnect the cancellation module harness multiplugs.
Locate the multiplugs to the mounting bracket.

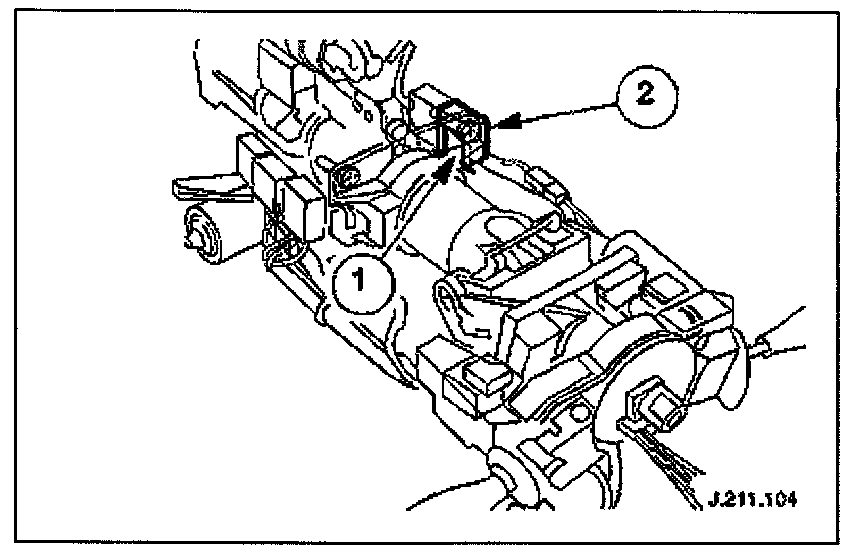

5. Reconnect and locate the switch assembly multiplugs.
Reconnect the switch assembly harness multiplug.
Locate the multiplug to the mounting bracket.








6. Install the steering wheel to the column in the correct orientation
7. Install the driver's air bag module Procedures







8. Reconnect the battery ground cable.
9. Install the battery cover.







10. Install the steering column upper and lower cowls.
Install the steering column upper cowl
Install the steering column lower cowl
11. Install the underscuttle
