Power Steering Pump: Service and Repair

Power Steering Pump

Removal
1. Open engine compartment and fit paintwork protection covers.

2. Set engine compartment cover to service access position.





3. Disconnect battery ground cable.

4. Loosen, but do not remove bolts which secure drive pulley to power steering pump.

5. Remove front end accessory drive belt.

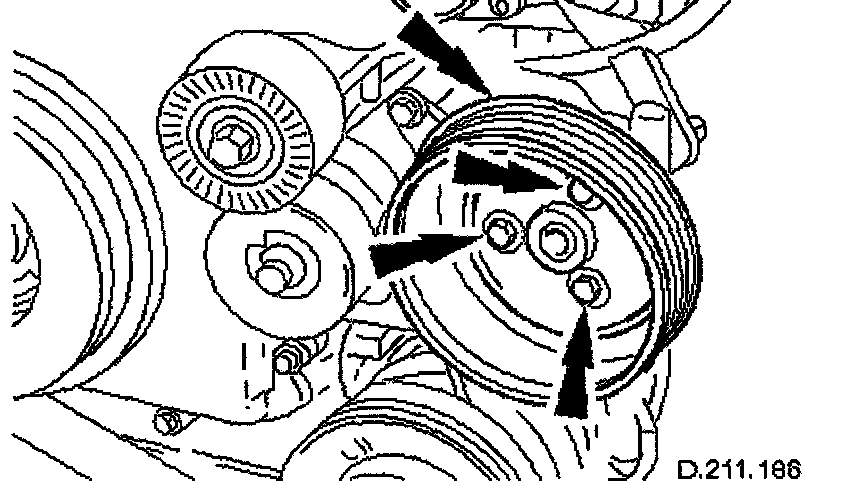

6. Remove pulley from power steering pump.
- Remove bolts.
- Remove pulley.

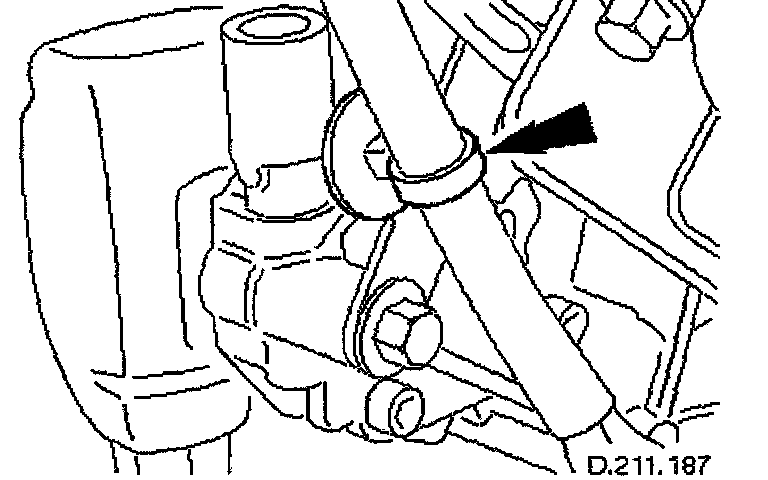

7. Release harness retaining clip from engine oil dipstick-tube bracket, reposition harness.





8. Disconnect power steering pump inlet hose and drain the fluid.
- Place a drain pan under vehicle.
- Release clip.
- Disconnect hose and drain fluid.
- Fit blanking plugs to pump and hose.

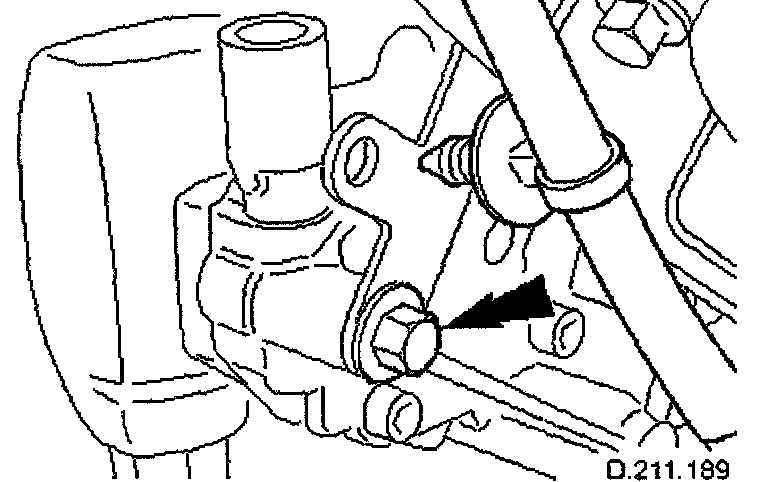

9. Remove bolt from dipstick-tube retaining bracket.
