Power Steering Pump: Description and Operation

Power Assisted Steering Pump

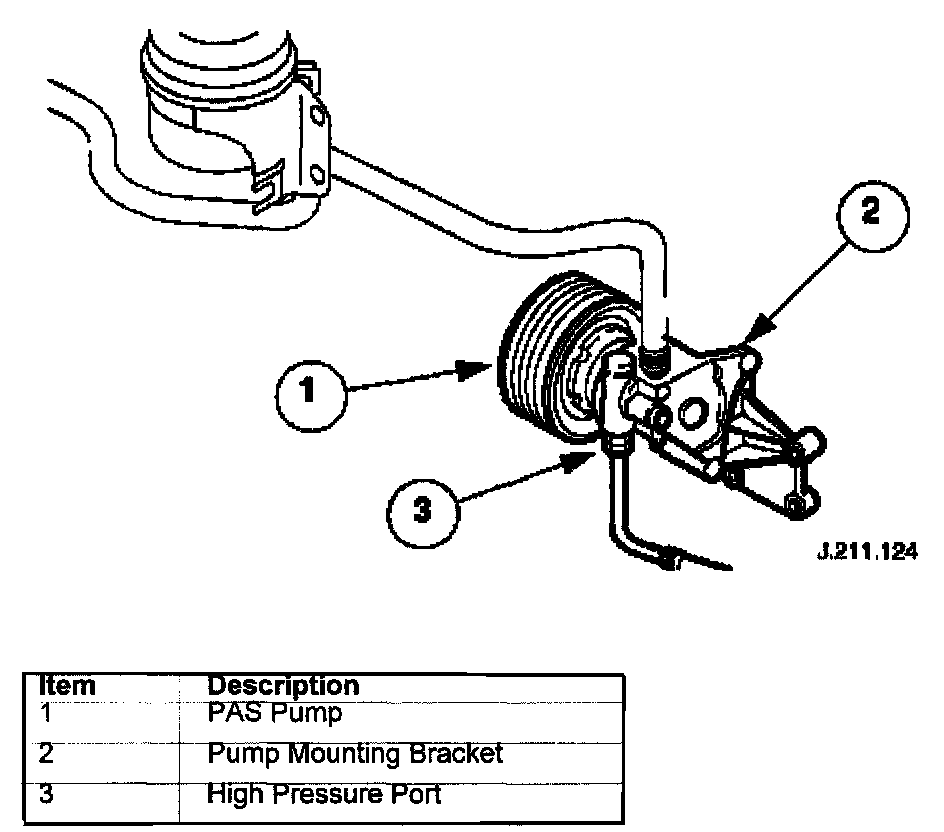

Steering Pump Mounting

The power assisted steering pump:
- Is mounted on a bracket installed on the front of the engine.
- Is of the roller vane type.
- Will provide 110 Bar fluid pressure.
- Is belt driven from the engine crankshaft.
- Its function is to provide hydraulic pressure for the PAS system.
- The pump is not serviceable and should be renewed complete with front bracket and high pressure port.
