Hose - Reservoir to Pump

Hose - Reservoir to Pump

Removal

1. Open engine compartment and fit paintwork protection covers.





2. Place a drain pan under the pump.

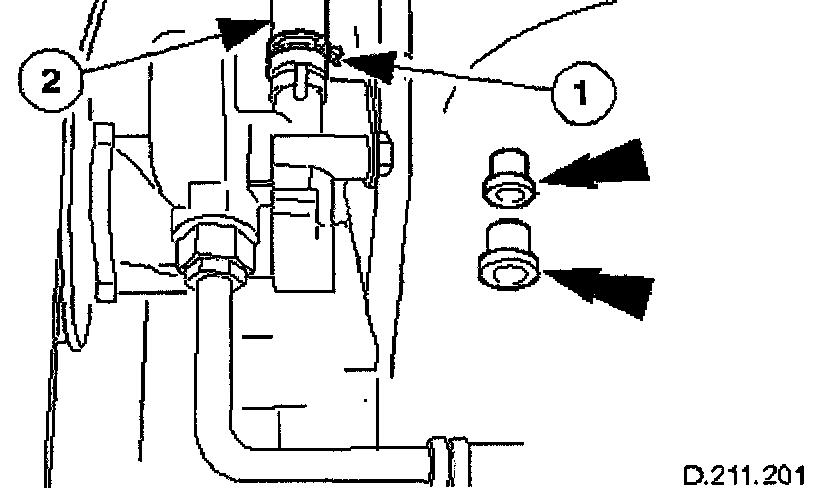

3. Disconnect hose from pump.
- Release clip.
- Disconnect hose and allow it to drain.
- Fit blanking plugs to pump and hose.





4. Disconnect hose from reservoir.
- Release clip.
- Disconnect hose.
- Fit blanking plugs to reservoir stub pipe and hose.
- Remove clips from hose.

5. Remove drain pan and discard fluid.

Installation

1. Installation is reverse of removal procedure.
- Refill with new fluid and bleed air from the system.
