Quick-Fit Connector

Quick-fit Connector





Connector Details

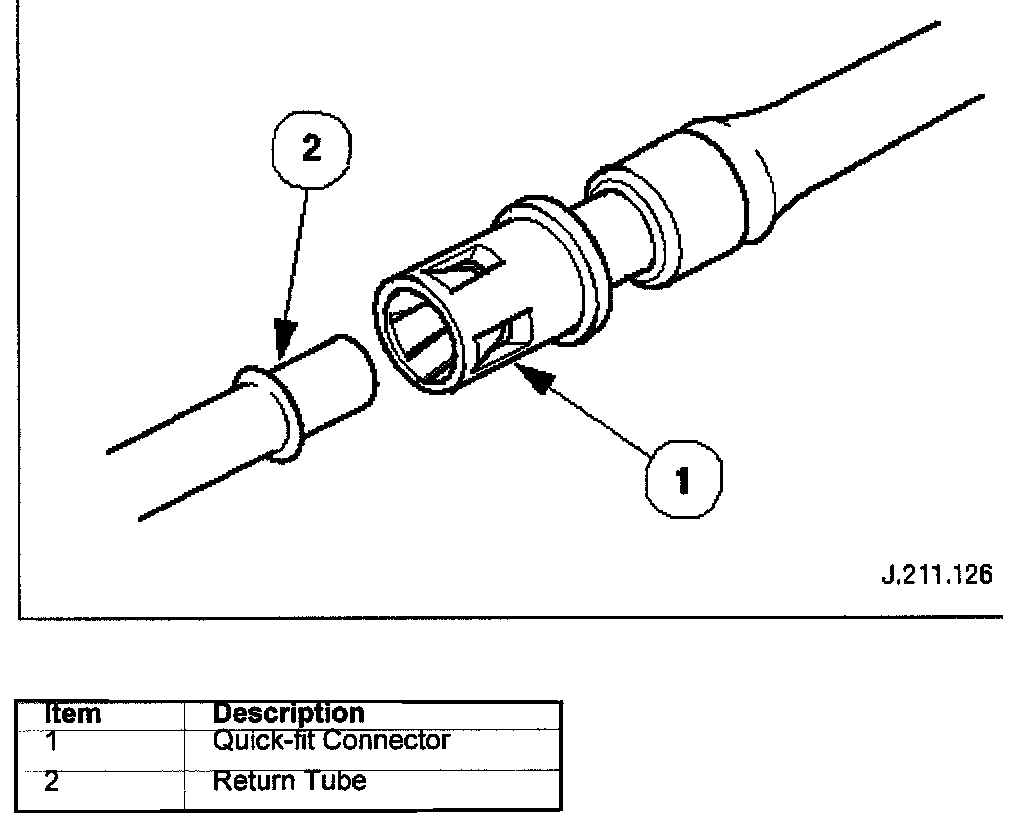

A quick-fit connector with double O-ring seals is incorporated in the return hose and is clipped to the right hand chassis side member.

The hoses and pipework are used to connect the system components together to form a functional system.

All hoses and pipework should be renewed as complete assemblies.

The quick-fit connector O-rings are not serviceable.

All hoses and pipework are designed to reduce system noise.

A special tool is necessary to disconnect the quick-fit connector.
