Power Steering Fluid Cooler: Locations

Fluid Cooler

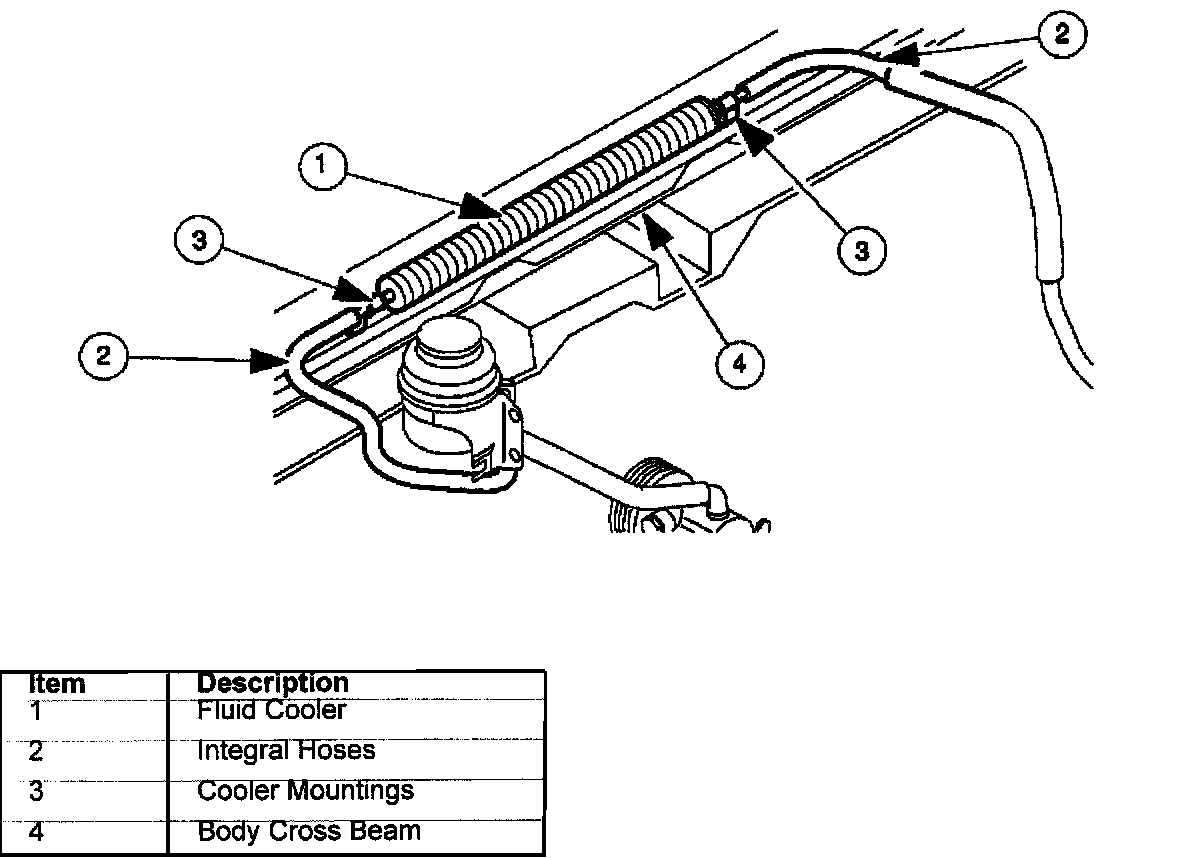

Fluid Cooler Location
The fluid cooler is installed on the body front cross-member:
- It is of the wire bound tube type.
- Is rubber mounted on the body front cross beam.
- Is integral with the return hose.
- Its function is to cool the fluid as it returns to the reservoir.
