Steering: Locations

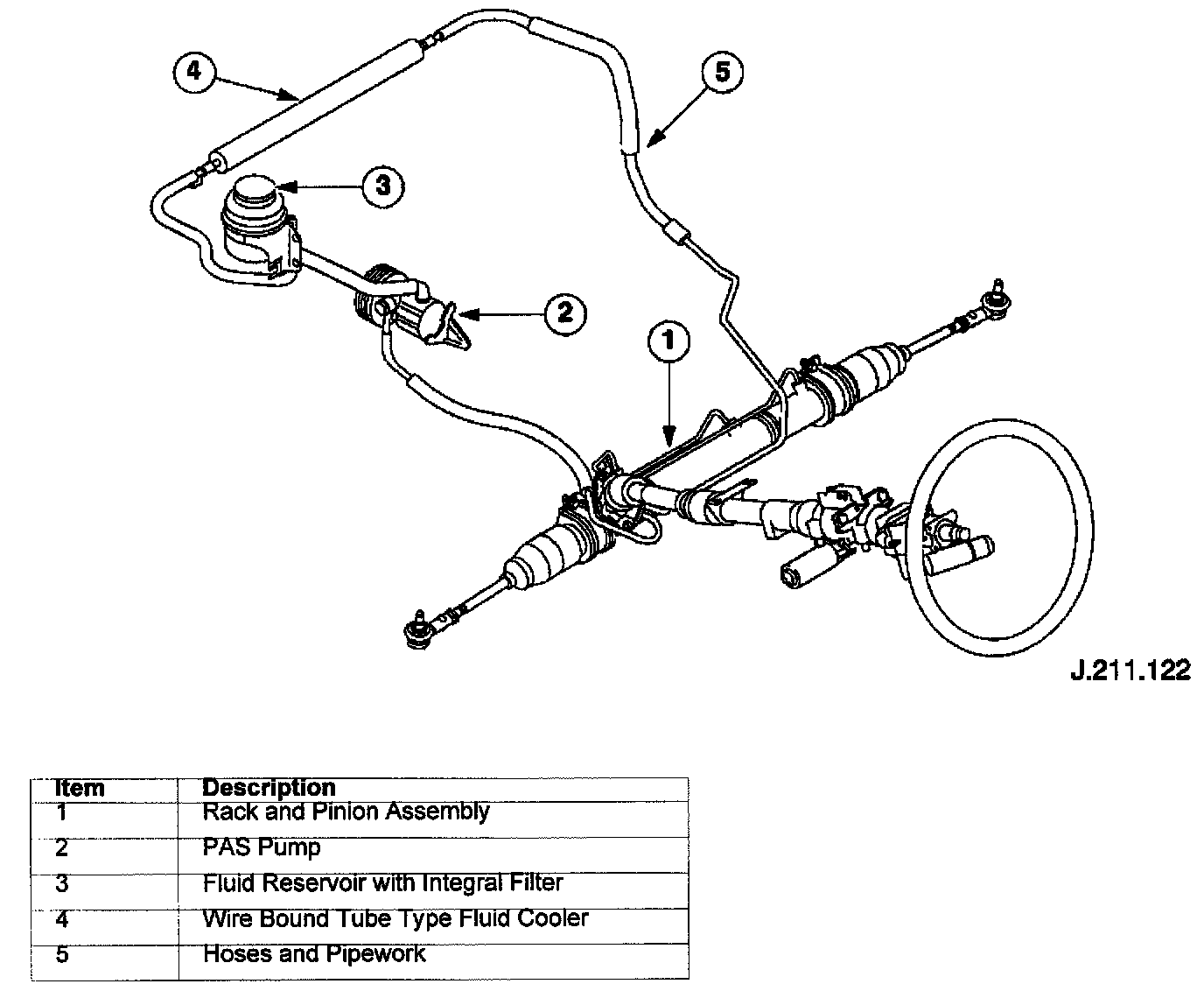

Power Assisted Steering System Components





Component Relationship

The power assisted steering system consists of:
- Rack and pinion assembly.
- Power assisted steering pump.
- Fluid reservoir.
- Fluid cooler.
- Associated hoses and pipework.

NOTE: Absolute cleanliness must be observed when replenishing the fluid or dismantling any part of the system.

If any major component is renewed:
- A new fluid reservoir, with integral filter, must be fitted.
- New fluid from a sealed container must be used.
