Starter Motor: Testing and Inspection

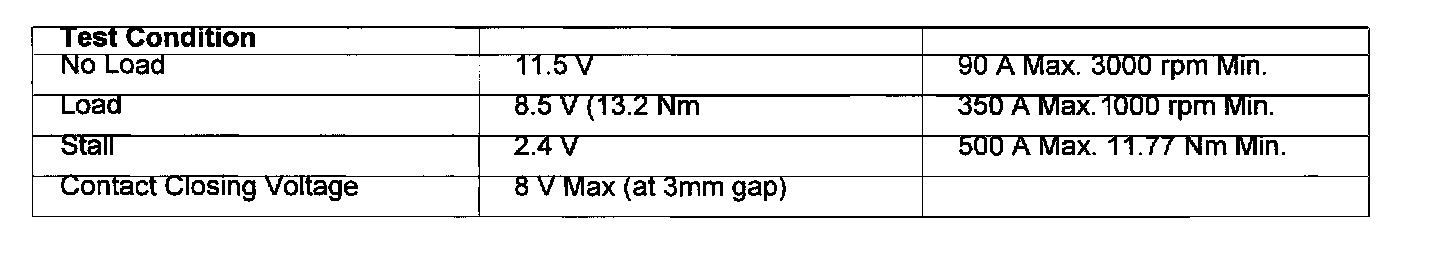

Starter Motor Bench Test Data
The following data is provided for those dealers with suitable equipment available to perform the stated tests.

When performing the stall test, it is most important that the motor is stalled only for long enough to read the stalled torque output and current flow indicated on the test equipment, or permanent damage could occur to the starter motor.
