Starting System Description

Manufacturer - NipponDenso.
Type- RA1.4.
Weight -3.75 kg (8.27 lb)
Output- 1.4 kW
Rated Time - 30 seconds
Rotation - Clockwise, viewed from pinion end

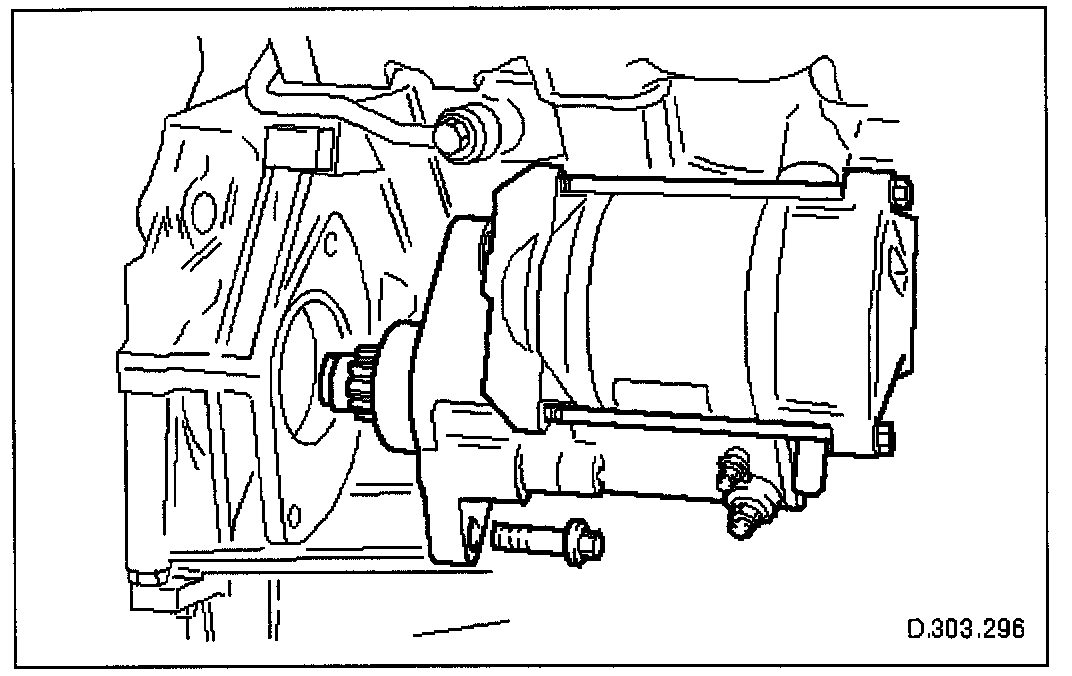

The starter is of the pre-engaged type; located at the rear left-side of the engine.

When the starter is operated from the key-switch, the engagement lever moves the pinion into mesh with the engine ring gear teeth, the electrical contacts within the solenoid complete the high power circuit and the starter motor operates to turn the engine.

Starter Relay

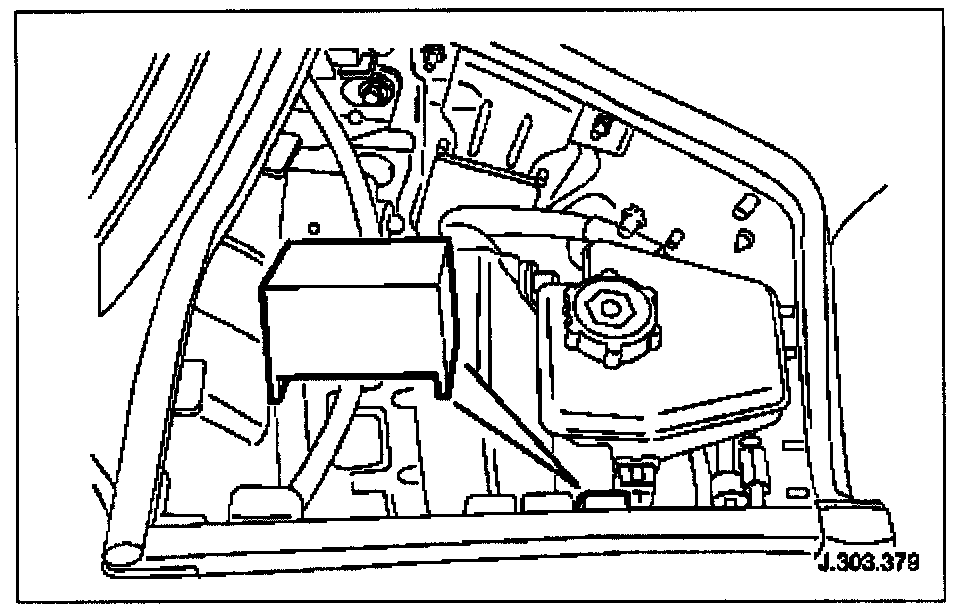

The starter motor control relay is the front one of the three, located on the right hand inner wing panel, beneath the bulkhead compartment right hand cover.

Starter Drive Plate

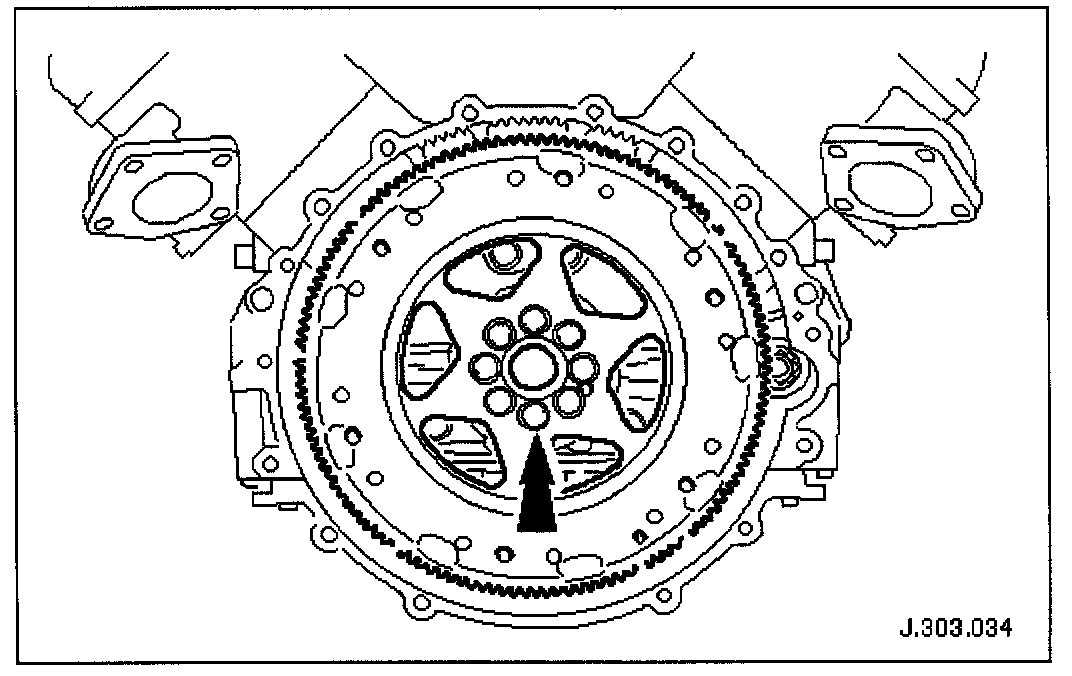

The starter drive plate is attached to the rear of the crankshaft by eight bolts.

Timing Disc

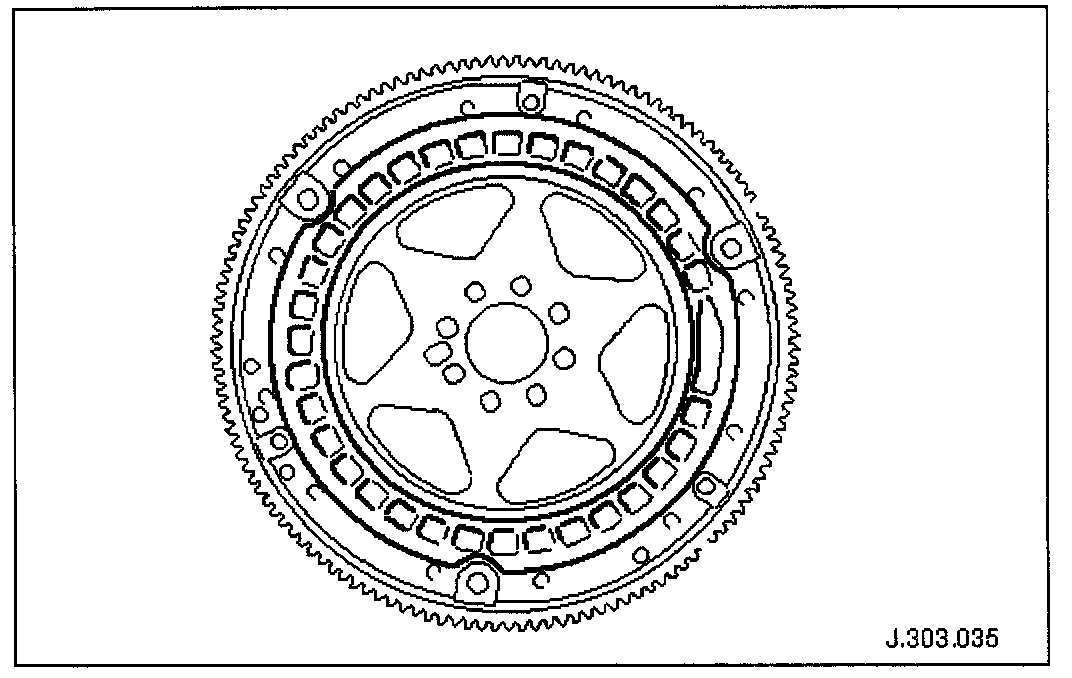

A timing disc, for the engine speed sensor, is spot-welded to the front face of the starter drive plate.
