Auxiliary Power Outlet: Description and Operation

Rear Accessory Connectors:

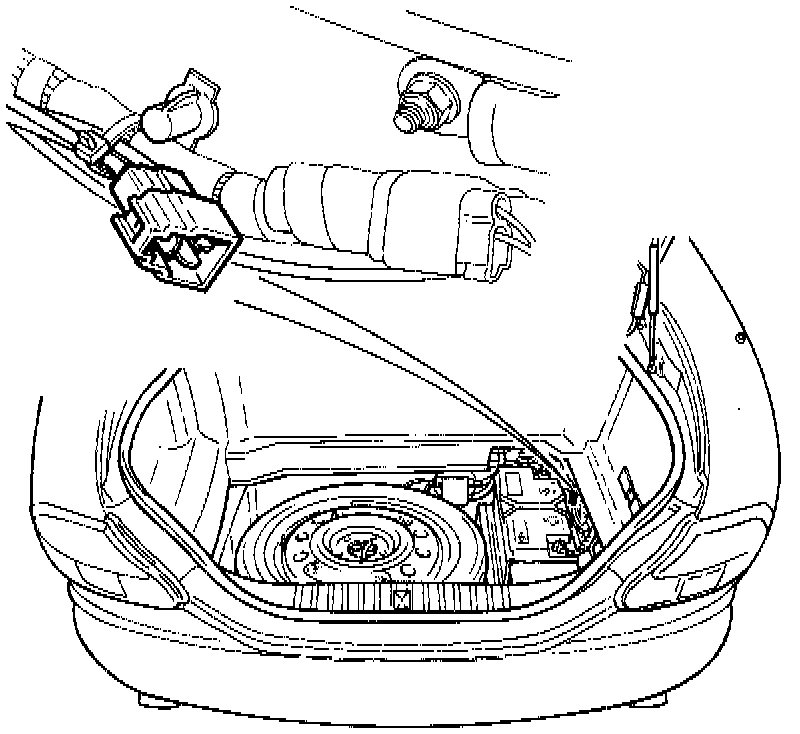

There are two accessory connectors, one in the fascia and one in the trunk. The wiring is the same for each 3-pin connector: The connector is designed to accept 6.35 mm (.25 inch) female LUCAR type connectors

Pin 001 (Brown/Light green wire): +12 V Battery
Pin 002 (Black wire): Ground
Pin 003 (Purple/Brown wire): +12 V Auxiliary

The fascia connector cannot be used if a Jaguar rechargeable torch is fitted.
