Battery Hold-Down Clamp

Removal

1. Open the driver's door, or both doors if necessary, to allow the side glass to drop. Ensure that the doors remain open until after the battery has been disconnected.
2. Remove the luggage compartment floor panel (when standard size spare wheel is supplied) and the cover from the battery.
3. Disconnect the battery terminal ground cable. Negative

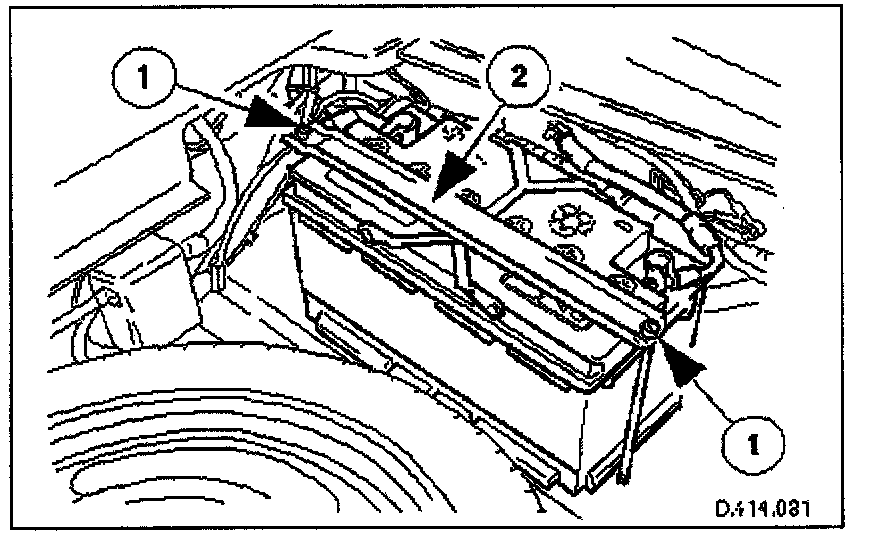

4. Remove the battery hold-down clamp.
1. Remove the two bolts which secure the battery hold-down clamp.
2. Remove the hold-down clamp.


Installation
1. Installation is the reverse of removal.
2. Perform the Battery Reconnection Procedure. Service and Repair
