Positive: Service and Repair

Removal
1. Open the driver's door, or both doors if necessary, to allow the side glass to drop. Ensure that the doors remain open until after the battery has been disconnected.
2. Remove the luggage compartment floor panel (when standard size spare wheel is supplied) and the battery cover.

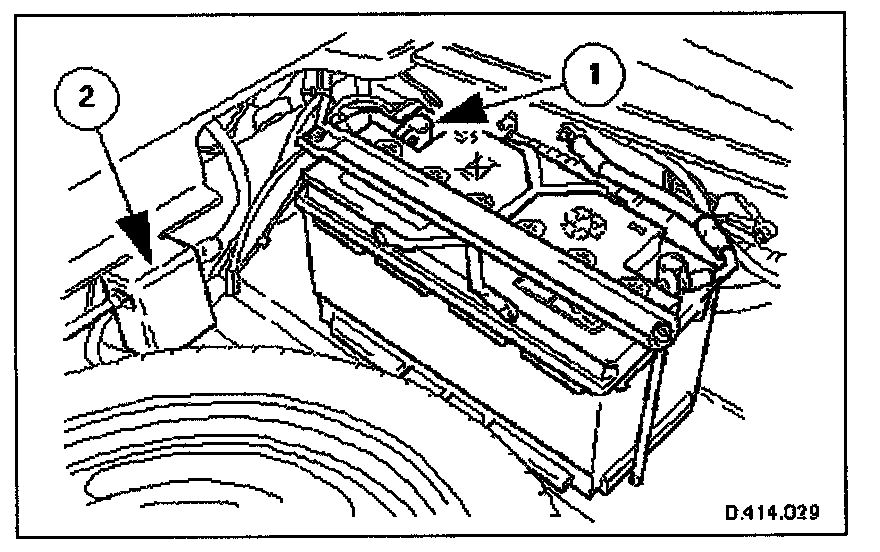

3. Disconnect the positive lead.
Slacken the clamp of the positive lead at the battery terminal. Disconnect the positive lead from the battery terminal.
Remove the cover from the high power protection module for access to the positive supply stud.

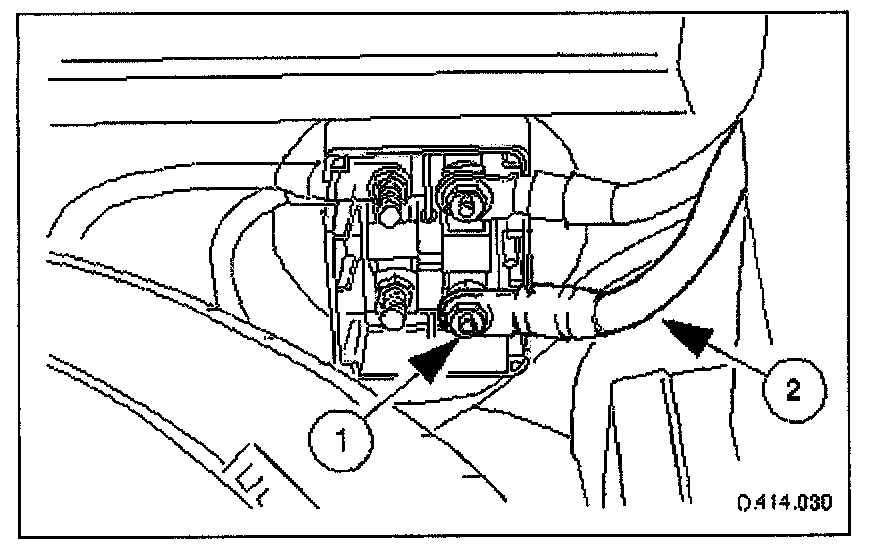

4. Remove the positive lead.
Remove the nut from the positive supply stud.
Remove the positive lead.


Installation
1. Installation is the reverse of removal.
2. Perform the Battery Reconnection Procedure. Service and Repair
