Home >> Jaguar >> 2000 >> XKR Convertible (X100) V8-4.0L SC (AJ27) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Engine Dimensions

Engine Dimensions

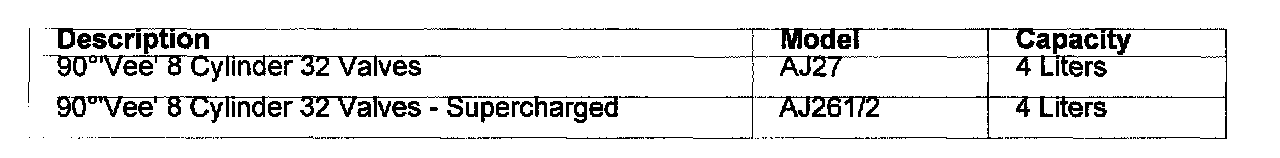

Engine

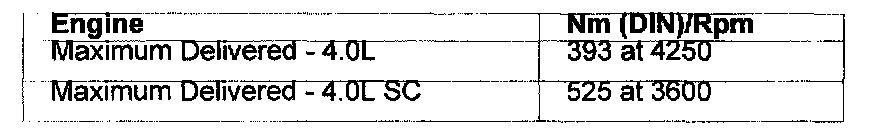

Engine Torque





Engine Power

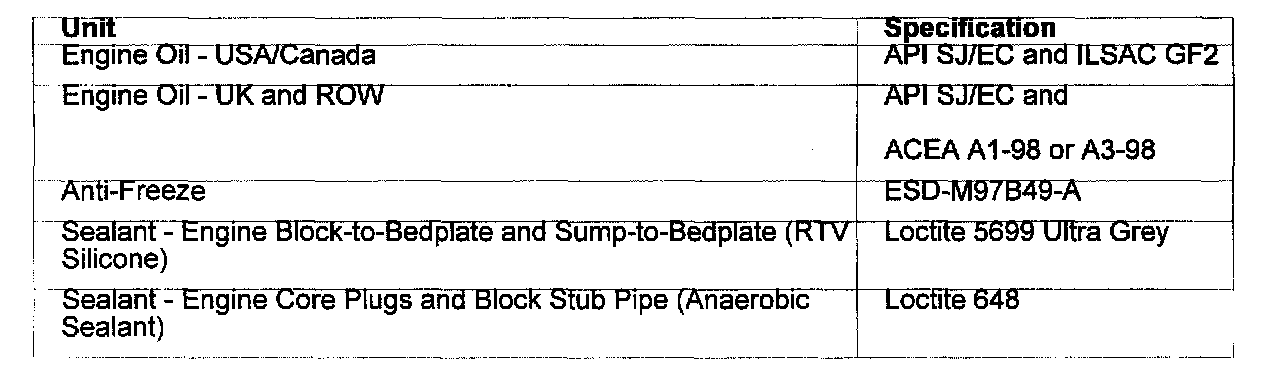

Lubricants, Fluids, Sealants and Adhesives

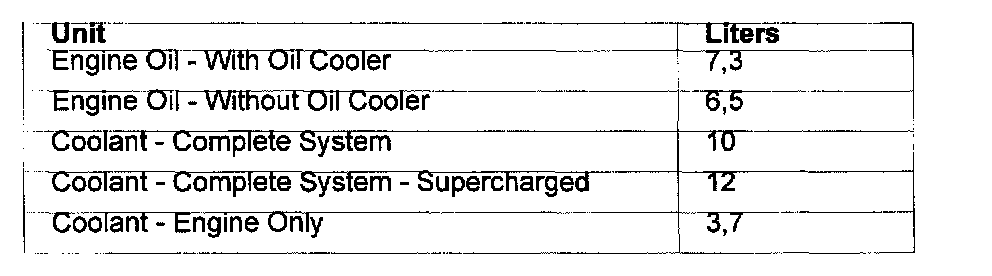

Capacities

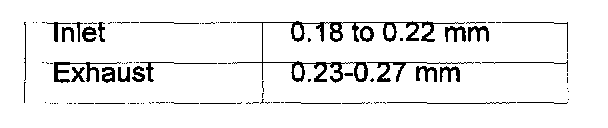

Valve Clearances (Cold)

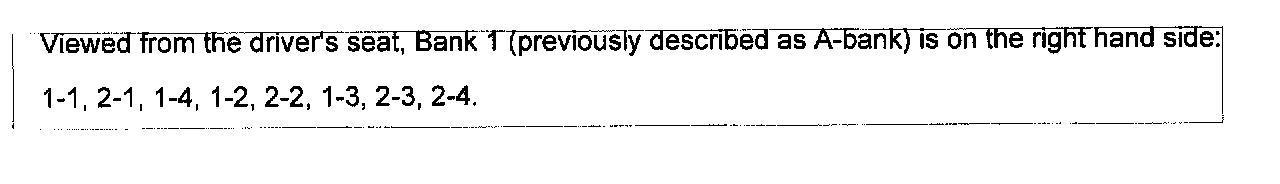

Firing Order
