Rear

Wheel Speed Sensor - Rear

Removal
1. Raise rear of vehicle and support on stands.

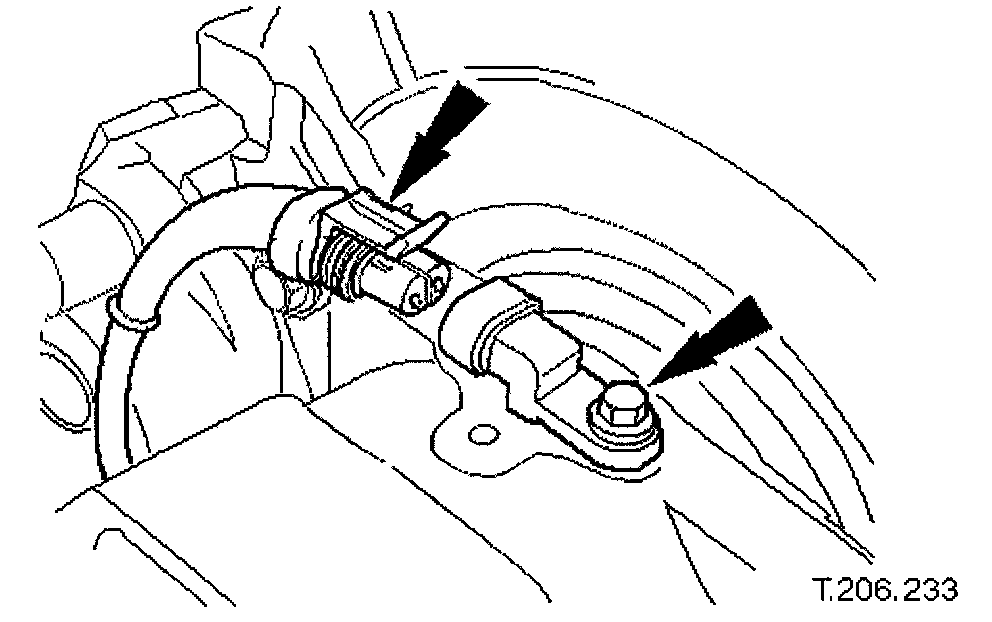

2. Remove wheel speed sensor.
Disconnect harness connector.
Remove bolt.
3. Clean components and mating surfaces.

Installation

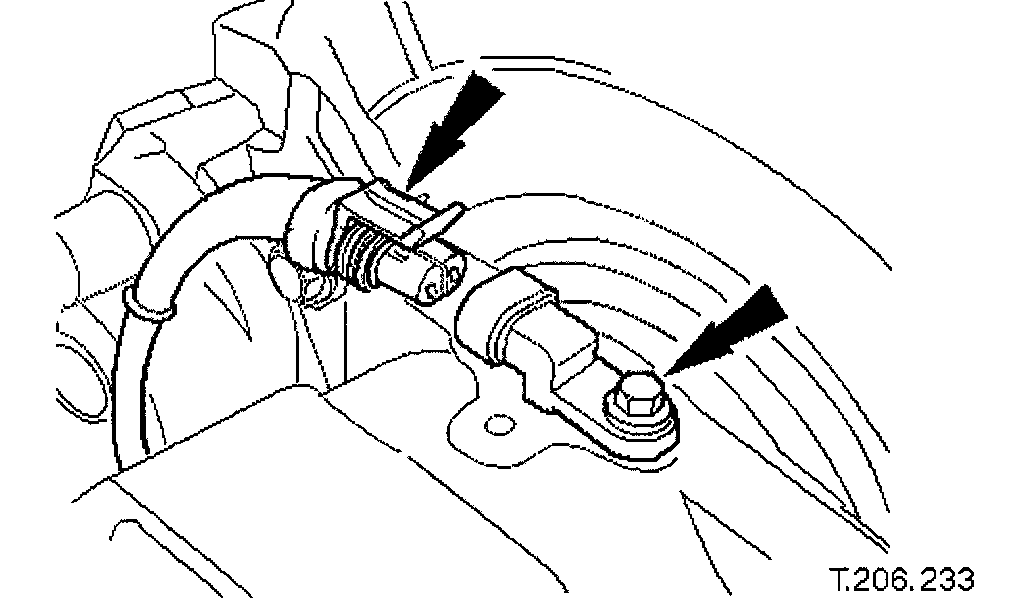

1. Install wheel speed sensor.
Position sensor.
Install and tighten bolt to 8 - 10 Nm.
Connect harness connector.
2. Remove stands and lower vehicle.
