Front

Removal
1. Raise front of vehicle and support on stands.

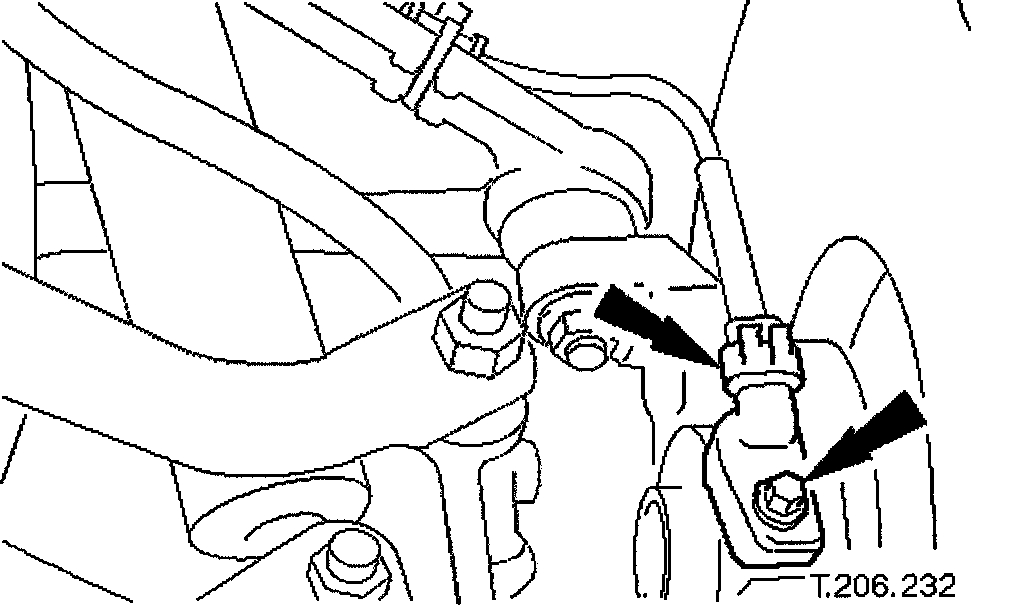

2. Remove wheel speed sensor.
- Disconnect harness connector.
- Remove bolt.

3. Clean components and mating surfaces.

Installation

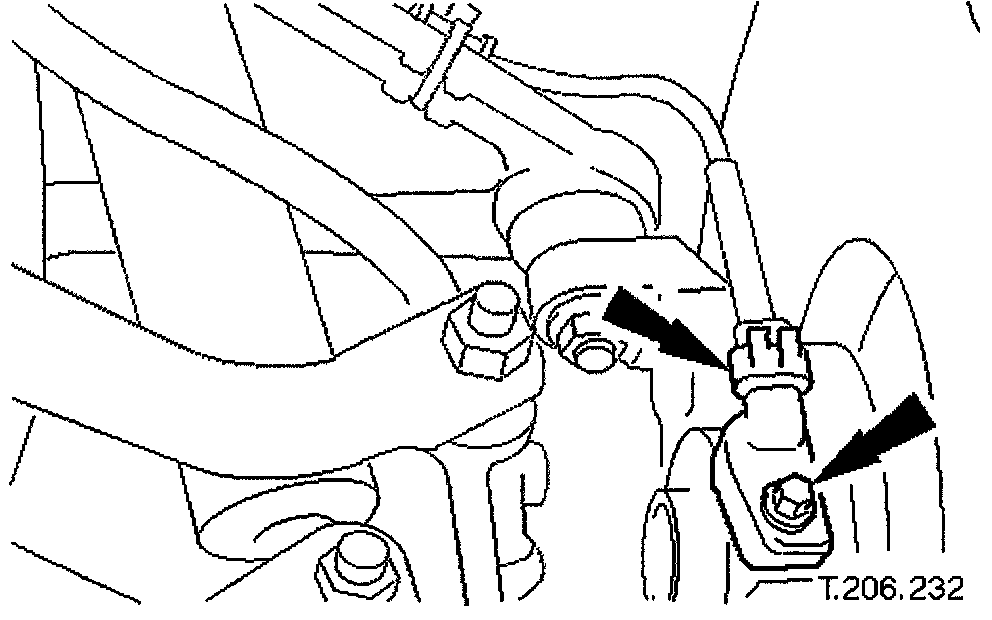

1. Install wheel speed sensor.
- Position sensor.
- Install and tighten bolt to 8 - 10 Nm.
- Connect harness connector.

2. Remove stands and lower vehicle.
