Traction Control Switch: Service and Repair

The Center Console Switch Module contains the following switches:
Hazard Warning Switch
Front Fog Lamp Switch
Rear Fog Lamp Switch
Front Seat Heater Switches
Traction Control "OFF" Switch

Removal, Center Console Switch Module
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair
2. Remove 'J' gate surround. Service and Repair
3. Remove centre console for access. Service and Repair
4. Remove radio console for access. Service and Repair

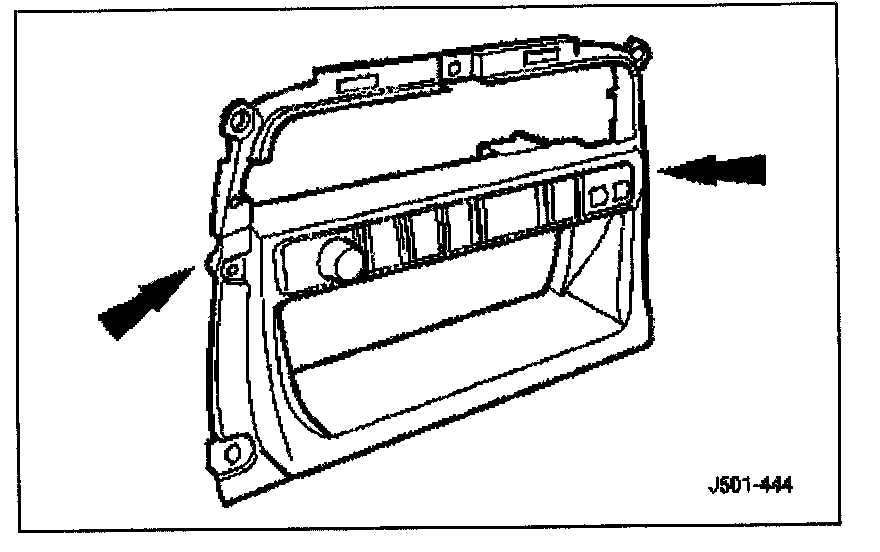

5. Disconnect switch module harness multiplug, release module end locaters and lightly press module out of console.


Installation
1. Fit switch module to console ensuring that end locaters are fully seated.
2. Connect switch module harness multiplug.
3. Fit radio console.
4. Fit centre console.
5. Fit 'J' gate surround.
6. Connect ground cable to battery terminal and fit battery cover. Service and Repair
