Impact Sensor: Service and Repair

WARNING: BEFORE ANY AIRBAG/SRS SERVICE IS PERFORMED, PLEASE REVIEW SERVICE PRECAUTIONS. Service Precautions

Removal
1. Open hood.
2. Open trunk lid.
3. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair

WARNING: BEFORE ANY AIRBAG/SRS SERVICE IS PERFORMED, AT LEAST ONE MINUTE MUST ELAPSE AFTER DISCONNECTION OF THE BATTERY POSITIVE CABLE, TO ALLOW DISSIPATION OF BACK-UP POWER SUPPLY ENERGY.

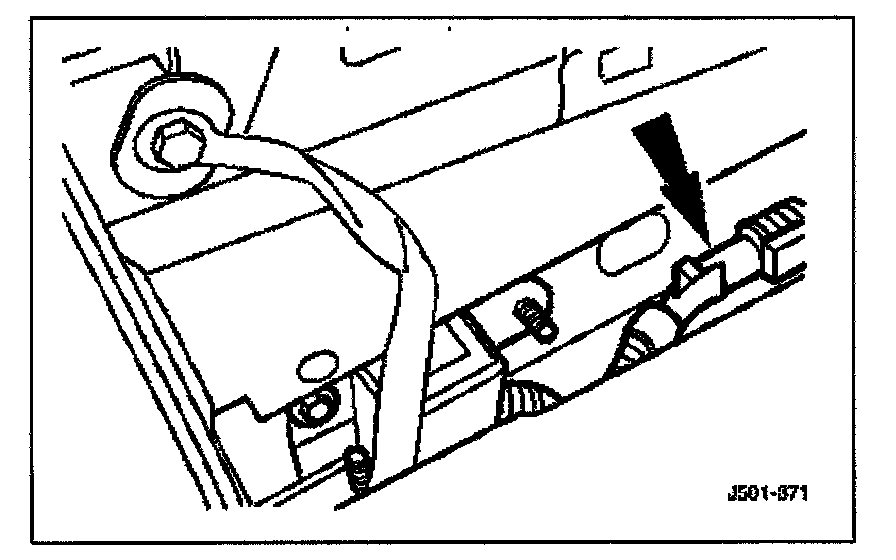

4. Remove air bag sensor harness from mounting bracket and disconnect multiplug.

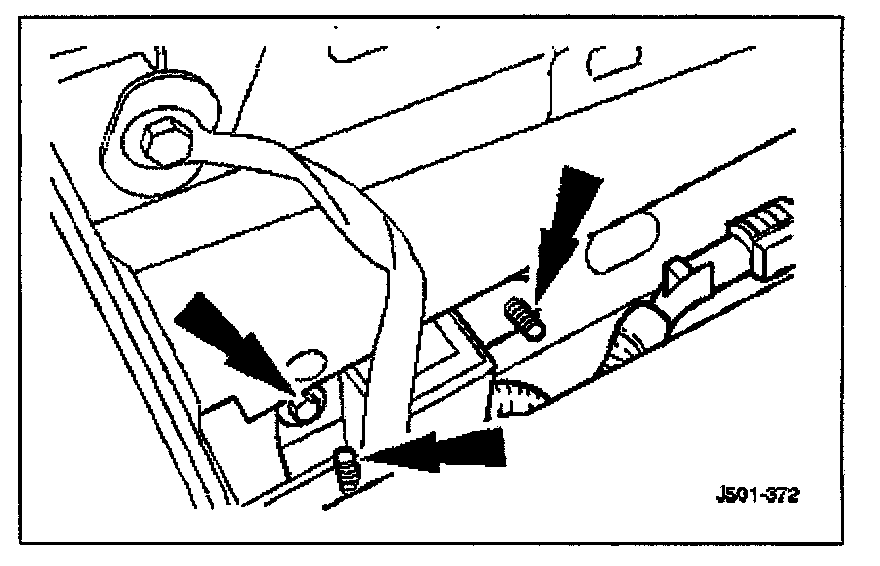

5. Slacken and remove three bolts securing the sensor to the BIW front cross member and remove the sensor from the vehicle.


Installation
1. Position sensor on BIW cross member and fit and tighten the three securing bolts.
2. Connect sensor harness multiplug and fit multiplug in mounting bracket.
3. Close hood.
4. Connect ground cable to battery terminal and fit cover to battery. Service and Repair
5. Close trunk lid.
