Impact Sensor: Locations

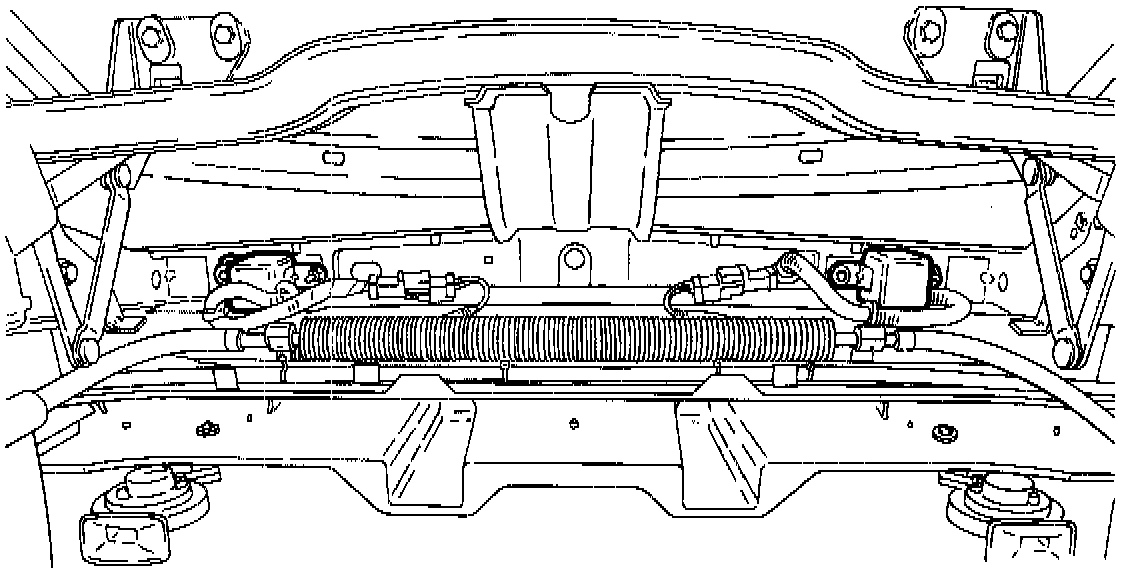

Two primary crash sensors are fitted on the vehicle front upper cross member, in front of the radiator, inboard of the headlamps.
