Rear Seat Belt

Removal
1. Remove rear seat cushion. Service and Repair





2. Release belt from seat squab.

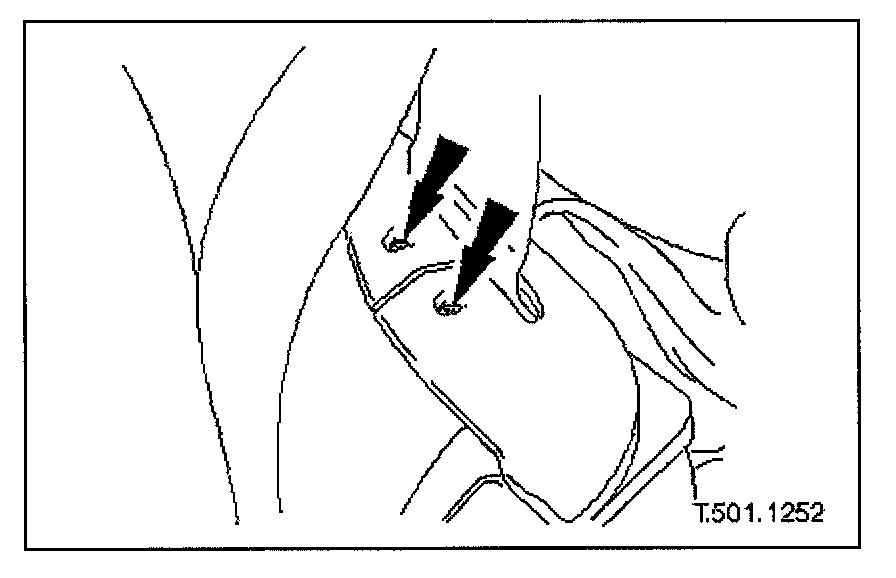

- Slacken and remove two screws securing seat belt escutcheon to top of seat squab.
- Pass belt through gap in escutcheon and retain escutcheon.
3. Remove rear seat squab for access. Service and Repair

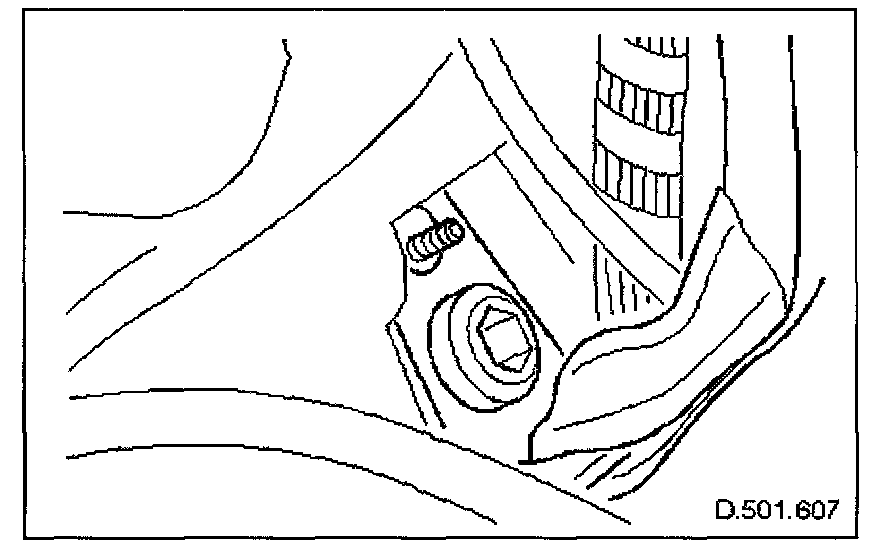

4. Slacken and remove seat belt lower anchor plate to seatpan securing bolt.

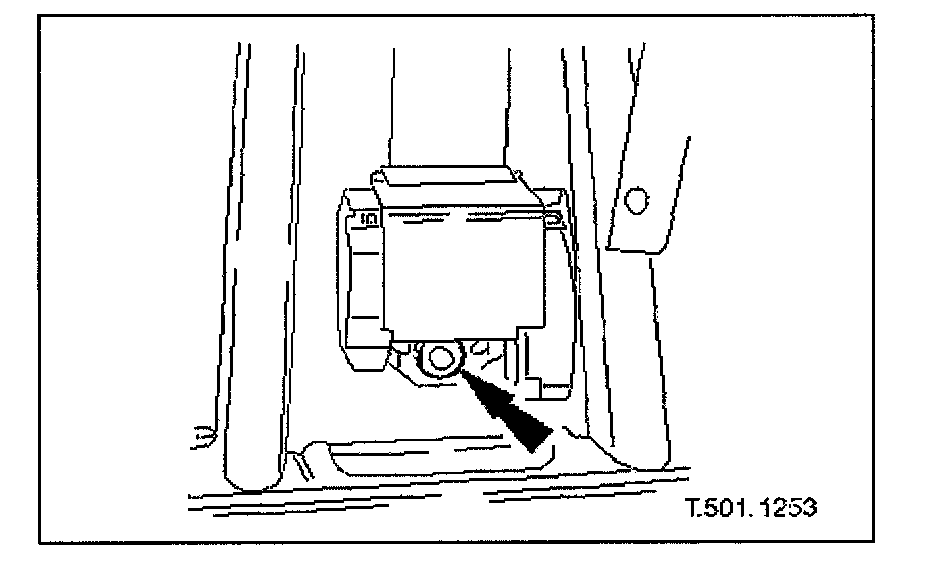

5. Slacken and remove seat belt inertia reel to squab panel securing bolt.

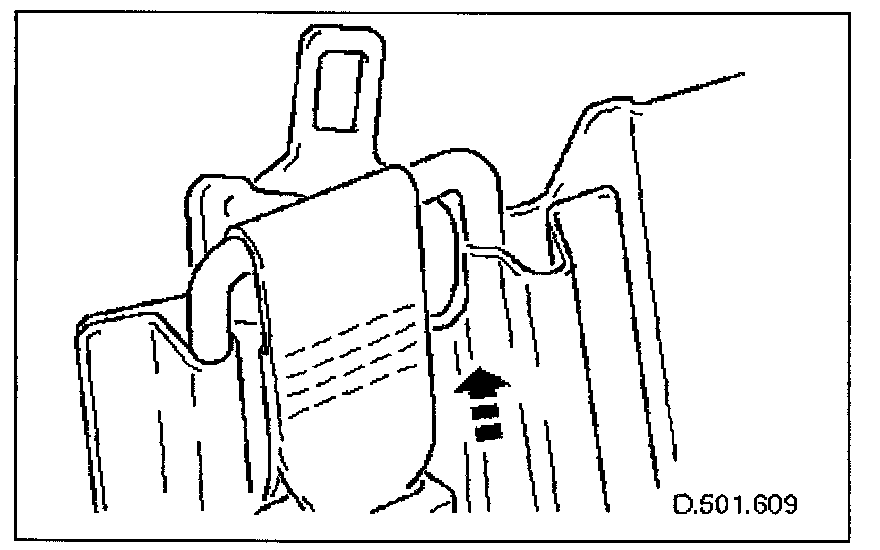

6. Pass seat belt lower anchor plate and tongue over belt guide on squab panel and remove belt and inertia reel from vehicle.


Installation
1. Position inertia reel at seat squab panel anchorage point, ensuring that dowel correctly locates in reel housing.
2. Fit and tighten inertia reel to seat squab panel securing bolt.
3. Route seat belt lower anchor plate and tongue up belt tower and over guide.
4. Fit rear seat squab.
5. Fit escutcheon over belt, position at top of squab and fit and tighten two securing screws.
6. Fit seat belt lower anchor.
Fit securing bolt to seat belt lower anchor plate and fit card washer and spacer to bolt.
Ensuring belt is not twisted, fit and tighten belt anchor plate to seatpan securing bolt ensuring dowel locates in slot.
7. Fit rear seat cushion.
