Passenger Air Bag Module

WARNING: BEFORE ANY AIRBAG/SRS SERVICE IS PERFORMED, PLEASE REVIEW SERVICE PRECAUTIONS. Service Precautions

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair

WARNING: BEFORE ANY AIRBAG/SRS SERVICE IS PERFORMED, AT LEAST ONE MINUTE MUST ELAPSE AFTER DISCONNECTION OF THE BATTERY POSITIVE CABLE, TO ALLOW DISSIPATION OF BACK-UP POWER SUPPLY ENERGY.

2. Remove glove box. Service and Repair





3. Remove deployment door from mounting clips and position for access.

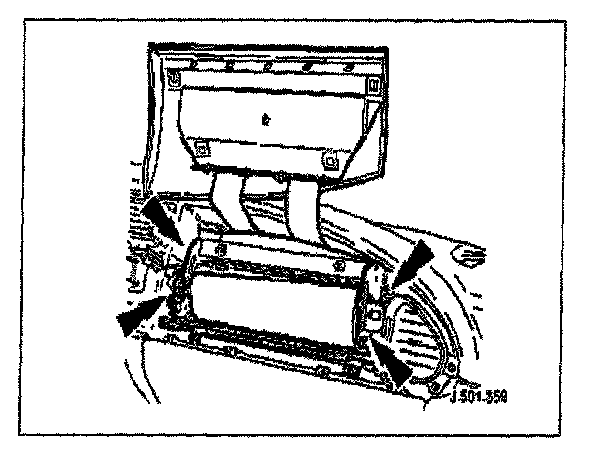

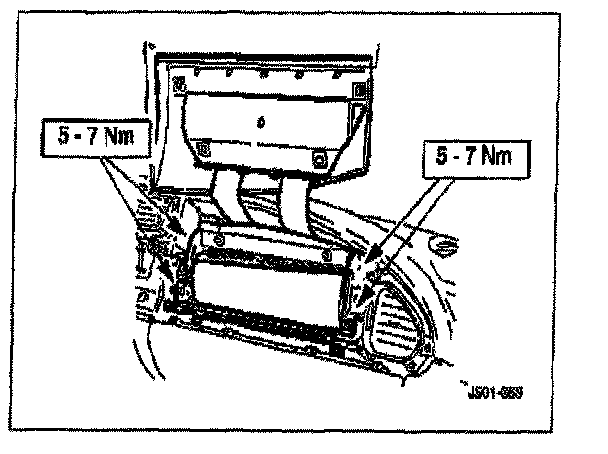

4. Slacken, remove and discard two bolts securing air bag module to fascia

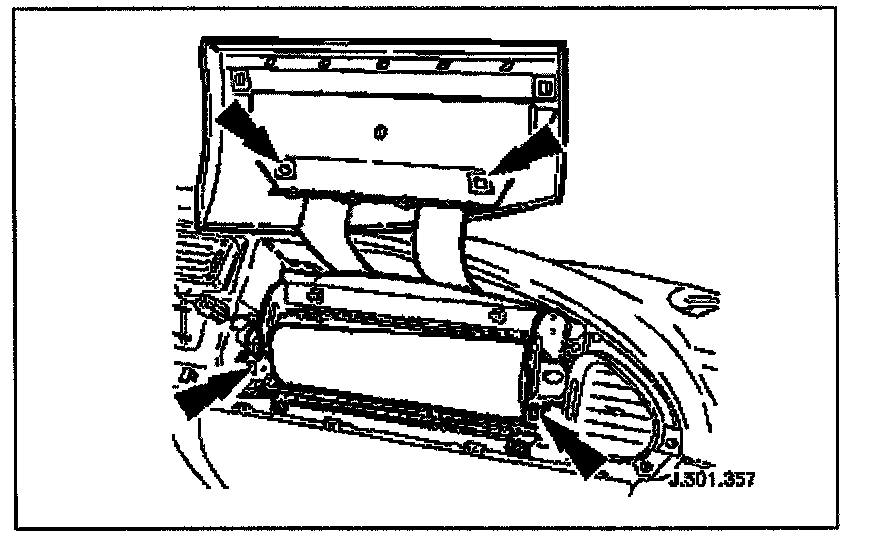

5. Slacken and remove the four deployment door mounting bracket securing bolts and partially withdraw bracket for access.

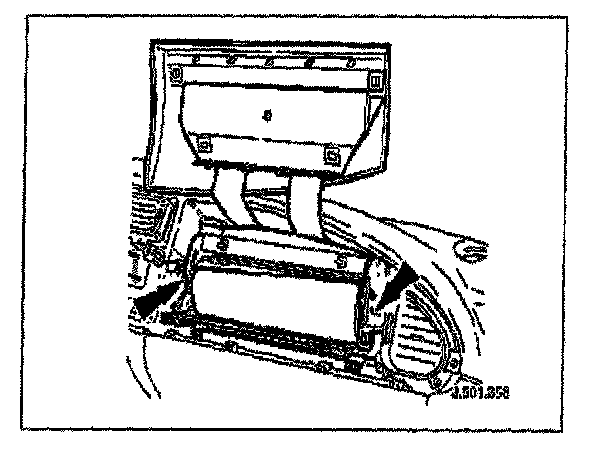

6. Remove air bag module multiplug from mounting bracket and disconnect multiplug.

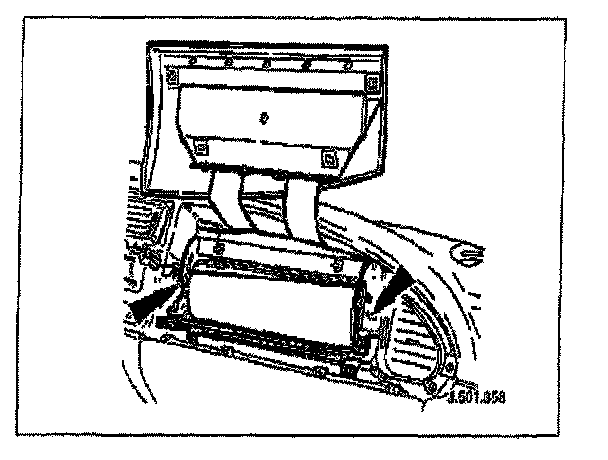

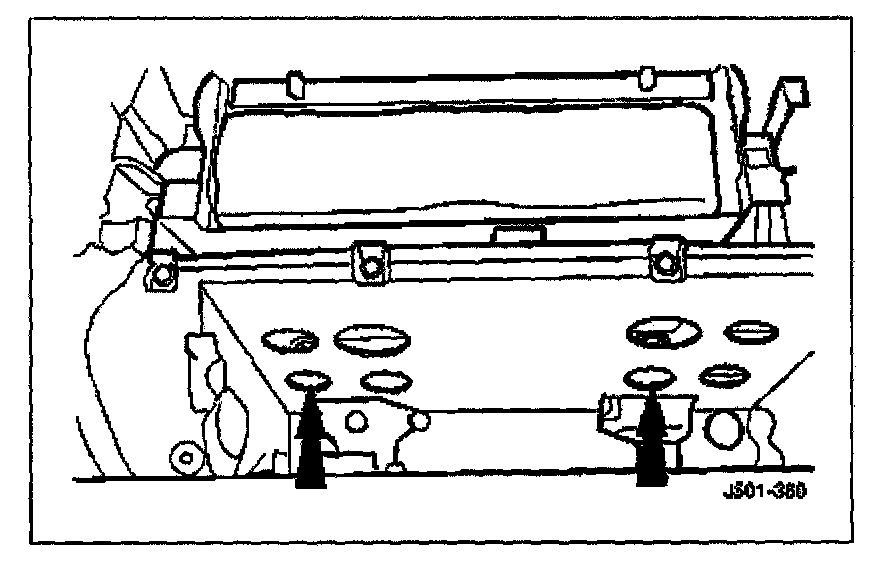

7. Slacken, remove and discard two lower bolts securing air bag module tether bracket to fascia.

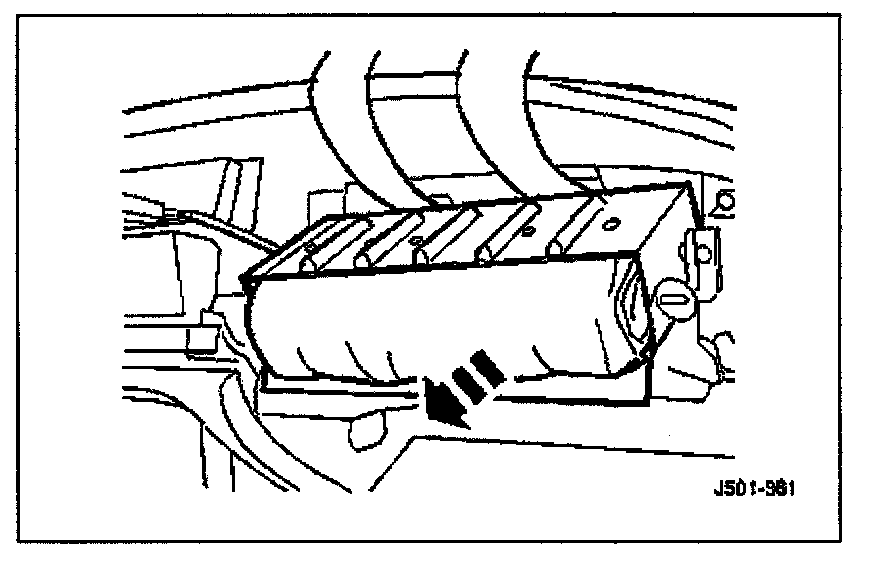

8. Withdraw air bag module and remove from vehicle.

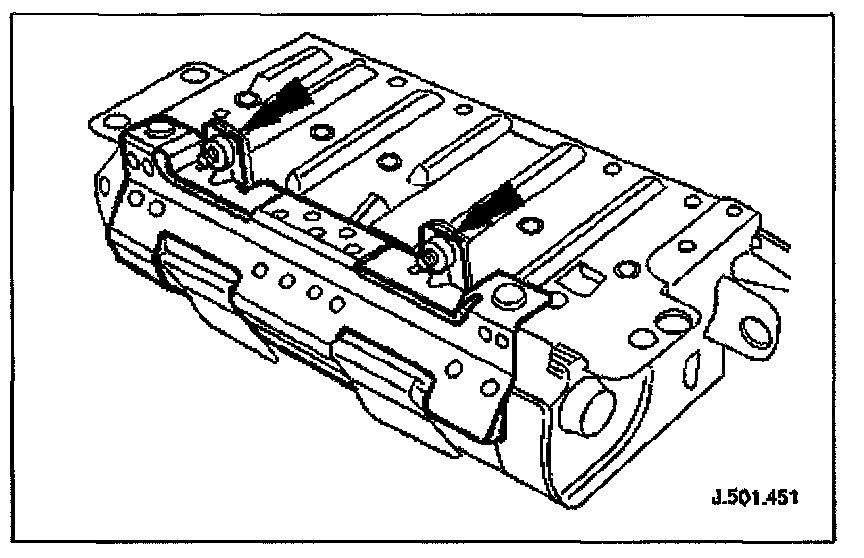

9. Slacken, remove and discard two bolts securing air bag tether bracket to air bag module.


Installation

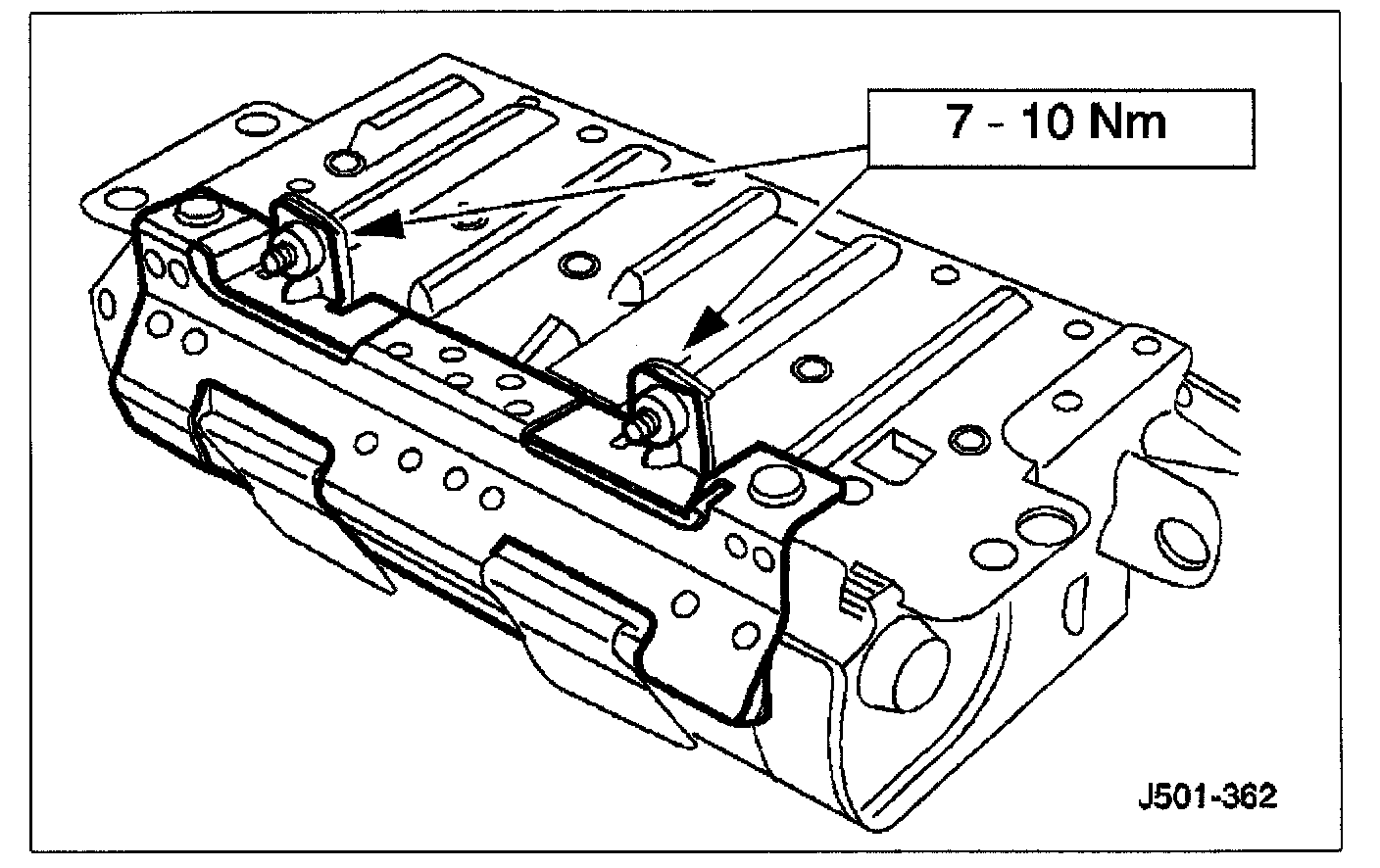

1. Position air bag module on tether bracket and fit and tighten two new securing bolts.
2. Position air bag module and deployment door mounting bracket in fascia.





3. Fit and tighten two new bolts securing air bag module and tether bracket to lower fascia connect multiplug and fit to bracket.





4. Fit and tighten four bolts securing door counting bracket to fascia.





5. Fit and tighten two new bolts securing air bag module to fascia
6. Fit air bag deployment door into mounting clips.
7. Fit glove box.
8. Connect ground cable to battery terminal and fit battery cover. Service and Repair
