Driver Air Bag Module

WARNING: BEFORE ANY AIRBAG/SRS SERVICE IS PERFORMED, PLEASE REVIEW SERVICE PRECAUTIONS. Service Precautions

Removal
1. Remove battery cover and disconnect ground cable from battery terminal. Service and Repair

WARNING: BEFORE ANY AIRBAG/SRS SERVICE IS PERFORMED, AT LEAST ONE MINUTE MUST ELAPSE AFTER DISCONNECTION OF THE BATTERY POSITIVE CABLE, TO ALLOW DISSIPATION OF BACK-UP POWER SUPPLY ENERGY.

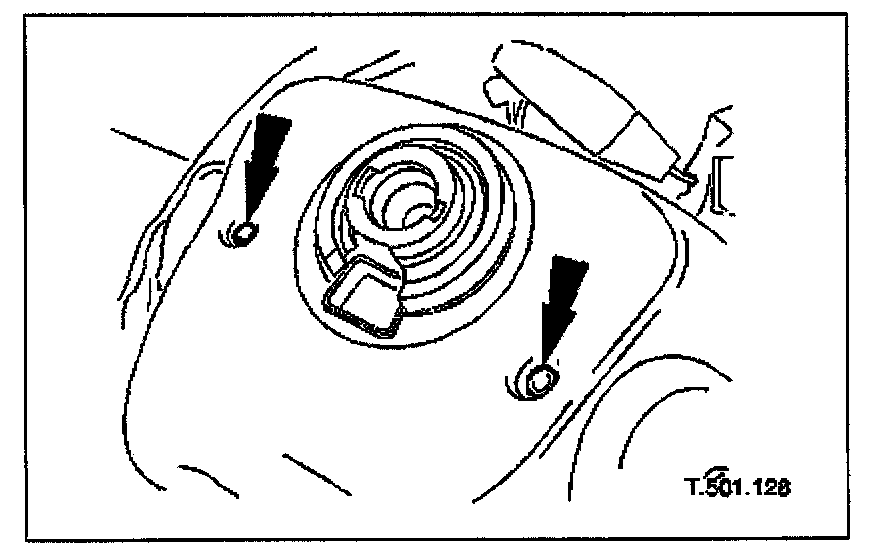

2. Remove air bag module securing bolts.
- Turn steering wheel 90 degrees to the left to provide access to module LH securing bolt. Fully slacken captive securing bolt
- Turn steering wheel 90 degrees to the right to provide access to module RH securing bolt. Fully slacken captive securing bolt.





3. Remove air bag module from steering wheel.
1. Carefully withdraw airbag module from steering wheel and position for access.
2. Disconnect air bag module harness multiplug and remove air bag module from vehicle.


Installation
1. Position air bag module and connect harness multiplug.
2. Carefully install airbag module in steering wheel.
3. Turn steering wheel 90 degrees to right and partially tighten module RH securing bolt.
4. Turn steering wheel 90 degrees to left and partially tighten module LH securing bolt.
5. Repeat steps 3 and 4 to fully tighten securing bolts and return steering wheel to central position.
6. Fit ground cable to battery terminal and fit battery cover. Service and Repair
