Air Bag: Locations

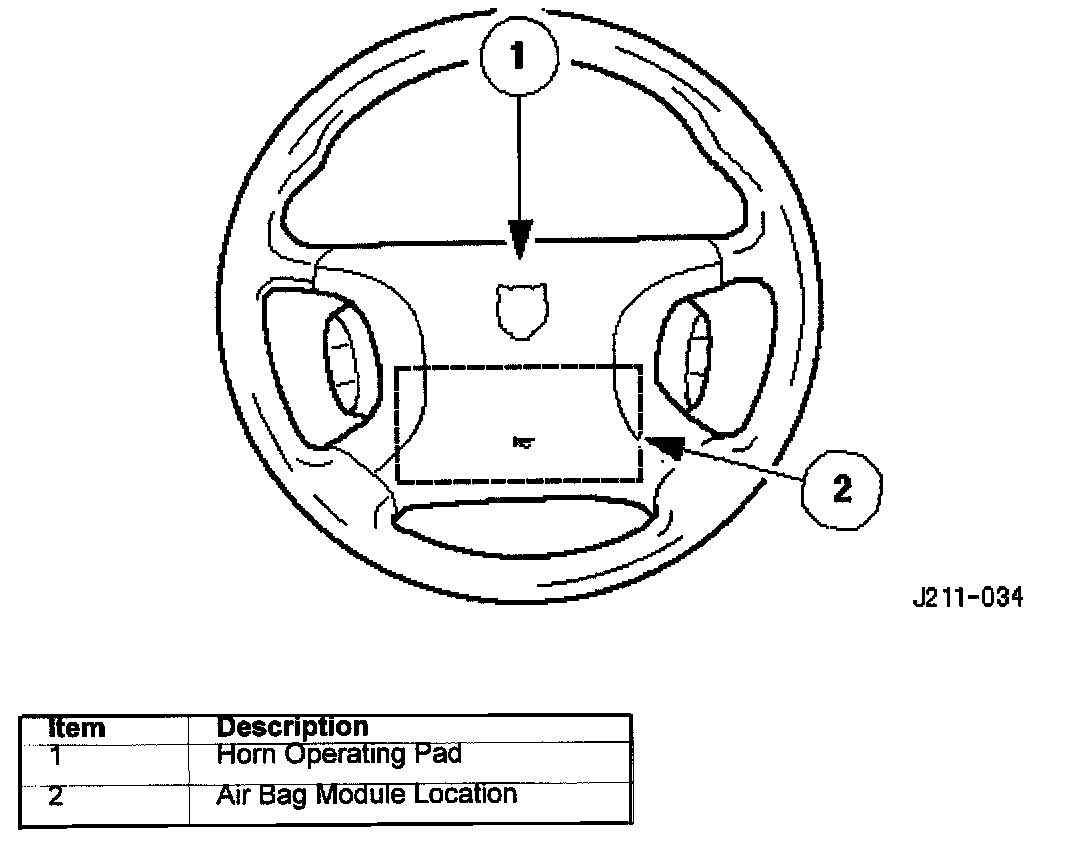

Horn and Airbag Location





The horn operating pad is mounted in the central area of the steering wheel.
Press the pad to operate the horn.

NOTE: For air bag safety and service information refer to Restraint Systems.

The air bag module is mounted below the horn operating pad area adjacent to the steering wheel hub.
