Air Bag: Description and Operation

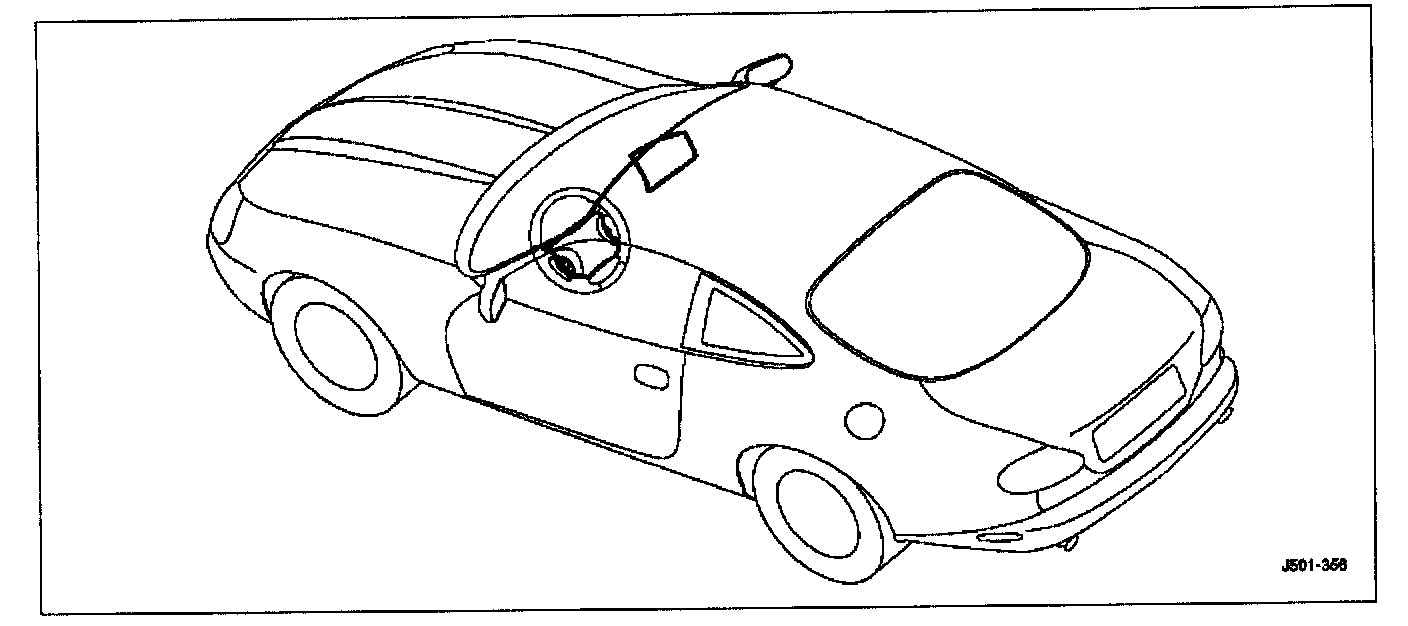

Airbag/SRS units provided for driver and front seat passenger, are installed in the center of the steering wheel and the passenger side fascia respectively.

The driver airbag/SRS unit is incorporated in the center of the steering wheel and is a carryover part from the 95MY sedan.

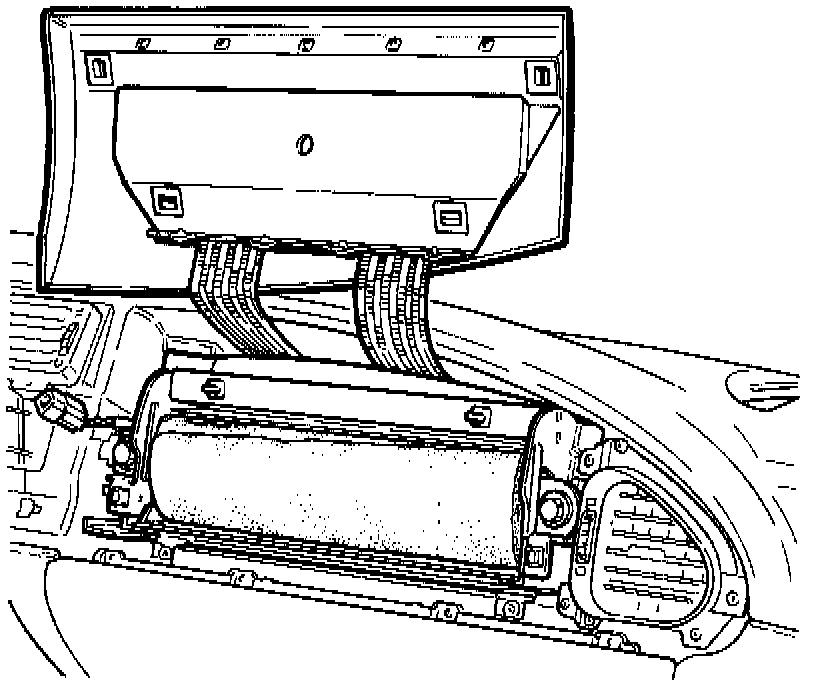

The passenger airbag/SRS unit is a carryover from the 95MY sedan. It is located in the fascia. The airbag is attached to a tethered door which has four snap-on fixings, no hinges or frangible being used. The tether straps must be fitted to the airbag module adapter bracket prior to fitting the airbag module to the fascia.
