Navigation Module: Service and Repair

Removal
1. Remove battery cover and disconnect ground lead from battery terminal. Refer to 'Starting and Charging, Battery, Service and Repair.'

2. Remove trunk RH side liner. see 'Body and Frame, Doors, Hood and Trunk, Trunk/Liftgate, Service and Repair.'

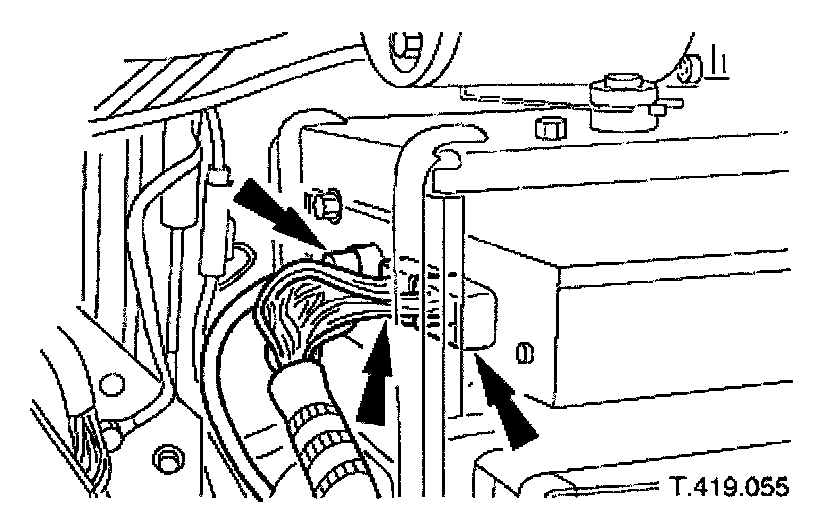

3. Disconnect three connectors from side of amplifier unit (premium audio only).

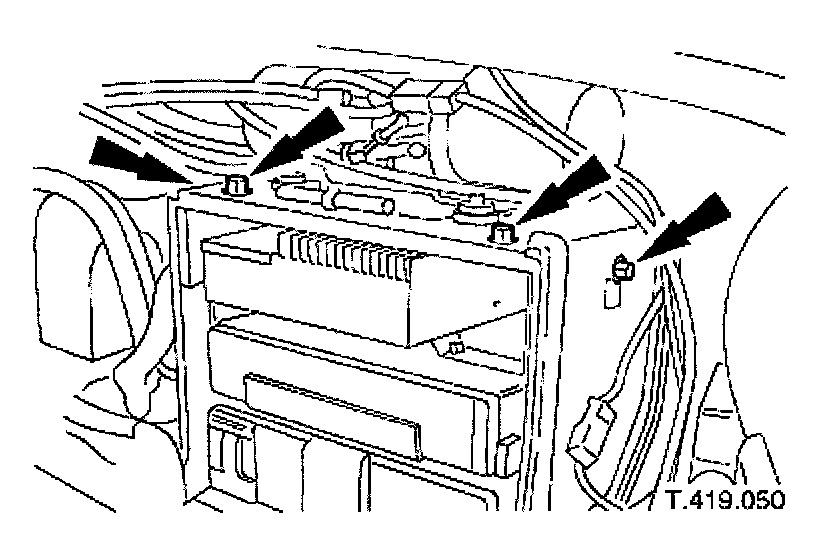

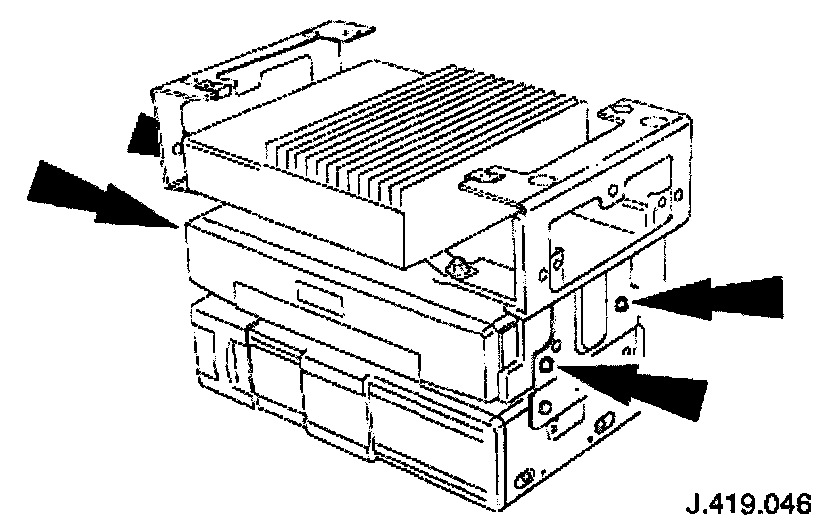

4. Remove four bolts securing audio/DVD reader module stack to mounting frame.

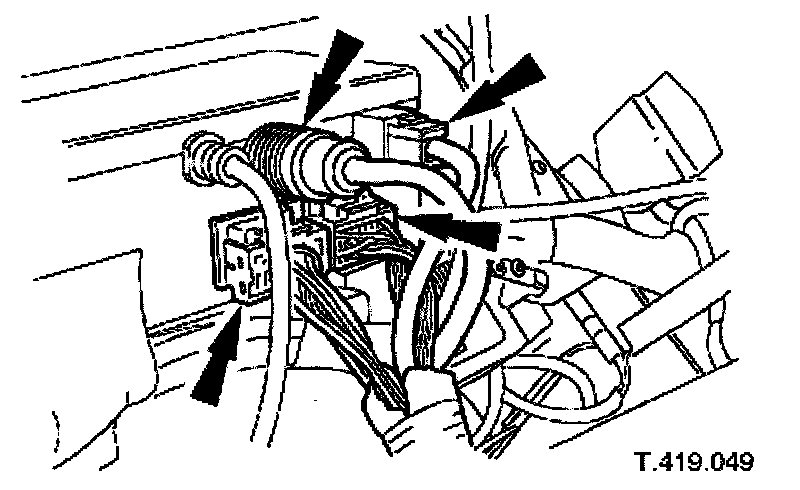

5. Carefully withdraw audio/DVD reader module stack and disconnect four connectors from rear of DVD reader module
6. Remove audio/DVD reader module stack from trunk.







7. Remove four DVD reader module to mounting bracket screws and withdraw module from bracket.

Installation







1. Position DVD reader module in mounting bracket and install screws.







2. Position audio/DVD reader module stack at mounting bracket and connect DVD reader harness connectors.
3. Ensure that amplifier and CD autochanger harnesses will not obstruct stack installation.







4. Finally position stack in mounting bracket and install bolts.







5. Connect amplifier unit harness connectors (premium audio only).
6. Install trunk RH side liner. see 'Body and Frame, Doors, Hood and Trunk, Trunk/Liftgate, Service and Repair.'

7. Connect ground cable to battery terminal and install battery cover. Refer to 'Starting and Charging, Battery, Service and Repair.'
