Throttle Cable/Linkage: Service and Repair

Removal
1. Disconnect the battery ground cable. Battery
2. Remove the windshield and wiper arm assembly.
3. Remove the plenum chamber finisher.

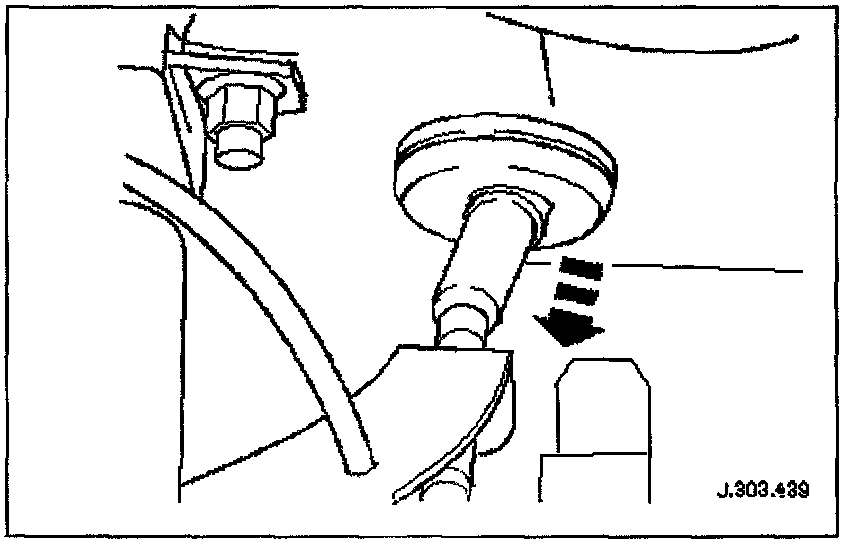

4. Disconnect the throttle cable from the electronic throttle assembly quadrant.
Rotate the throttle quadrant to release the cable.
Disconnect the throttle cable from the electronic throttle assembly quadrant.

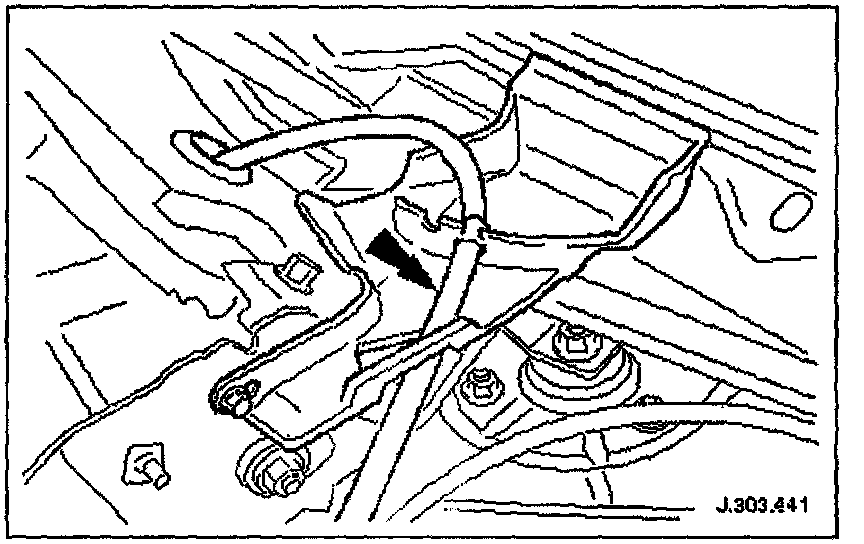

5. Displace the outer cable from the abutment bracket. Cut the retaining strap.
Displace the outer cable from the abutment bracket.

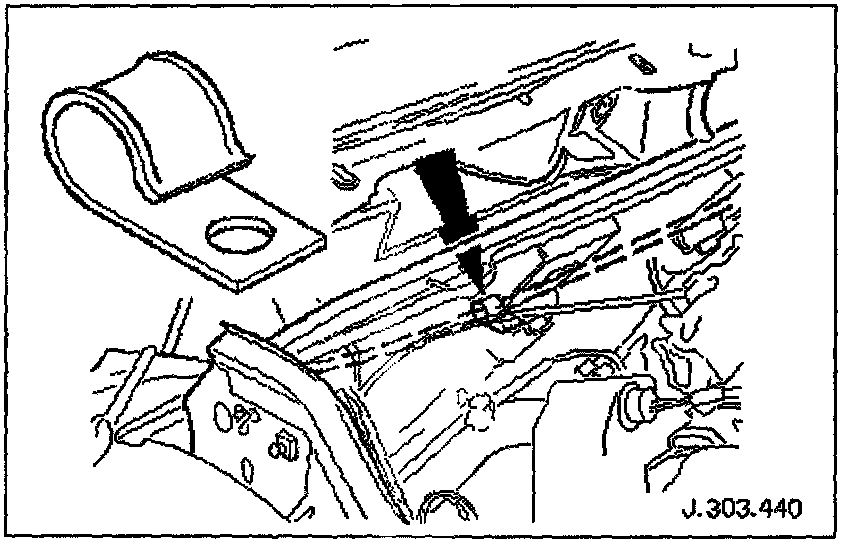

6. Release the grommet from the plenum chamber closing plate and route the cable/grommet through the aperture.

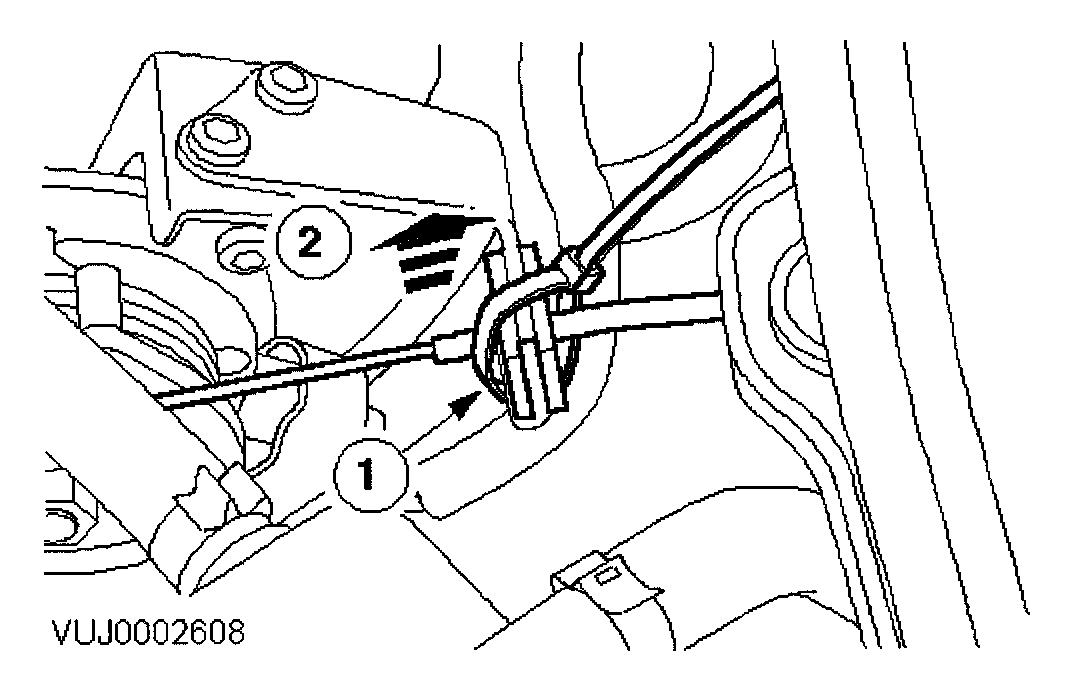

7. Remove the throttle cable from the bulkhead retaining clip.







8. Route the throttle cable through the water deflector bracket.
9. Ensure the drivers seat is fully rearward
10. Remove the A-Pillar lower trim pad.







11. Disconnect the throttle cable from the pedal.

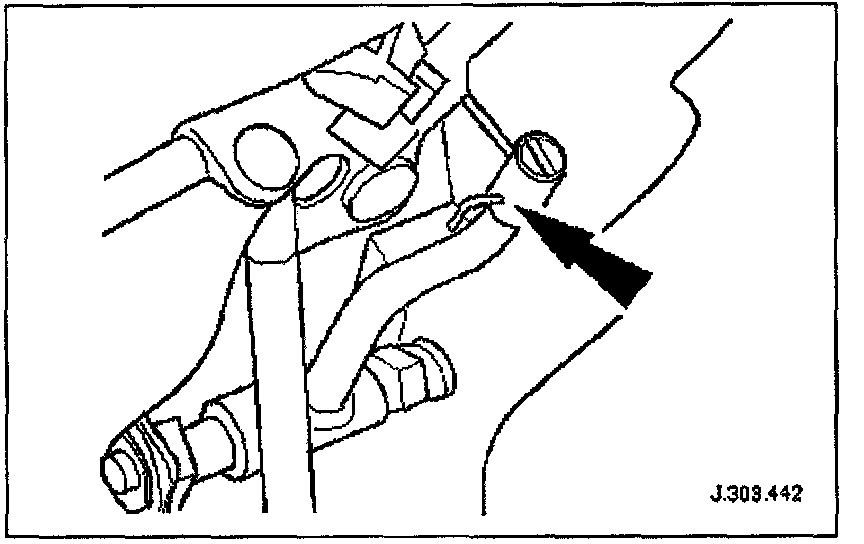

Remove the throttle cable split pin.
Remove the throttle cable retaining sleeve.
Disconnect the throttle cable.

12. From under the hood, remove the cable from the vehicle.

Installation
1. Installation is the reverse of the removal procedure. Adjust the throttle cable, refer to Adjustments. Adjustments
2. Perform the Battery Reconnection Procedure. Service and Repair
