Fuel Pump: Service and Repair

Fuel Pump

Removal and Installation

1. Remove fuel tank access panel.

2. Remove the fuel vent vapor valve

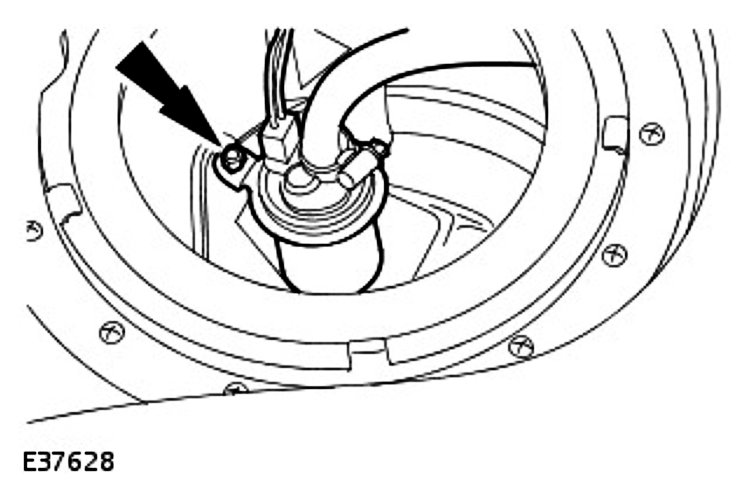

3. Detach the fuel pump and position through to of tank.

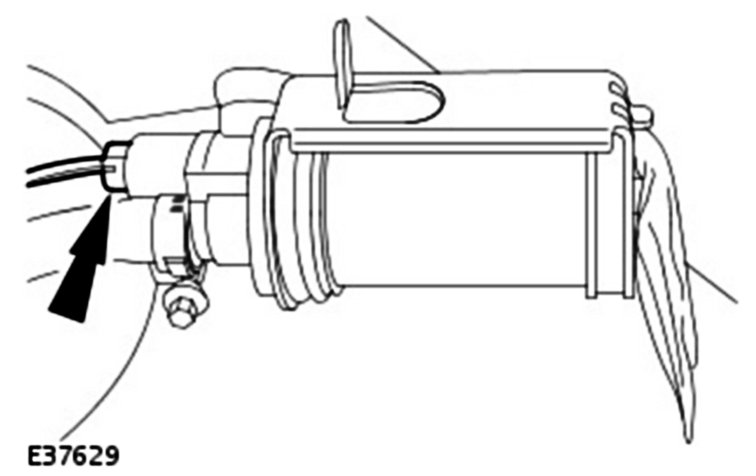

4. Disconnect fuel pump electrical connector.





5. Remove the fuel pump.

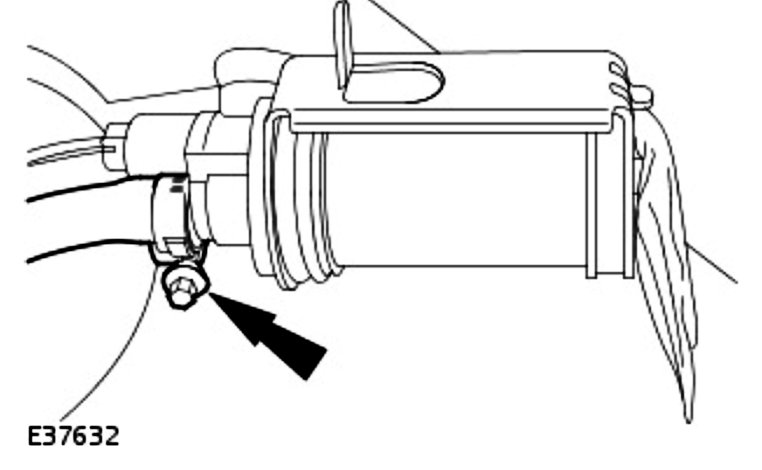

•Disconnect the fuel hose.
•Remove the fuel pump.


Installation





1. Connect the fuel hose.





2. Connect fuel pump electrical connector.





3. Caution: Make sure the fuel pump is correctly located before the retaining bolt is fully tightened. Failure to follow these instructions may result in damage to the vehicle.

Install the fuel pump.

•Tighten to 10 Nm.

4. Install vapor vent valve.

5. Install fuel tank access panel
