Emissions - MIL ON/Excessive Engine Noise: Overview
309-5501V8 XJ Series/XK
DATE:
04/03
Amended 07/04
MODEL
2000-02 MY XKR
2000-01 MY XJR & VDP SC
VIN
A00116-A27550
F00103-F30384
Exhaust Gas Recirculation
(EGR) Transfer Pipe - Replace -
Service Action 5501
Remove and destroy Bulletin 309-S501, dated 4/03.
Replace with this Bulletin.
Revisions are marked with a bar, bold text and asterisks.
Issue:
A concern has arisen whereby the EGR transfer pipe fitted to vehicles within the above VIN range may crack, due to a combination of normal engine resonance and the form of the pipe. This could result in the illumination of the check engine MIL and customer complaints of excess engine noise.
In order to avoid unnecessary customer inconvenience, the EGR transfer pipe should be replaced with a redesigned EGR transfer pipe on all vehicles within the above VIN range.
Jaguar Cars will be writing to all current owners of vehicles within the above VIN ranges, *who have not had this Service Action performed*, to request them to bring their vehicle in at the first available opportunity to have this work carried out.
Action:
At the next service opportunity, replace the EGR transfer pipe on all 2000-02 MY XKR and 2000-01 MY XJR & VDP SC vehicles within the above VIN range.
APPLYING MODIFICATION LABEL

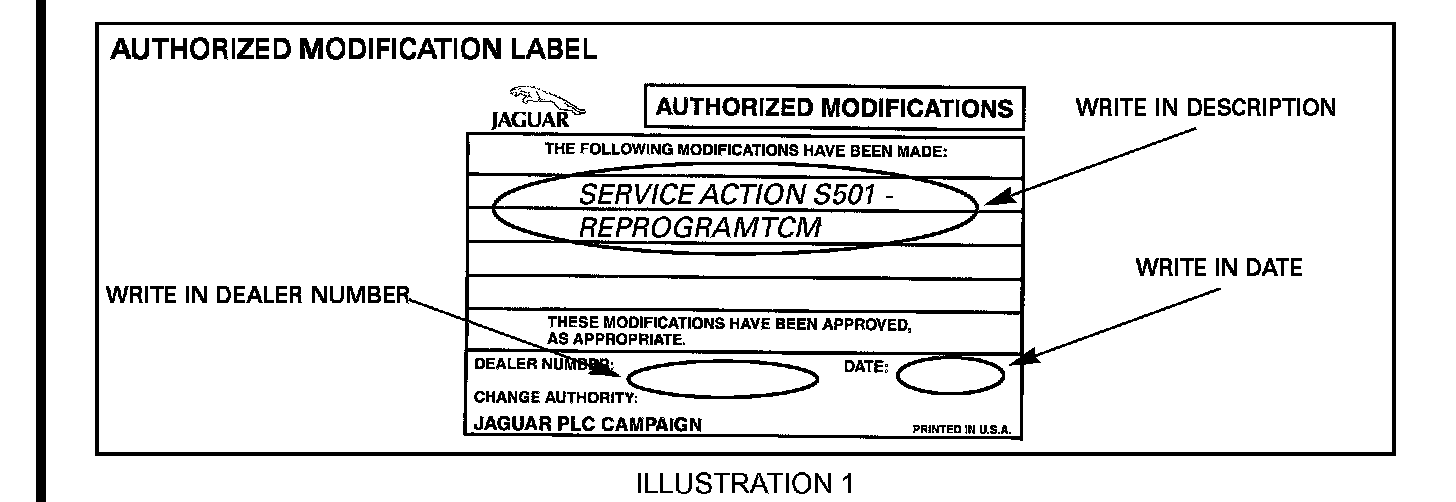

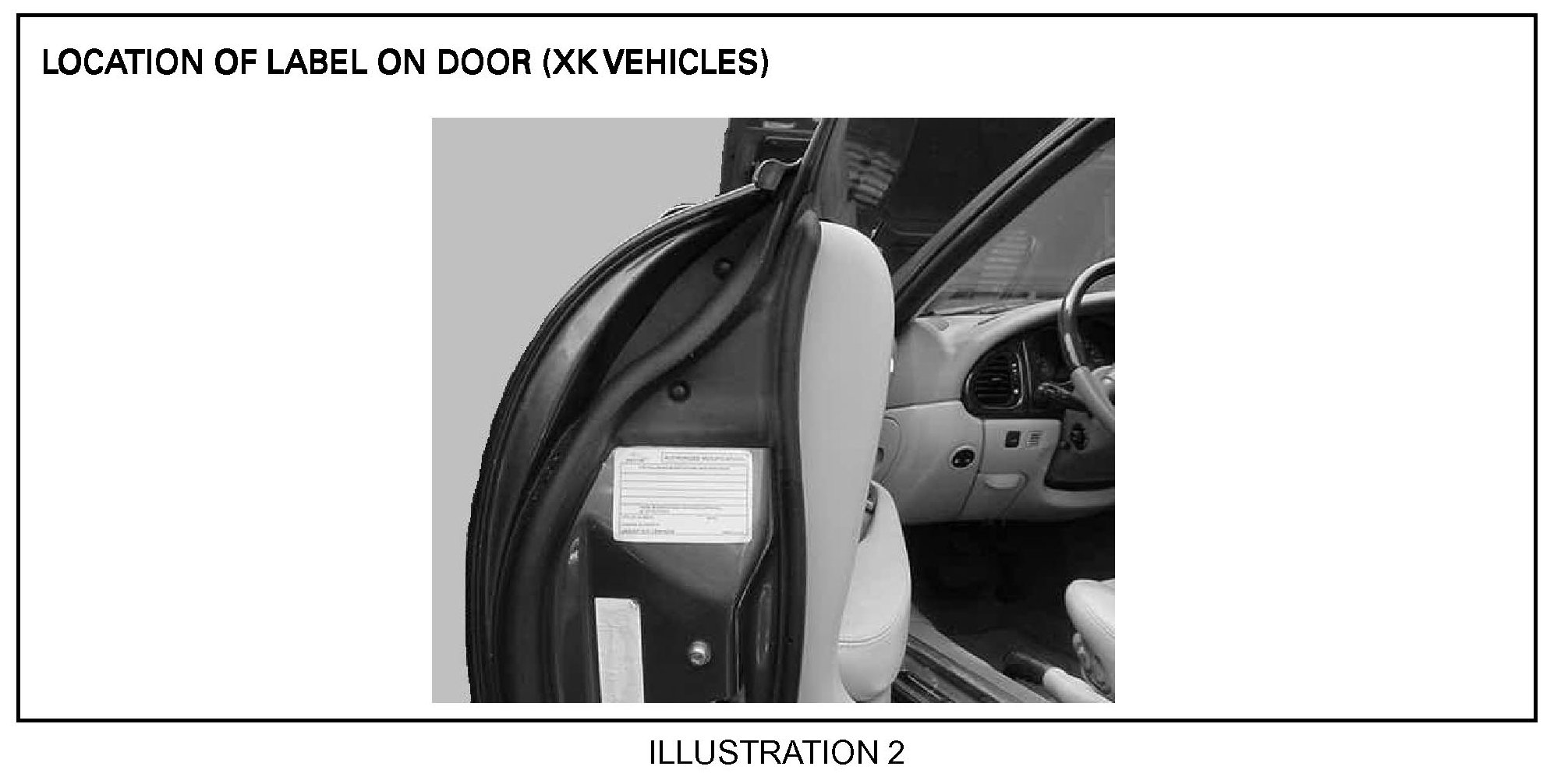

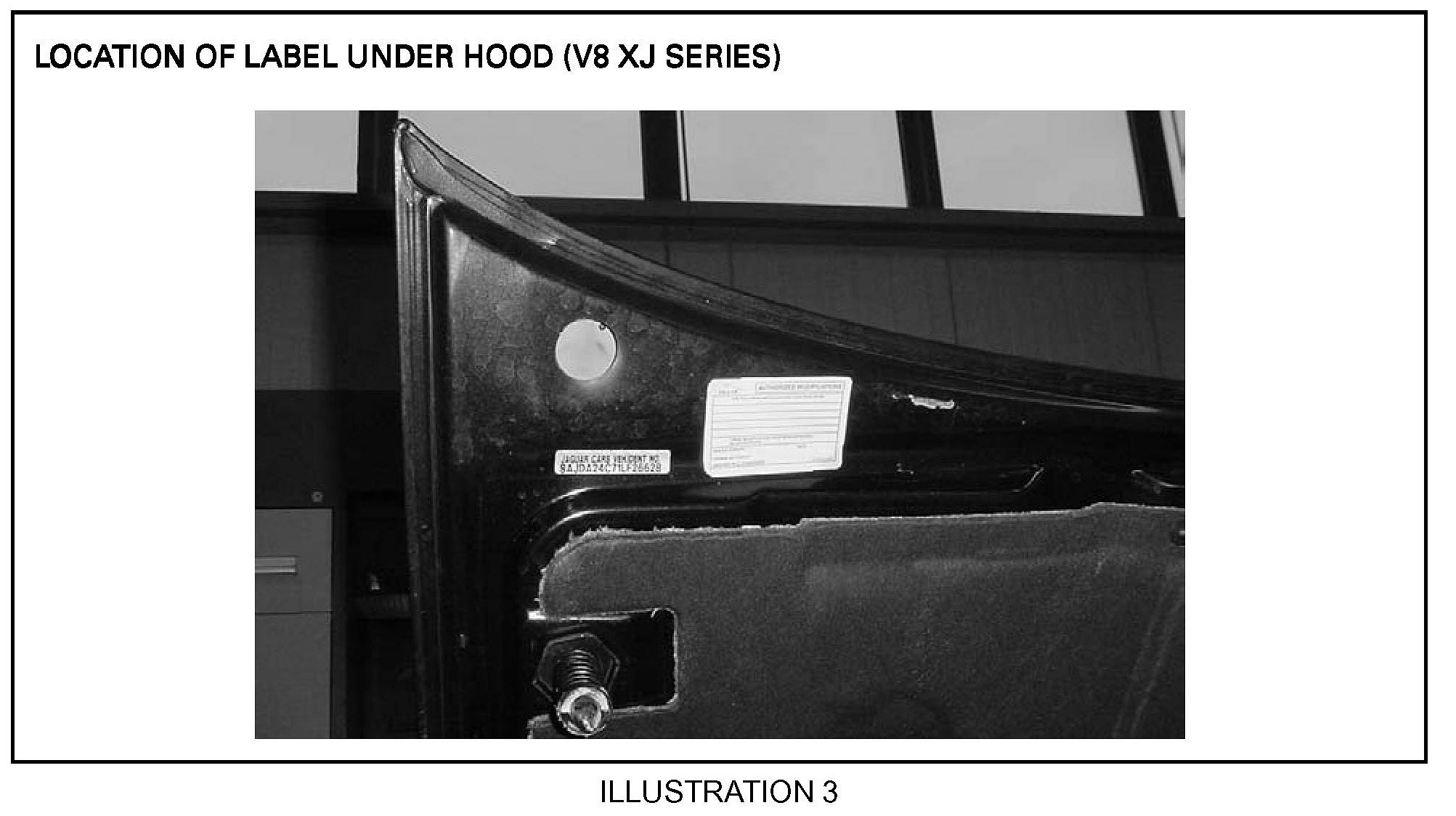

*Fill out an authorized modification label (Illustration 1), enter the dealer number and date on the authorized modification label. List any other service actions that have been performed at the same time. Apply the label to the driver door on XKR vehicles (Illustration 2) or under the hood on V8 XJ Series vehicles (Illustration 3) and apply the clear sheet over the label.*
PROOF OF CORRECTION FORM

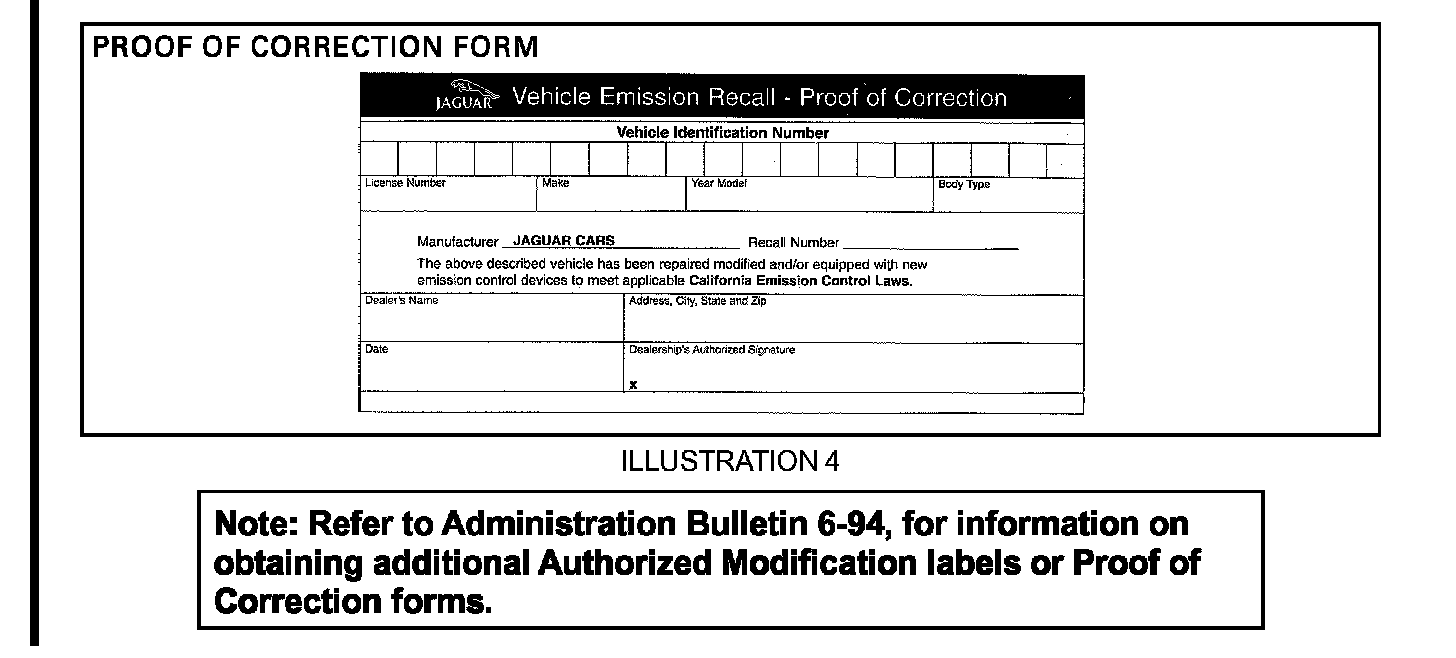

California Dealers (and any other states where required): Fill out and place the salmon colored "Vehicle Emission Recall - Proof of Correction" form (illustration 4, part no. S CAL RCL) in the vehicle glove compartment.

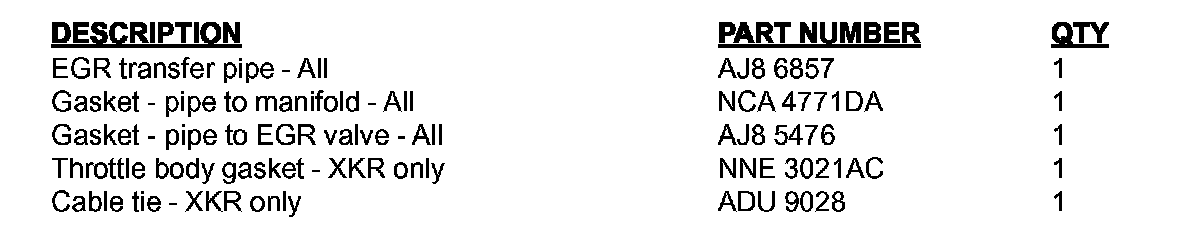

Parts Information:

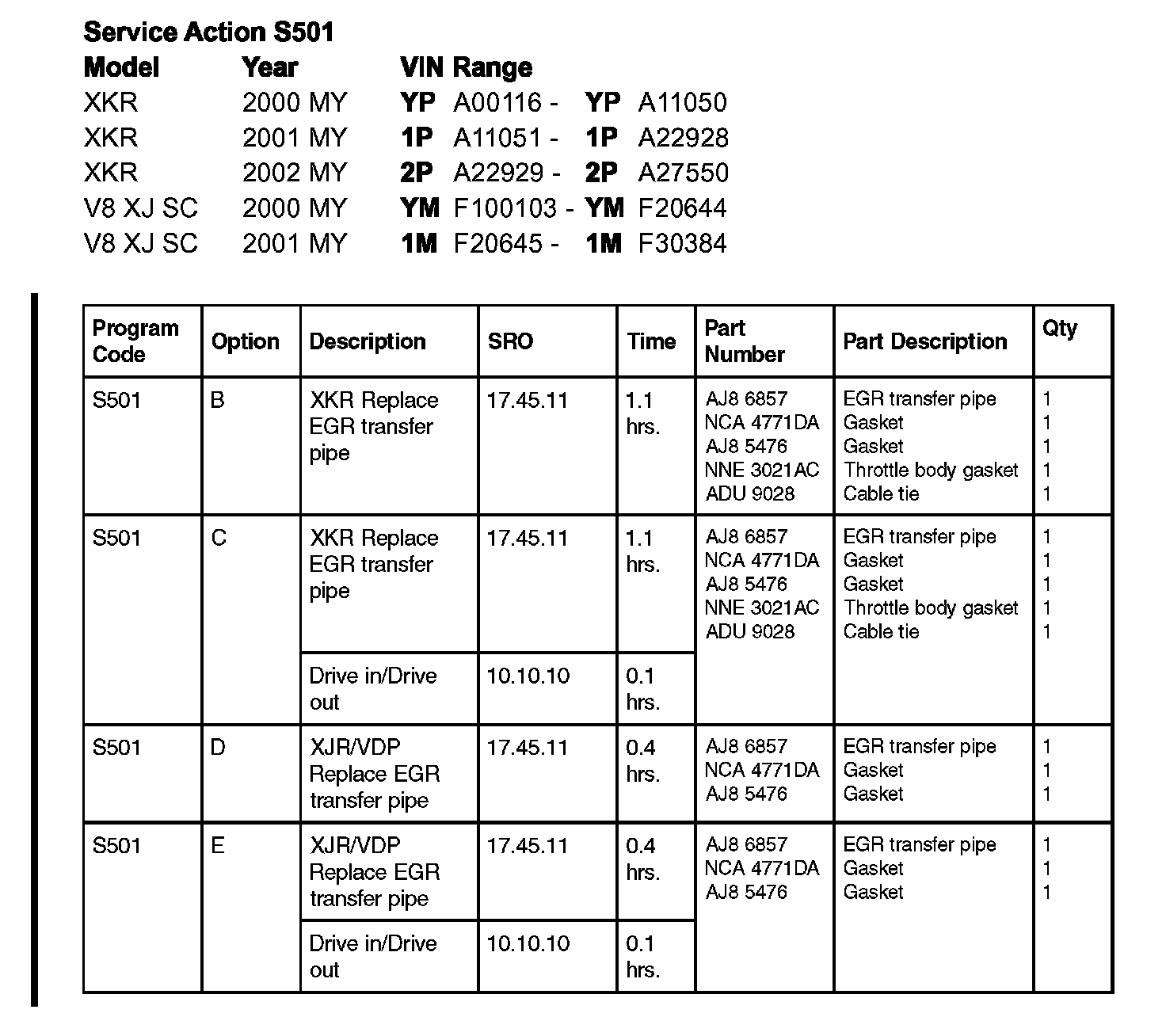

Warranty Information:
Disclaimer
