L2 Check Continuity Harness

L2 CHECK CONTINUITY HARNESS

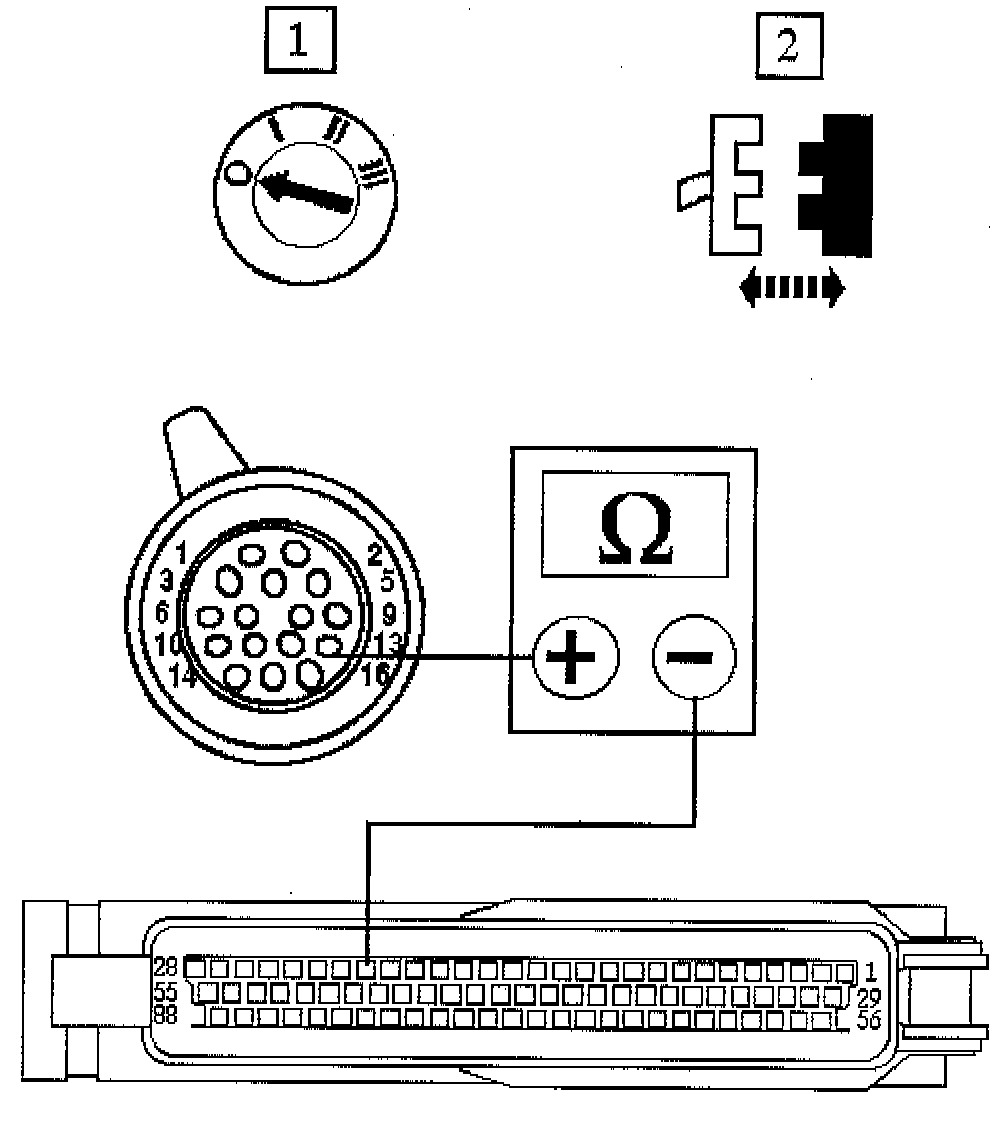

1. Turn the ignition switch to the OFF position.
2. Disconnect the harness connector.
3. With EM007 and EM046 disconnected, measure the resistance between EM007/021 and EM046/013.
4. Repeat for EM007/022 and EM046/014.
- Is the resistance less than 0.5 ohms?
Yes --> GO to [L3] L3 Check Harness Core to Core Insulation
No --> Inspect EM007 and EM046 for corrosion, bent / pushed back pins or locate and repair the harness Test the system for normal operation
