G6 Check Harness Short To Screen

G6 CHECK HARNESS SHORT TO SCREEN

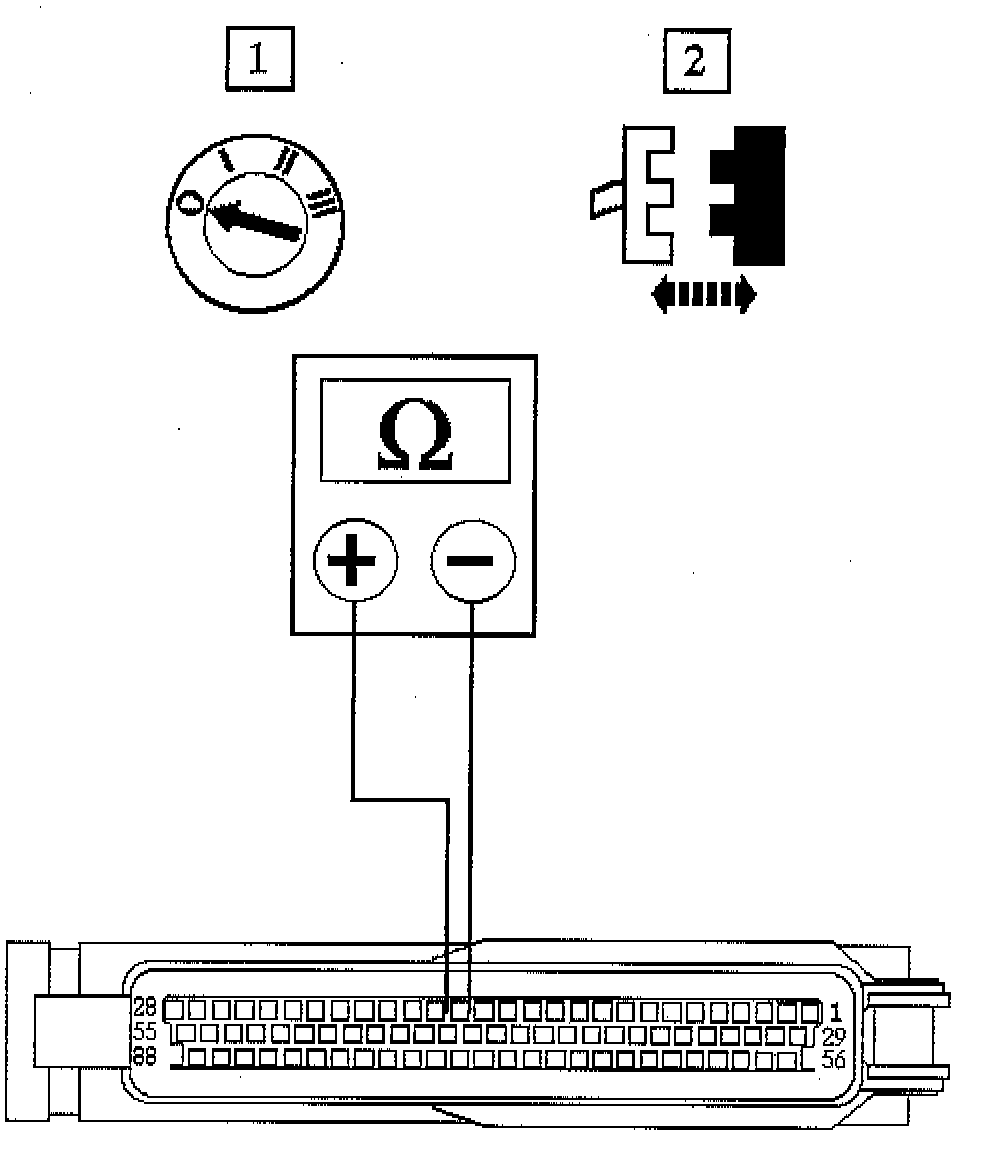

1. Turn the ignition to the OFF position.
2. Disconnect the harness connector.
3. With EM007 and EM046 disconnected, measure the insulation resistance between EM007/016 and EM007/015.
- Is the resistance greater than 10 M ohms?
Yes --> GO to [G7] G7 Check Harness Core to Core Insulation
No --> Inspect EM007 and EM046 for corrosion, bent / pushed back pins or locate and repair the harness Test the system for normal operation.
