G2 Check Harness +VE Continuity (Output Speed Sensors)

G2 CHECK HARNESS +VE CONTINUITY (OUTPUT SPEED SENSOR)

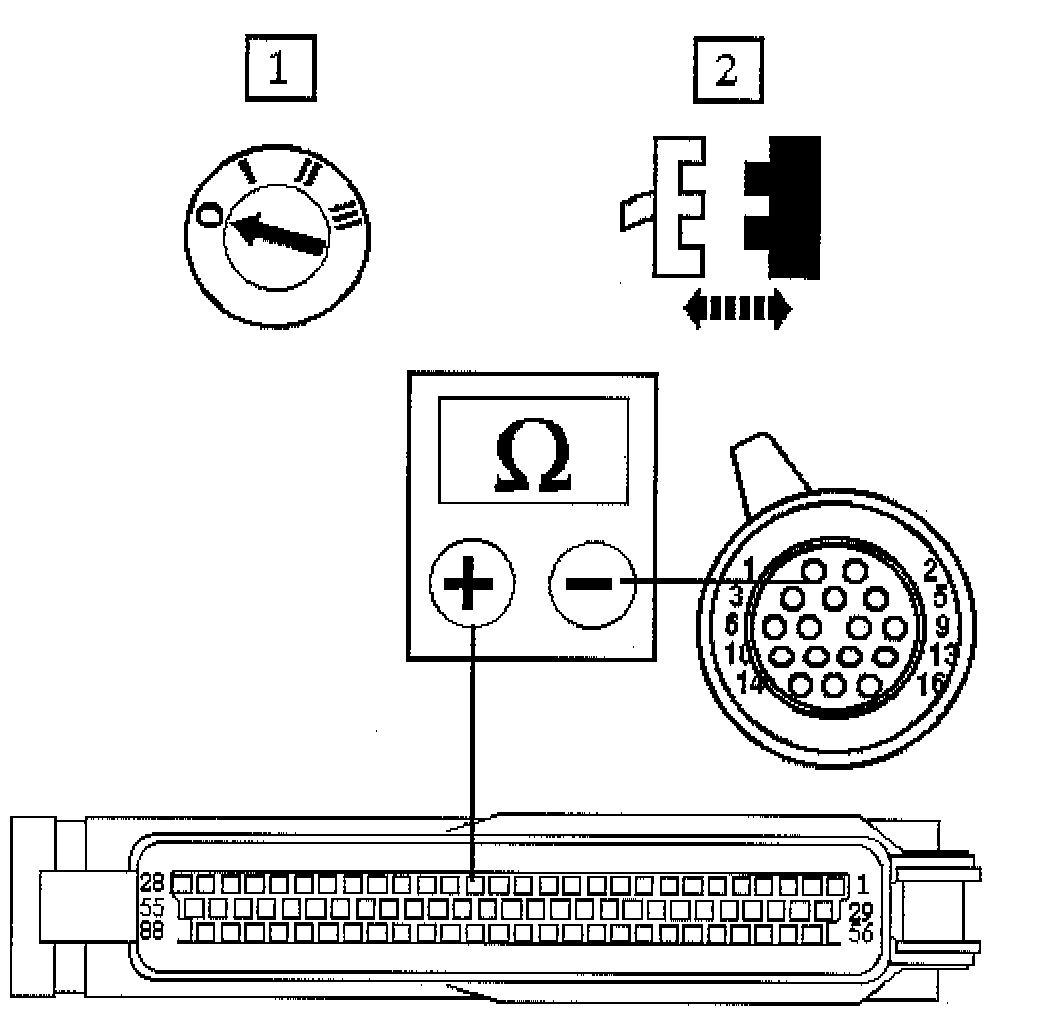

1. Turn the ignition switch to the OFF position.
2. Disconnect the harness connector.
3. With EM007 and EM046 disconnected, measure the resistance between EM046/001 and EM007/016.
- Is the resistance less than 0.5 ohms?
Yes --> Reconnect EM046, GO to [G3] G3 Check Harness -VE Continuity (Output Speed Sensors)
No --> Inspect EM007 and EM046 for corrosion, bent / pushed back pins or locate and repair the harness Testing system for normal operation
