D7 Check Harness Continuity - Pressure Regulator

D7 CHECK HARNESS CONTINUITY- PRESSURE REGULATOR

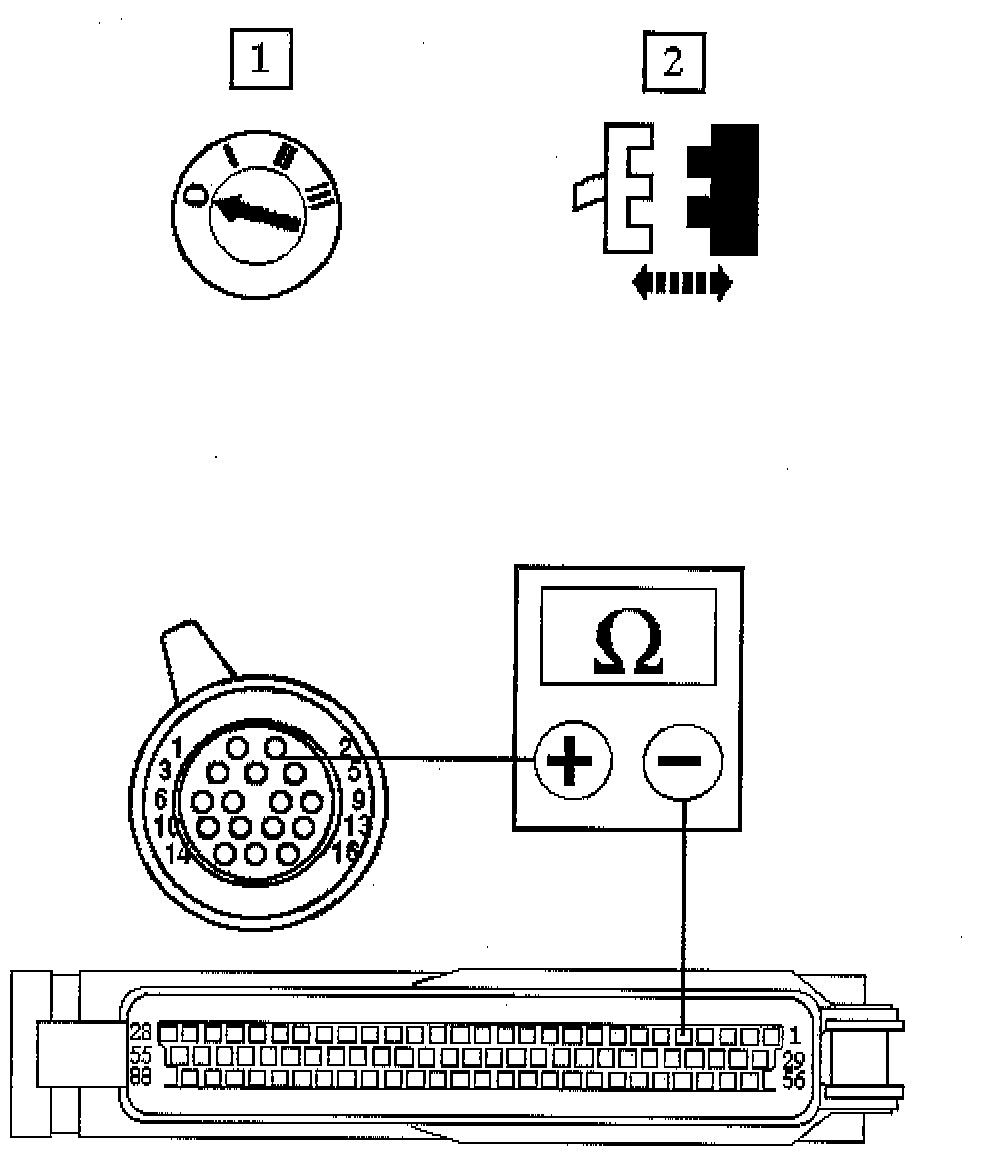

1. Turn the ignition to the OFF position.
2. Disconnect the harness connector.
3. With EM007 and EM046 disconnected, measure the resistance in turn;
4. EM007/005 and EM046/002.
5. EM007/001 and EM046/003.
6. EM007/029 and EM046/007.
7. EM007/004 and EM046/011.
8. EM007/051 and EM046/015.
- Is the resistance less than 0.5 ohms?
Yes --> GO to [D8] D8 Check For Short to B+
No --> Inspect EM007 & EM046 for corrosion, bent / pushed back pins or locate & repair the harness. Test the system for normal operation.
