D2 Check Harness +VE Continuity

D2 CHECK HARNESS +VE CONTINUITY

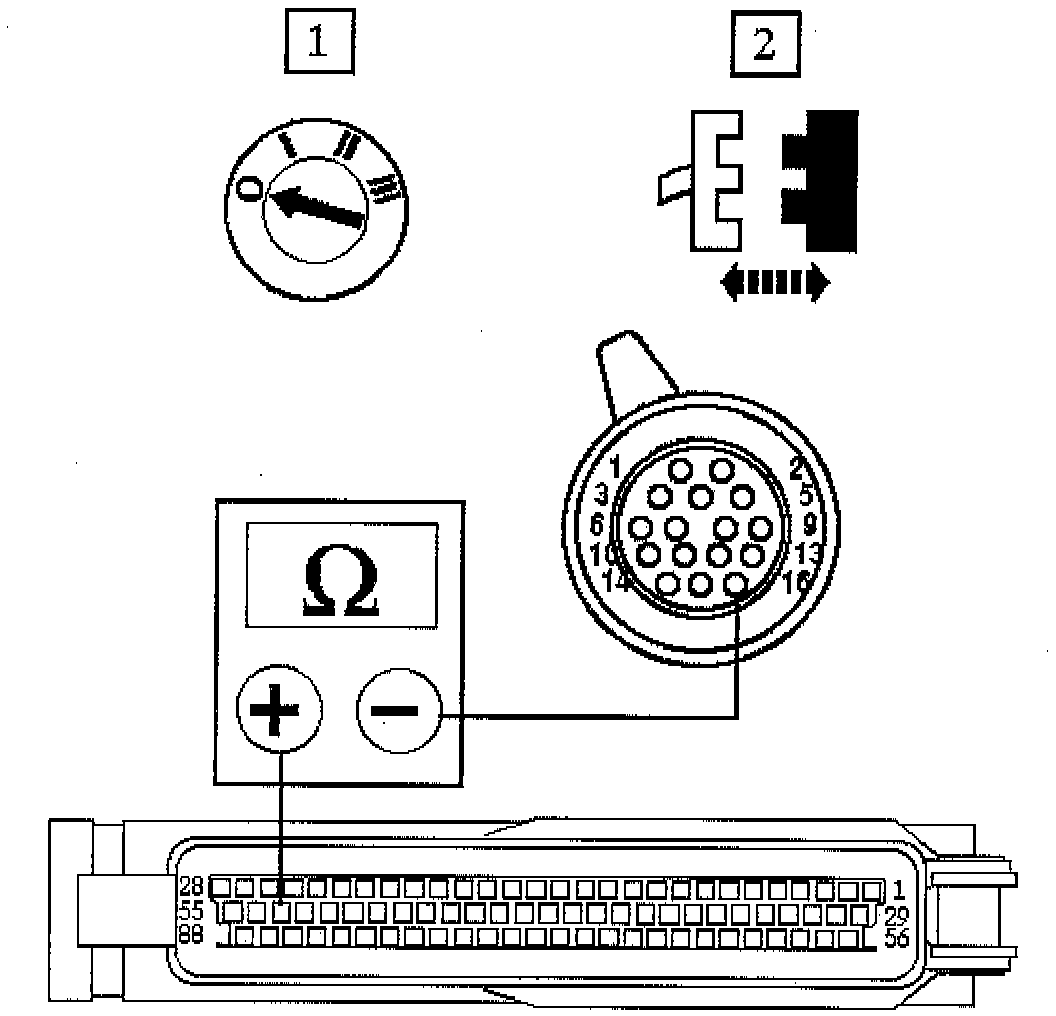

1. Turn the ignition switch to the OFF position.
2. Disconnect the harness connector.
3. With EM007 and EM046 disconnected, measure the resistance between EM046/016 and EM007/053.
- Is the resistance less than 0.5 ohms?
Yes --> GO to [D3] D3 Check Harness +VE Continuity
No --> Inspect EM007 and EM046 for corrosion, bent / pushed back pins or locate and repair the harness. Test the system for normal operation.
