D11 Check Internal Harness and Component Continuity

D11 CHECK INTERNAL HARNESS & COMPONENT CONTINUITY - PRESSURE REGULATORS

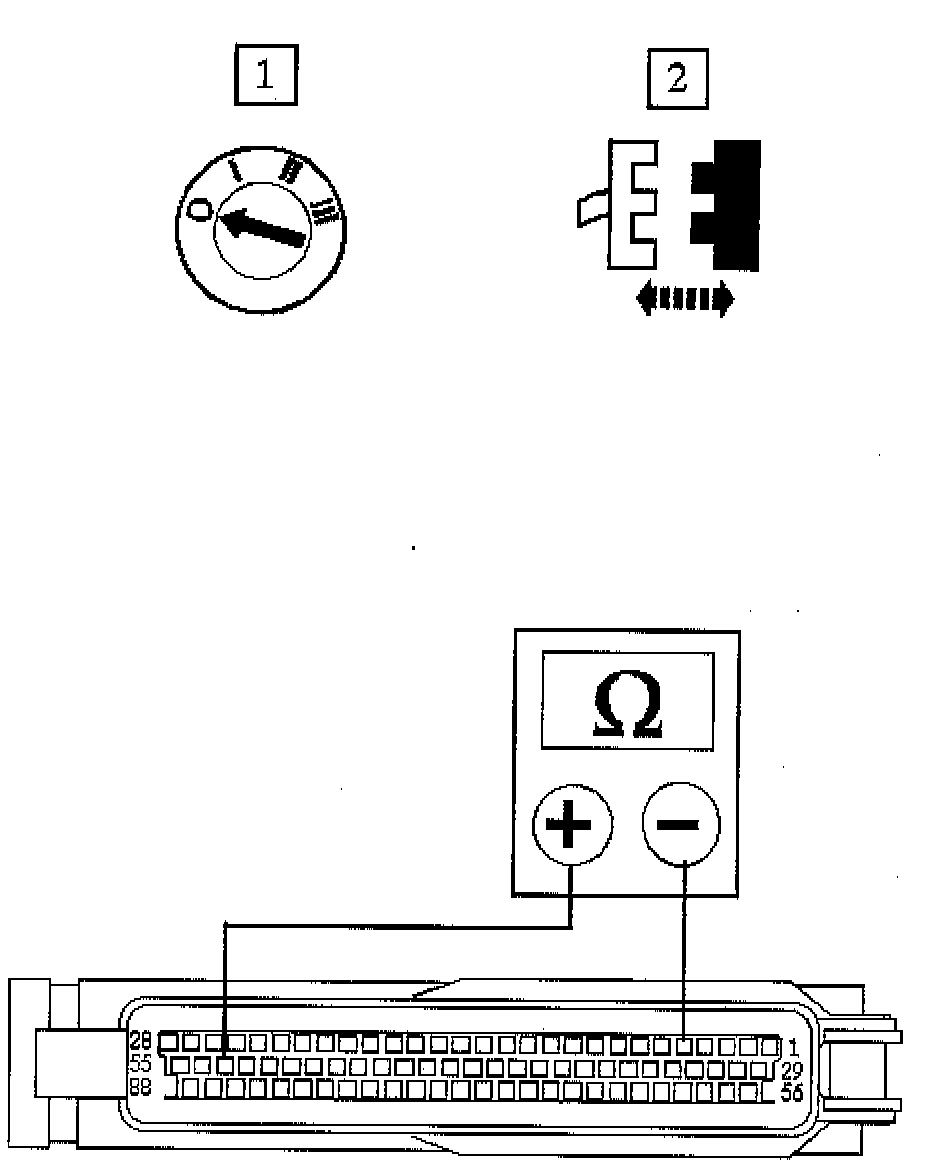

1. Turn the ignition switch to the OFF position.
2. Disconnect the harness connector.
3. With EM007 disconnected, measure the resistance between the following, noting the relevant Diagnostic Trouble Code (DTC).
4. For P0702 or P1745 EM007/53 and EM007/005
5. For P0702 or P1746 EM007/53 and EM007/001
6. For P0702 or P1747 EM007/53 and EM007/029
7. For P0702 or P0743 EM007/53 and EM007/004
8. For P0702 or P1748 EM007/53 and EM007/051
- Is the resistance 5 to 7 ohms?
Yes --> Reconnect EM007, GO to [D14] D14 End
No --> Disconnect EM046 and reconnect EM007, GO to [D12] D12 Internal Transmission Check
