B2 Check Pressure Regulator Coil Continuity

B2 CHECK PRESSURE REGULATOR COIL CONTINUITY

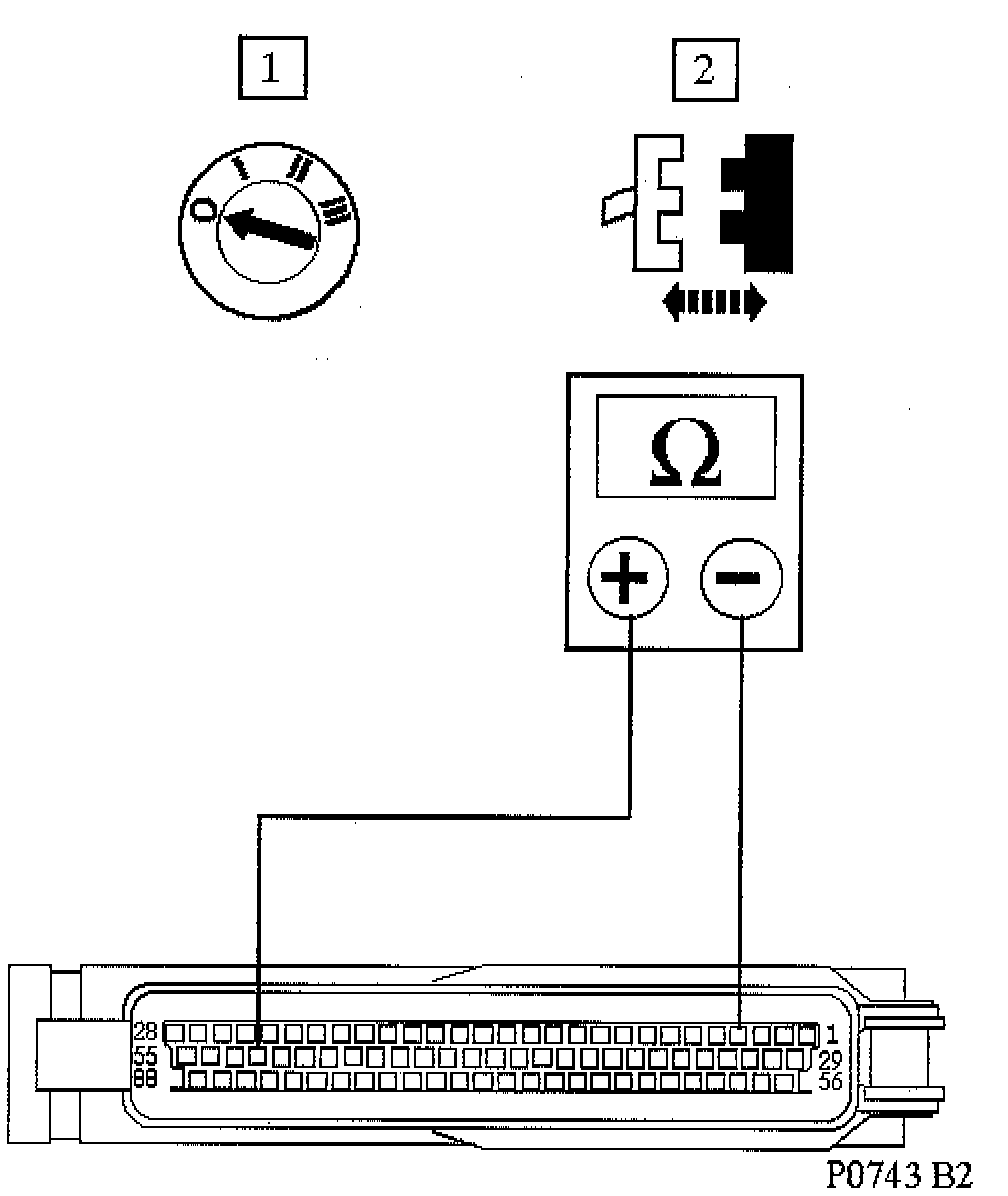

1. Turn the ignition switch to the OFF position.
2. Disconnect the harness connector.
3. With EM007 disconnected, measure the resistance between EM007/052 & EM007/004
- Is the resistance greater than 5.0 and less than 7.0 ohms ?
Yes --> GO to [B6] B6 Check For Short to B+
No --> GO to [B3] B3 Check Harness Signal Continuity
