SCP Messages Matrix

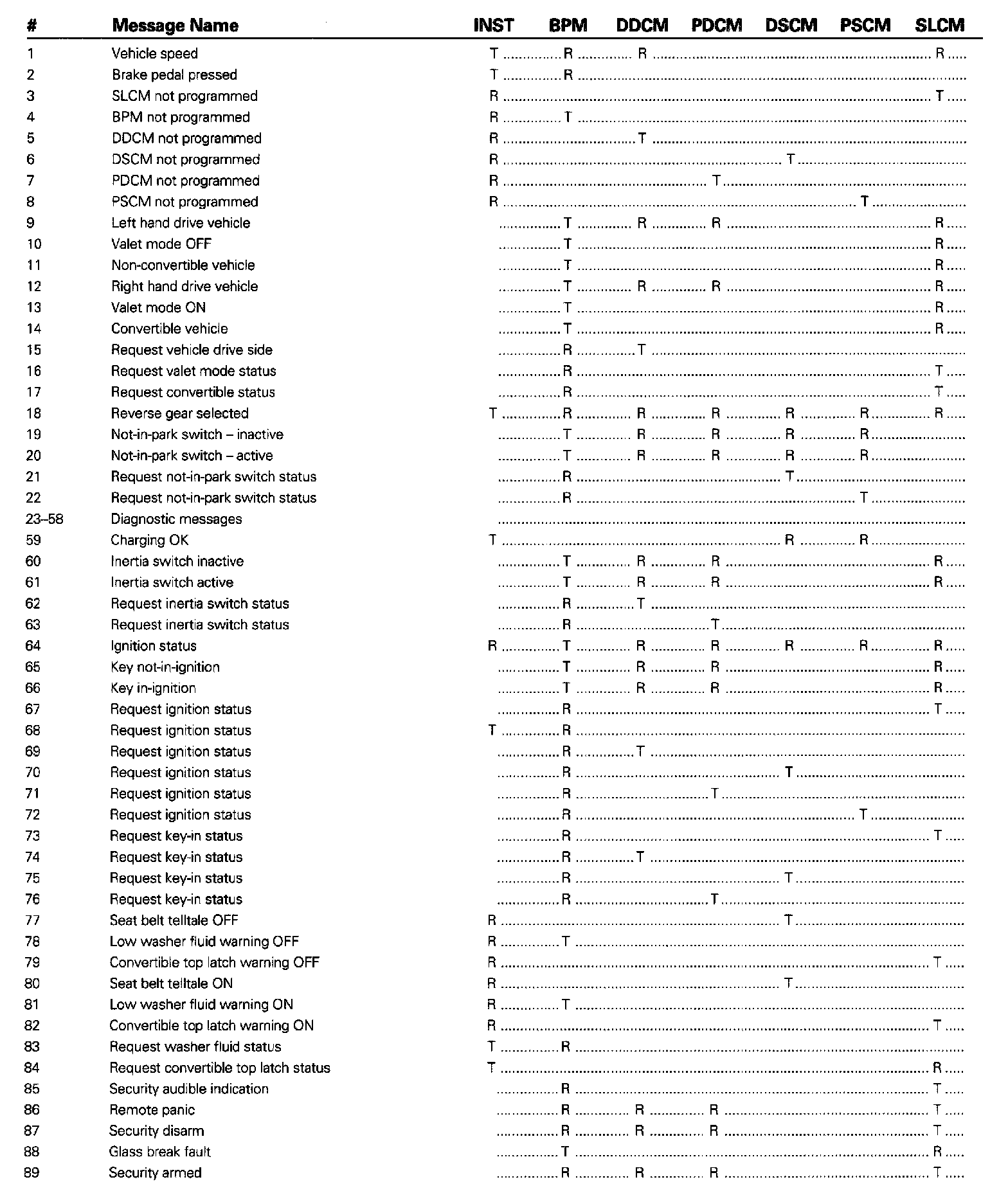

SCP Message Matrix, No. 1 - 89:

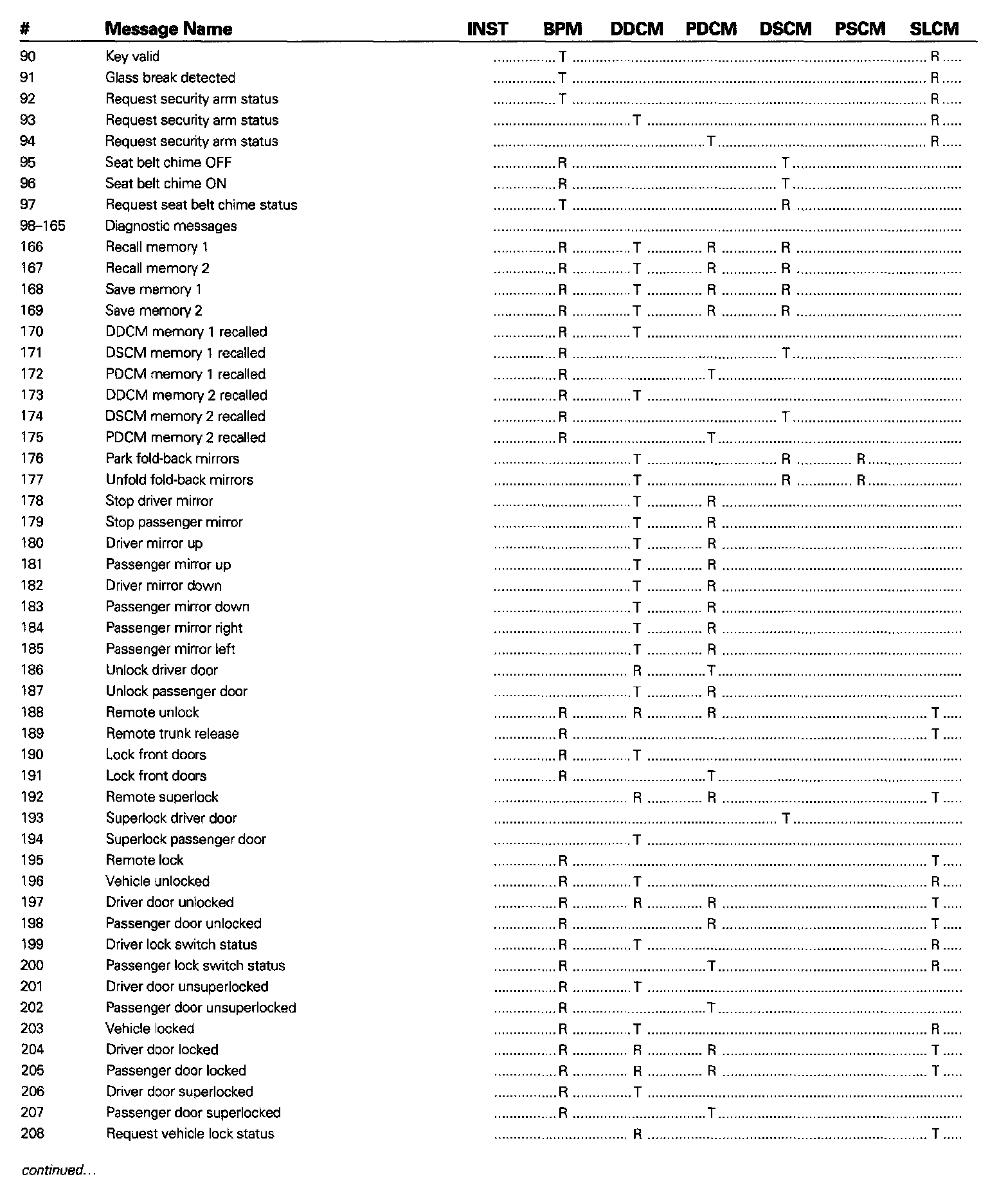

SCP Message Matrix, No. 90 - 208:

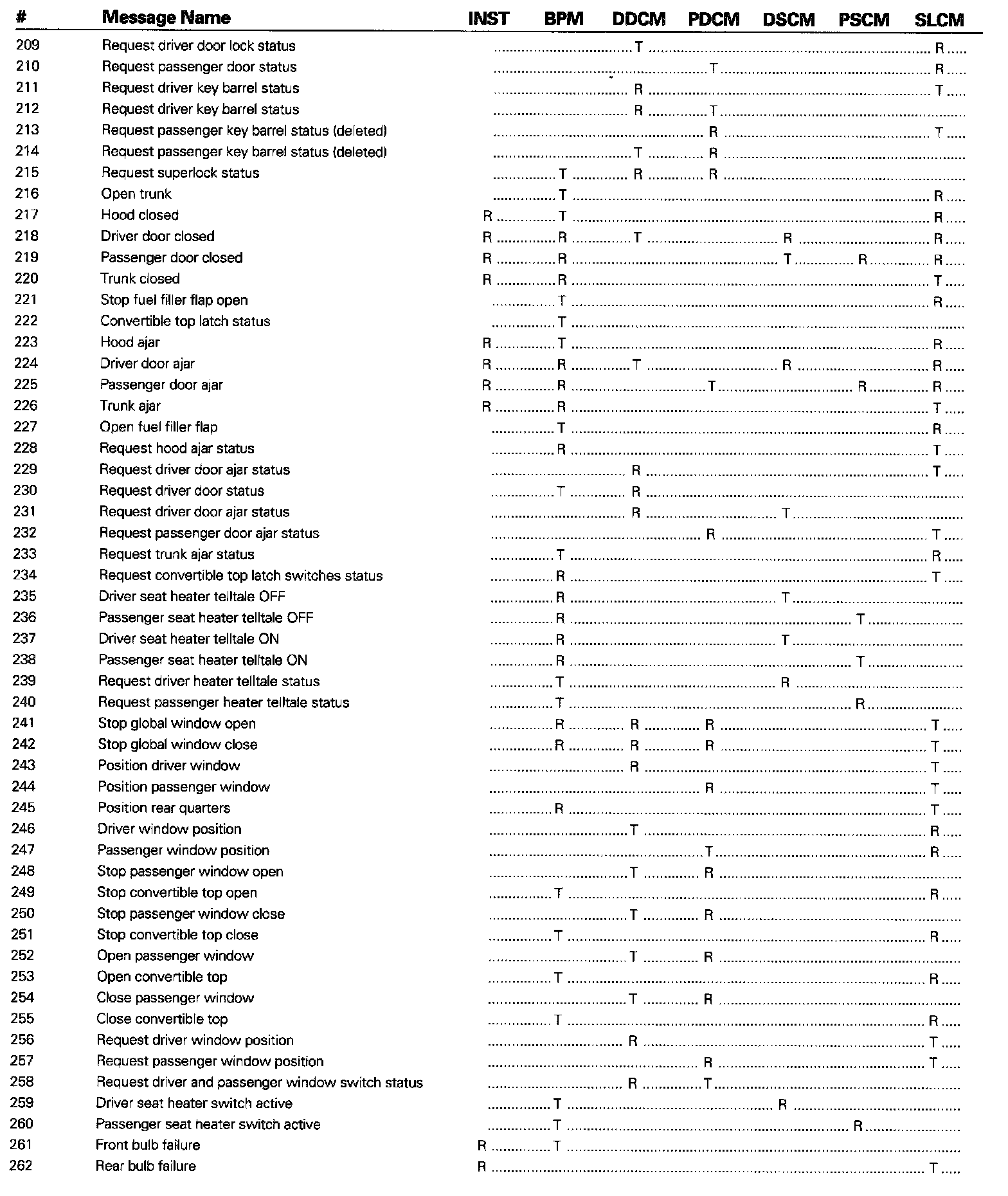

SCP Message Matrix, No. 209 - 262:

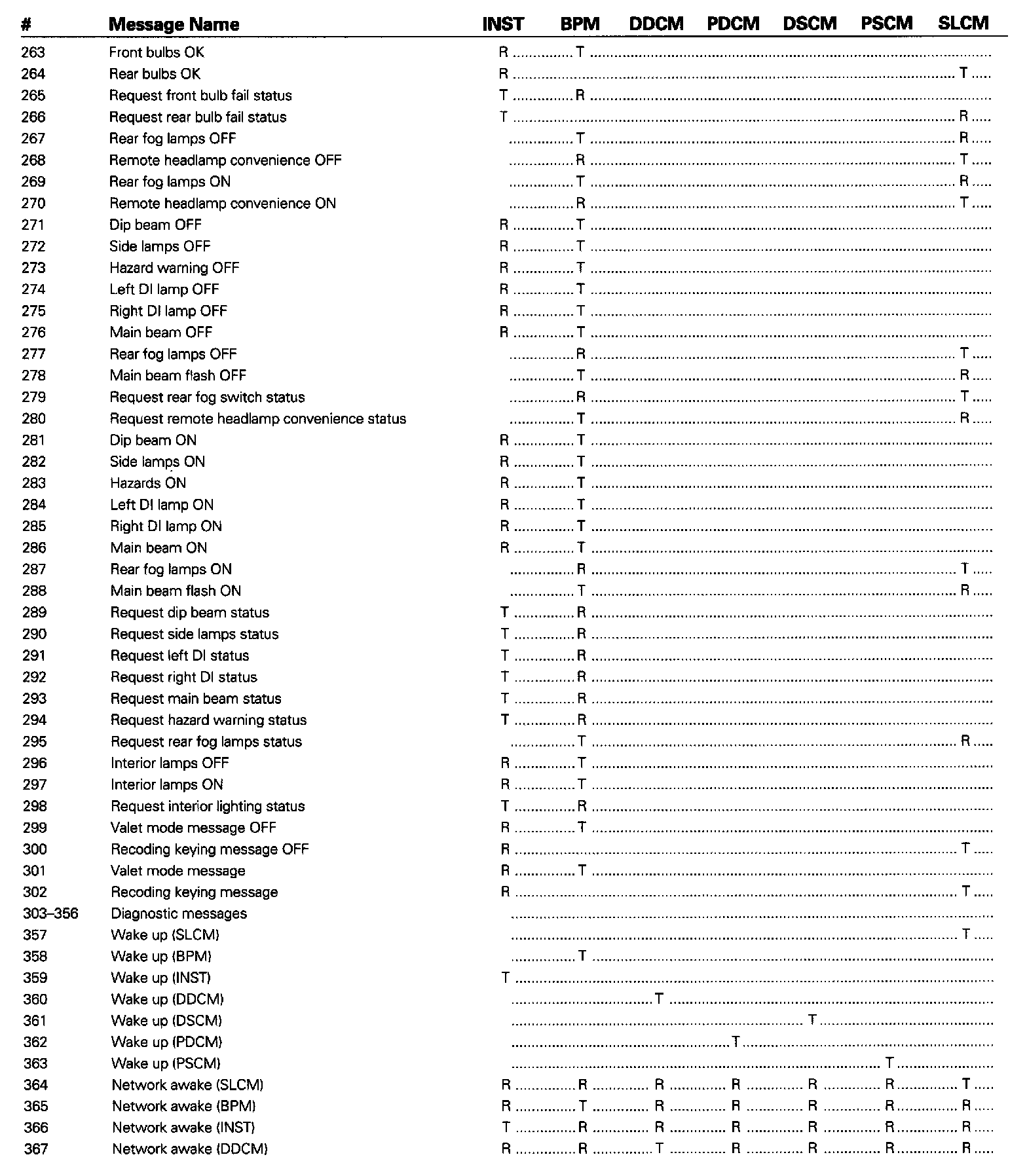

SCP Message Matrix, No. 263 - 367:

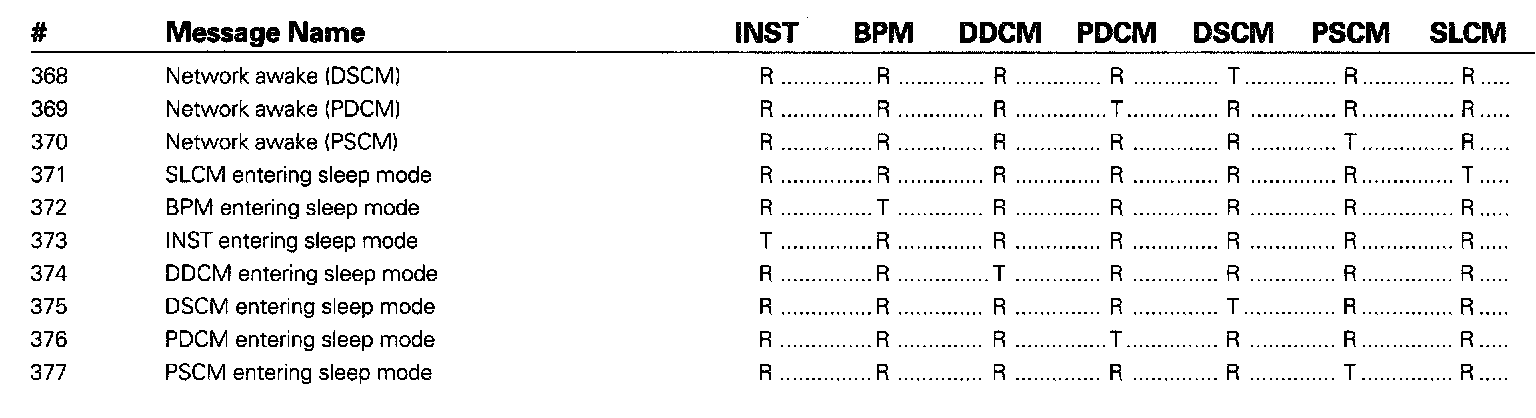

SCP Message Matrix, No. 368 - 377:
