CAN Messages Matrix
CAN Messages Matrix

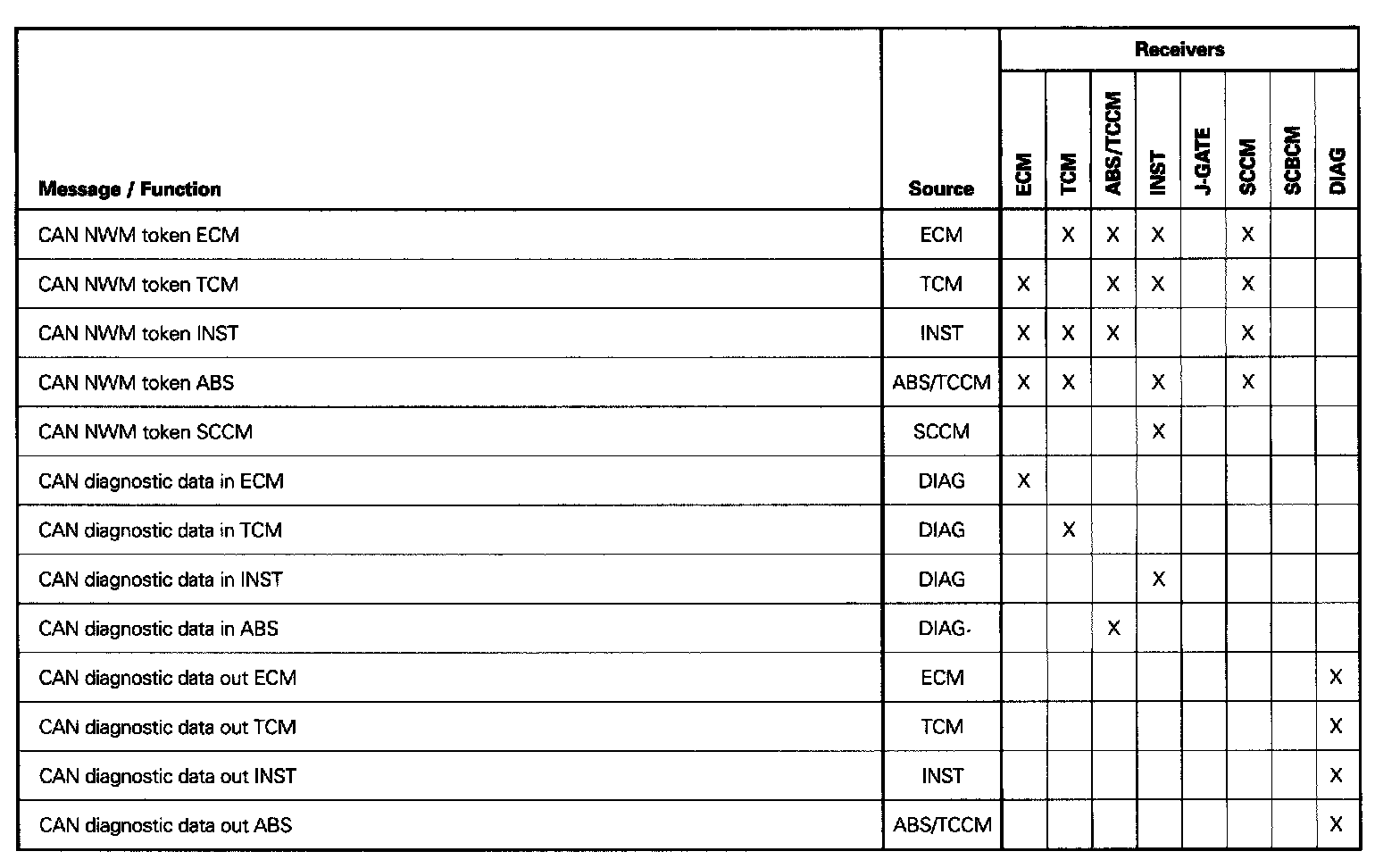

CAN Message Matrix, Part 1 Of 4:

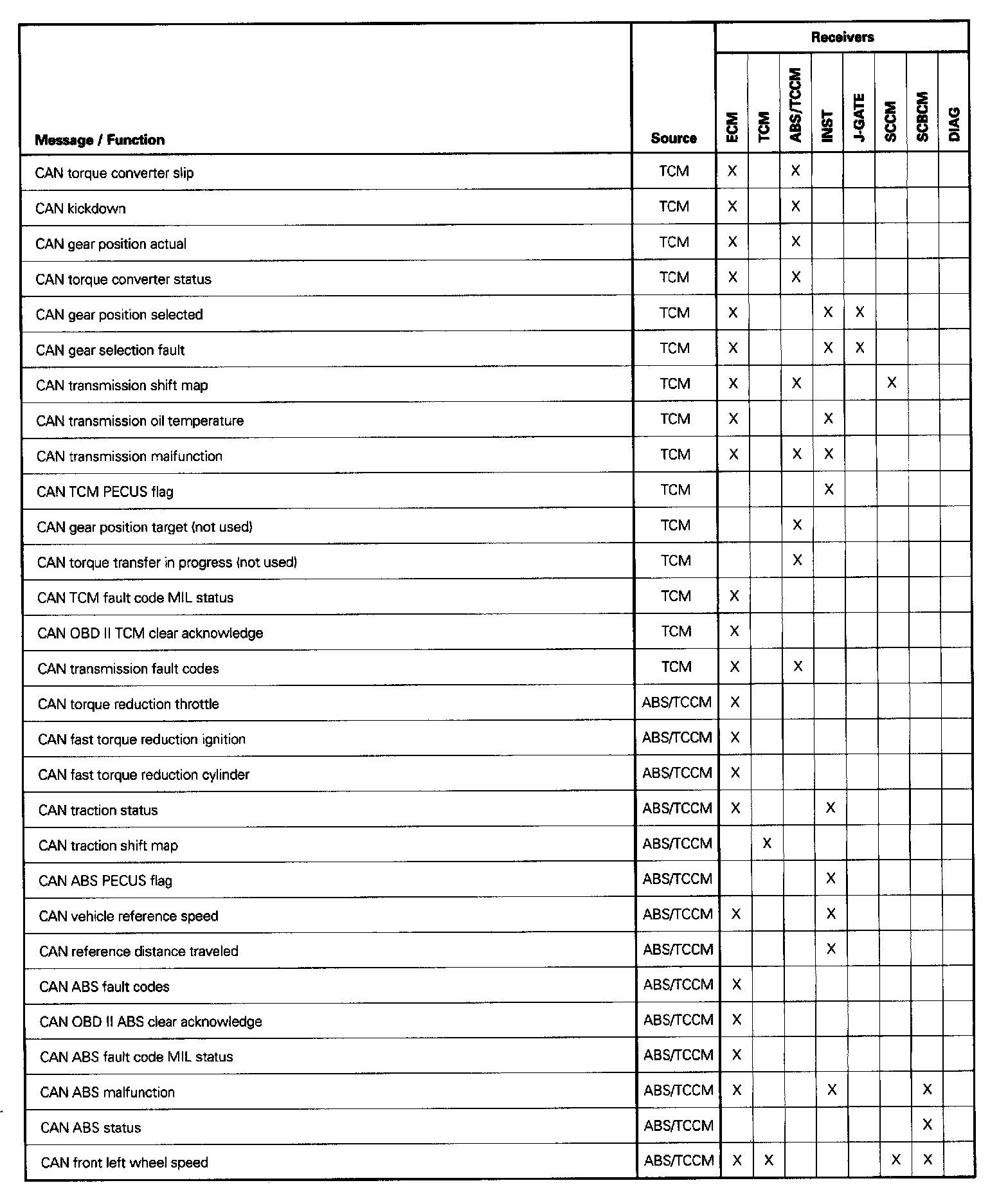

CAN Message Matrix, Part 2 Of 4:

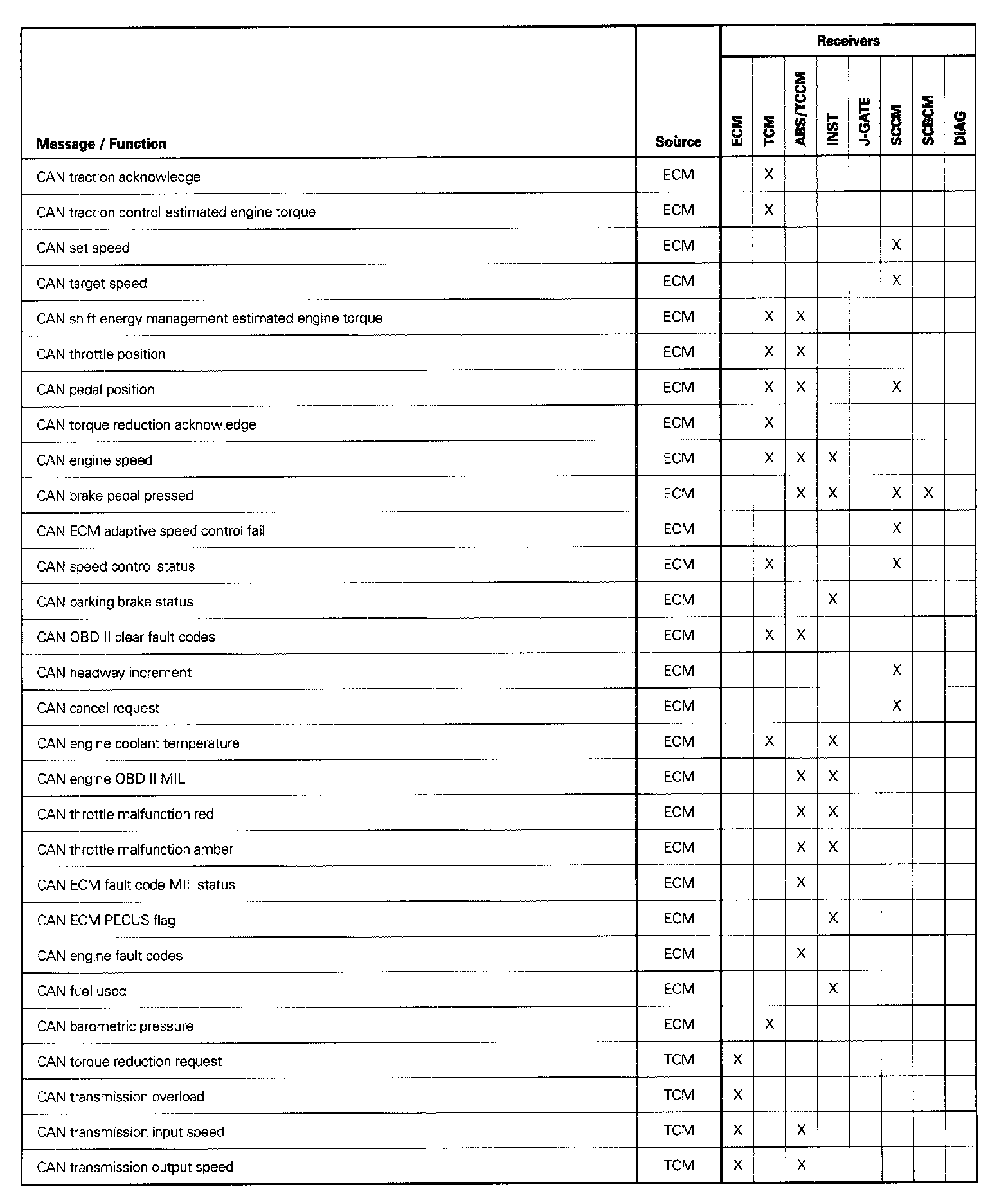

CAN Message Matrix, Part 3 Of 4:
CAN Message Matrix, Part 4 Of 4:
