Trunk, Engine Compartment and EMS Fuse Boxes

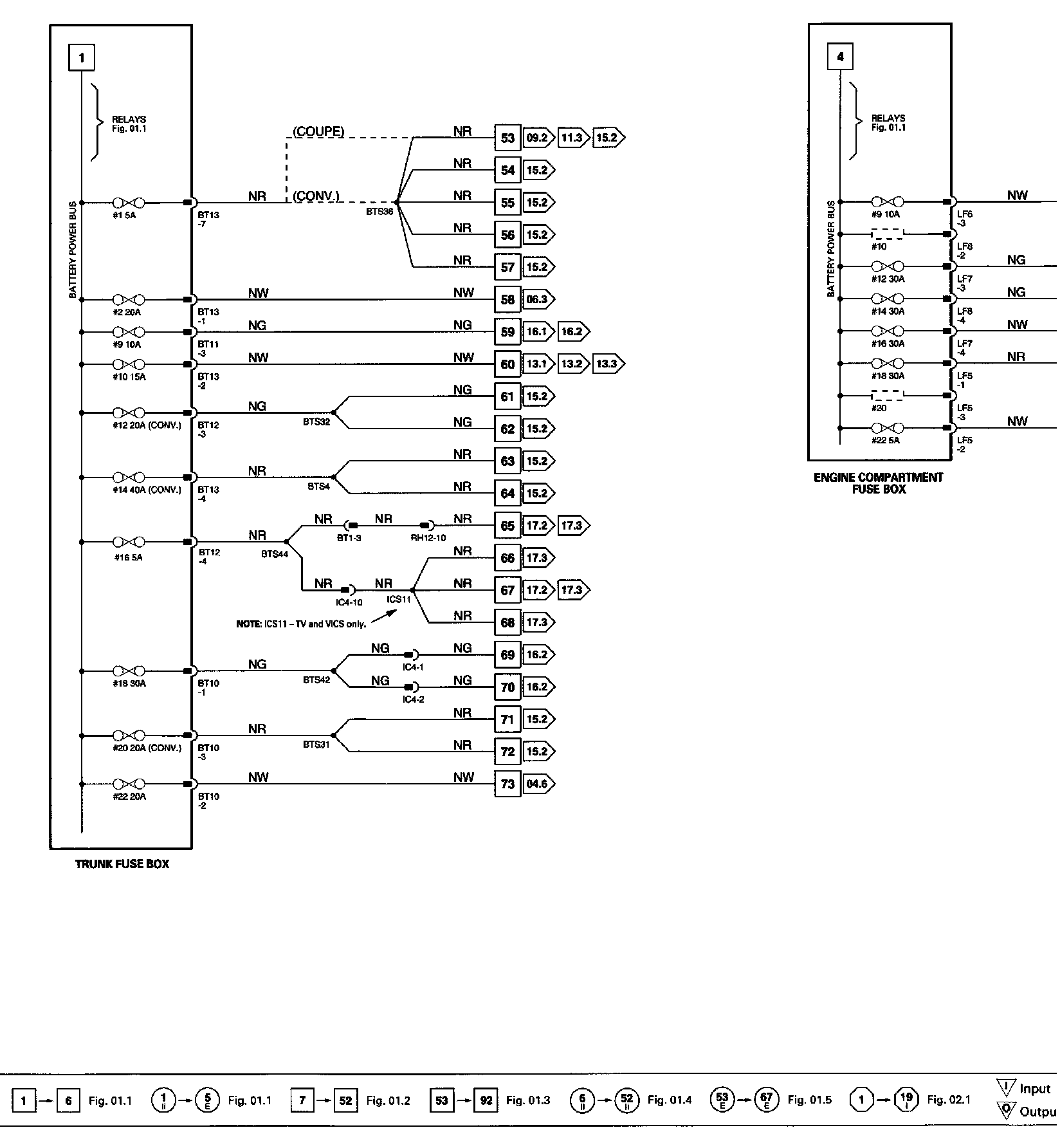

�%�Trunk/Engine Compartment/EMS Fuse Boxes - Wiring Dia.:
Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams
Components:

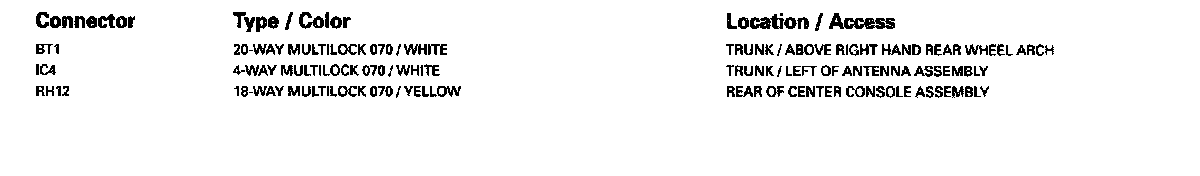

Harness-To-Harness Connectors:
