Vanity Lamp: Service and Repair

Removal
1. Rotate the sun visor down and open the vanity mirror flap.

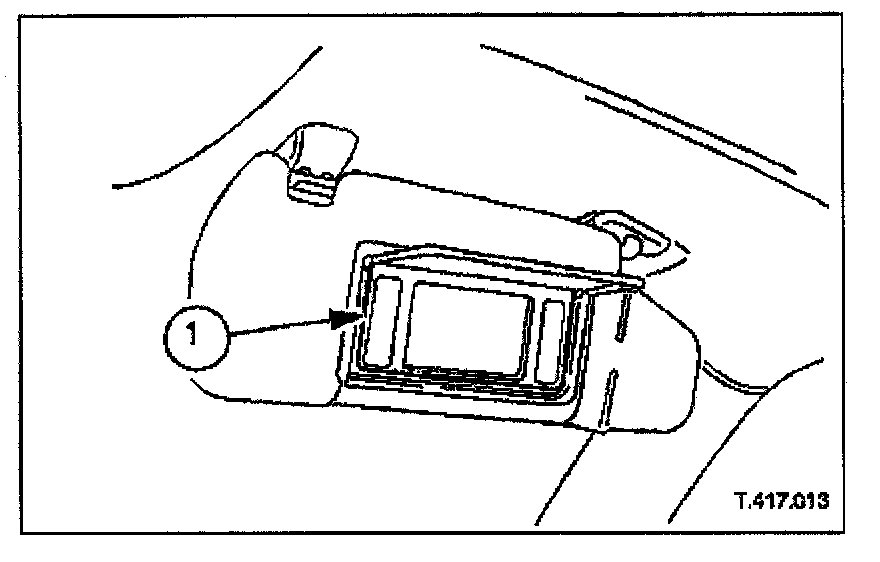

2. Remove the mirror / lens assembly.
1. Use a flat screwdriver to very carefully prise the mirror / lens assembly from the visor

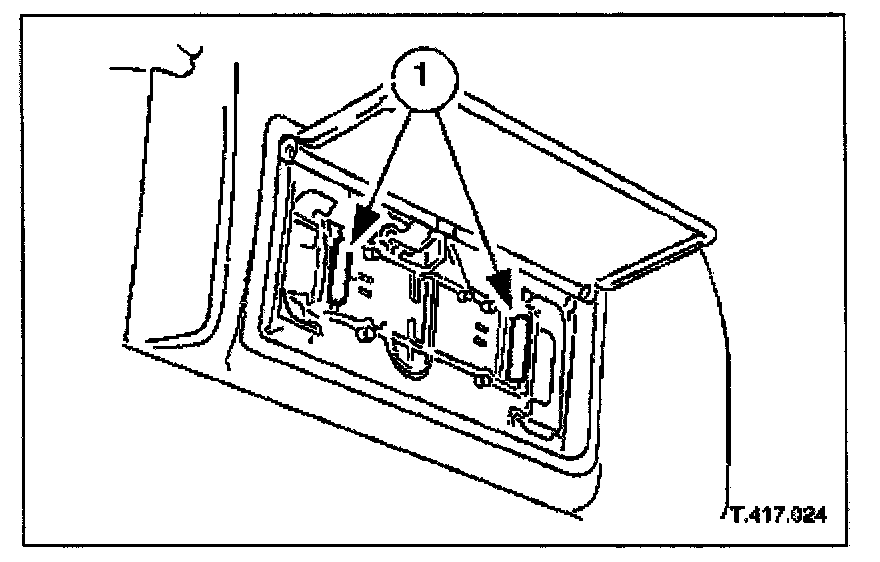

3. Remove the bulb from the vanity mirror lamp(s).
1. Remove the bulb(s) from the holder.


Installation
1. Installation is the reverse of removal.
