Side Repeater Lamp

Removal

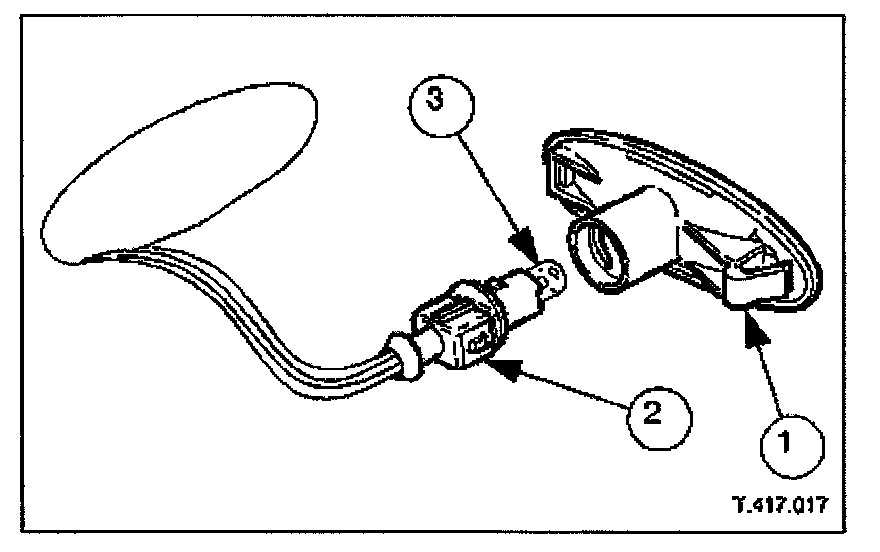

1. Remove the repeater lamp.
1. Carefully slide the lamp forward or rearward to compress one of the retaining spring clips and remove the lamp from the panel.
2. Disconnect the bulb holder from the rear of the lamp.
3. Remove the bulb from the bulb holder.

Installation
1. Installation is the reverse of removal.
