Front Direction Indicator

Removal
1. Open the engine compartment cover.

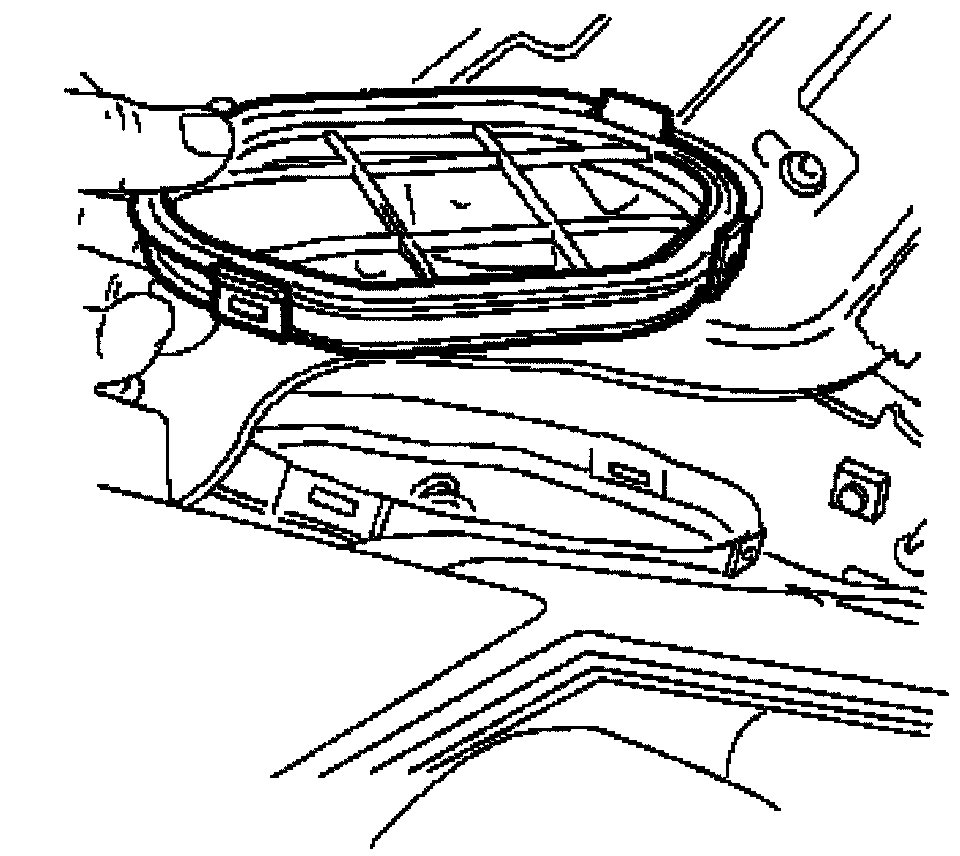

2. Remove the access cap from the closing panel.
- Squeeze the lower two clips to release the cap.







3. Remove the direction indicator bulb from the vehicle (working through access cap aperture).

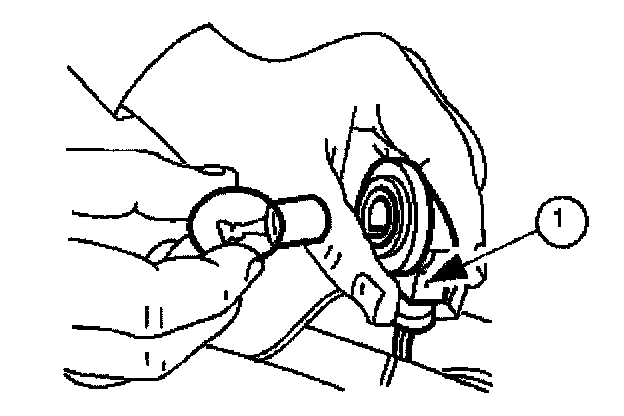

(1) Rotate the bulb holder (quarter-turn) and harness plug to remove the assembly from the lamp.
- Remove the bulb from the bulb holder assembly.

Installation
1. Installation is the reverse of removal.
- Check that the seal is in place before fitting the access cap to the closing panel.
