Turn Signal Lamp: Service and Repair

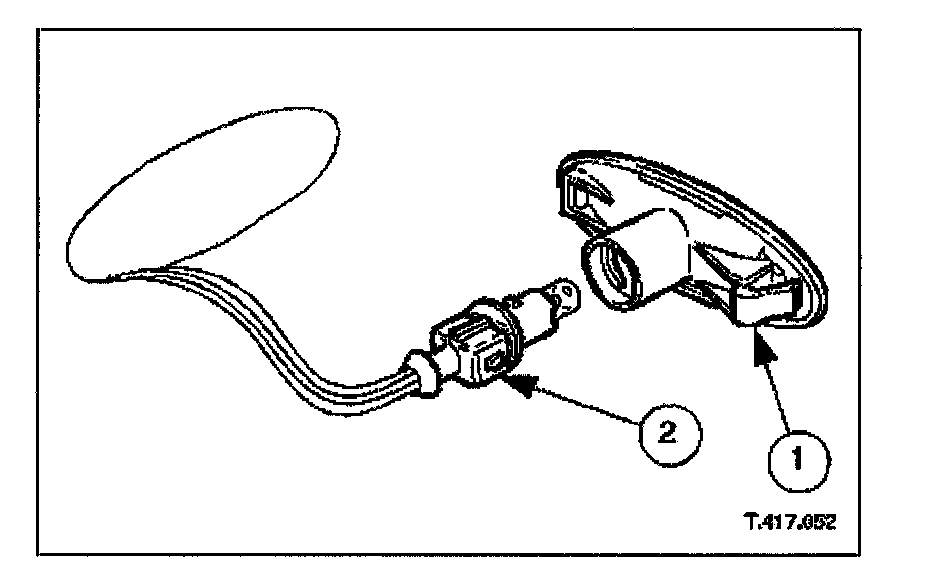

Removal, Side Repeater Lamp





1. Remove the repeater lamp.
1. Carefully slide the lamp forward or rearward to compress one of the retaining spring clips and remove the lamp from the panel.
2. Disconnect the connector from the rear of the lamp.


Installation
1. Installation is the reverse of removal.
