Trunk Light Bulb: Service and Repair

Removal

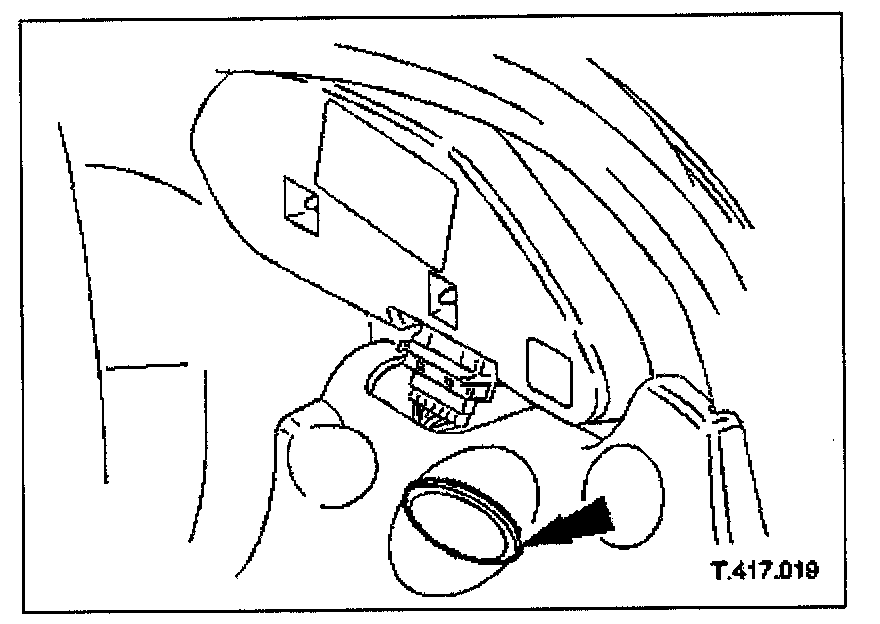

1. Carefully pry the lamp from the luggage compartment trim panel.







2. Remove the bulb.

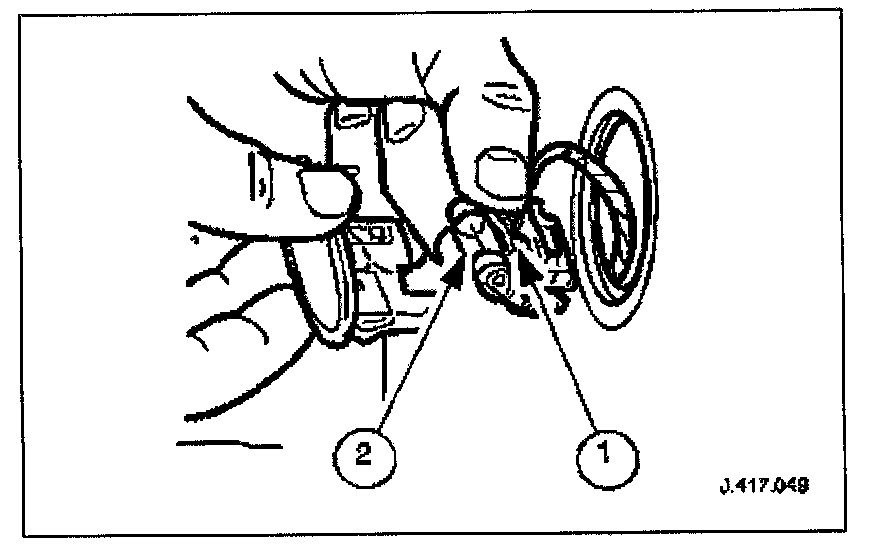

1. Squeeze the lens retaining lugs, located one each side of the bulb, and remove the lens.
2. Remove the bulb.

Installation
1. Installation is the reverse of removal.
