Trunk Lamp: Service and Repair

Removal
1. Open trunk lid.

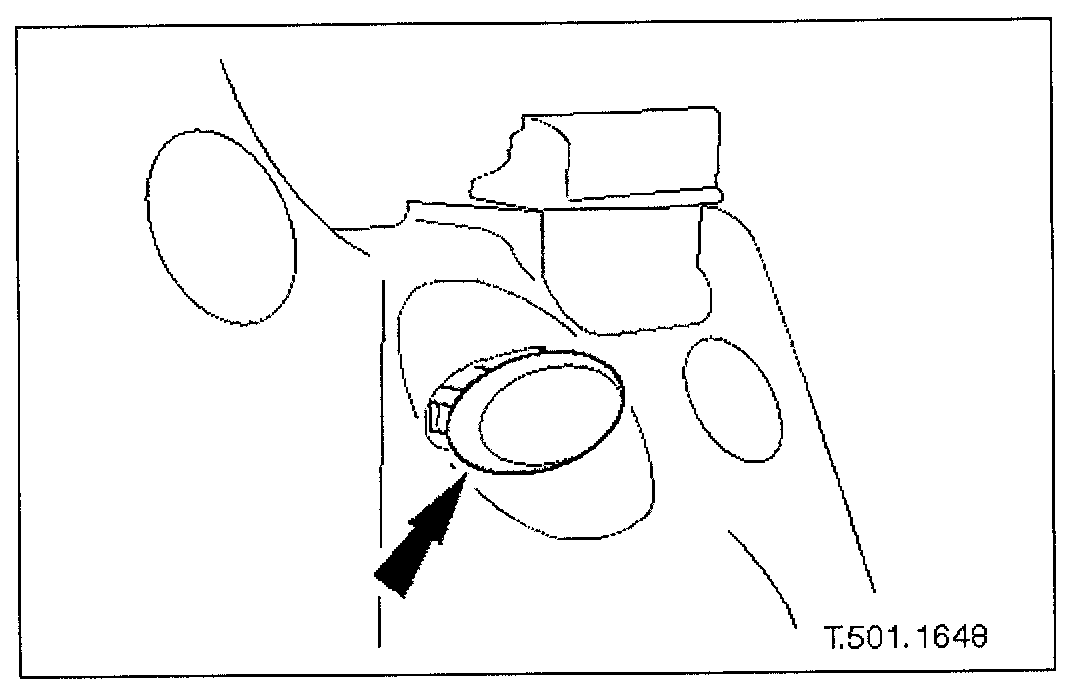

2. Using a thin plastic lever, carefully release lamp retaining tangs from trunk rear finisher.

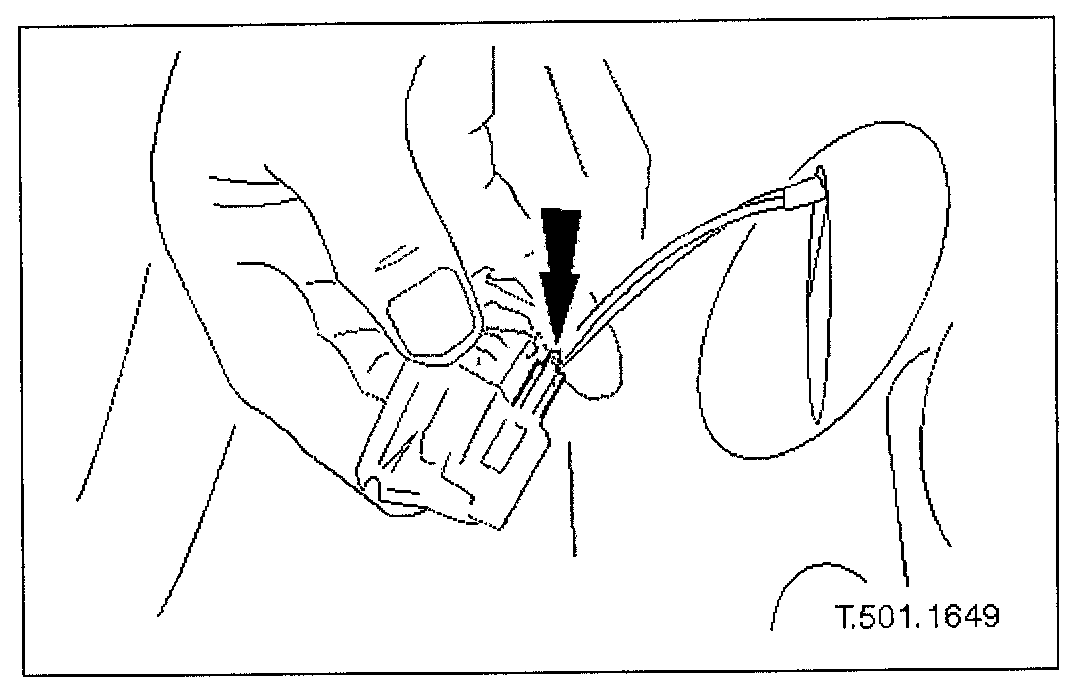

3. Withdraw lamp for access and disconnect harness.

Installation
1. Position lamp for access and connect harness multiplug.
2. Install and fully seat lamp assembly on trunk rear finisher ensuring that retaining tangs correctly engage.
3. Close trunk lid.
