Tail Light Bulb: Service and Repair

Removal
1. Open the luggage compartment lid.

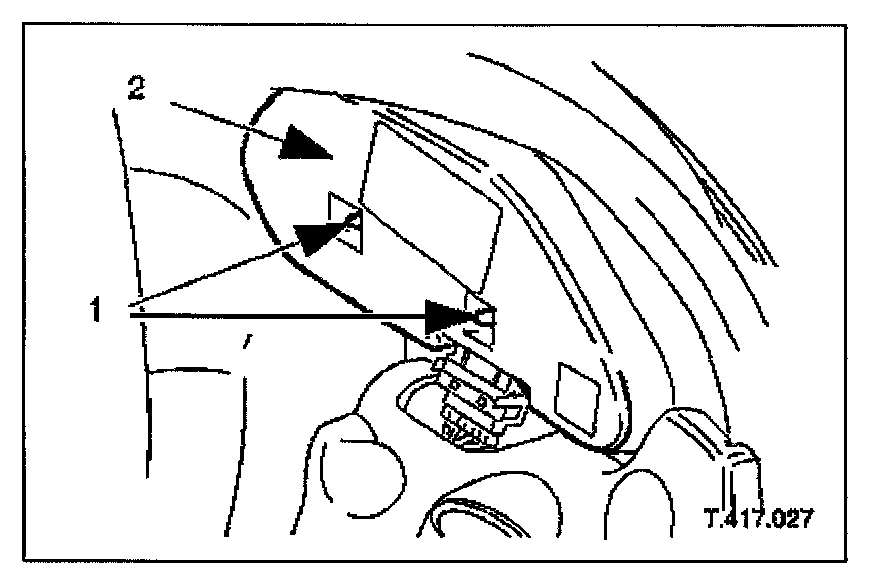

2. Remove the bulb holder assembly.
1. Release the two clips which secure the bulb holder.
2. Remove and reposition the bulb holder, for access to the bulbs.

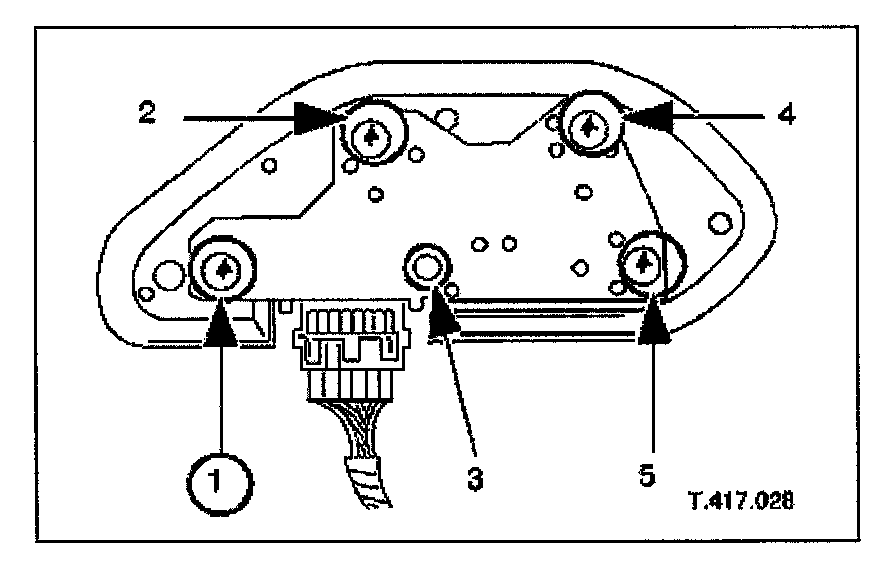

3. Remove the bulb(s) as required.
1 Fog - Rear Guard.
2 Reverse.
3 Tail.
4 Direction Indicator.
5 Stop.

Installation
1. Installation is the reverse of removal.
